Ubiquiti Networks Horn Antenna Horn-5-60 PrismAP 5GHz 60 degrees with Isolation Antenna

Horn-5-60

Ubiquiti
Ubiquiti Networks Horn Antenna Horn-5-60 PrismAP 5GHz 60 degrees with Isolation Antenna


Product Highlights
  • Ubiquiti Horn 5 60 PrismAP-5-60 PrismAP 5GHz Beamwidth Isolation Horn Antenna 60deg
  • With a range of different beam widths, the isolation antennas are interchangeable and feature high-performance beam patterns ideal for a range of deployment needs.
  • Used with the airFiber LTU and airMAX radios, these antennas deliver superb co-location performance without sacrificing gain.
  • The isolation antennas are interchangeable and feature high-performance beam patterns for a range of demanding deployment needs.
  • Gain: 16dBi
  • Model#: Horn-5-60

    Sku: IT2187.6703.146594



    MSRP: $99.99

    In Stock

    Your Price: $89.00




    Model: Horn-5-60  (PrismAP-5-60)

                                               Horn 5

                               5 GHz Beamwidth Antenna

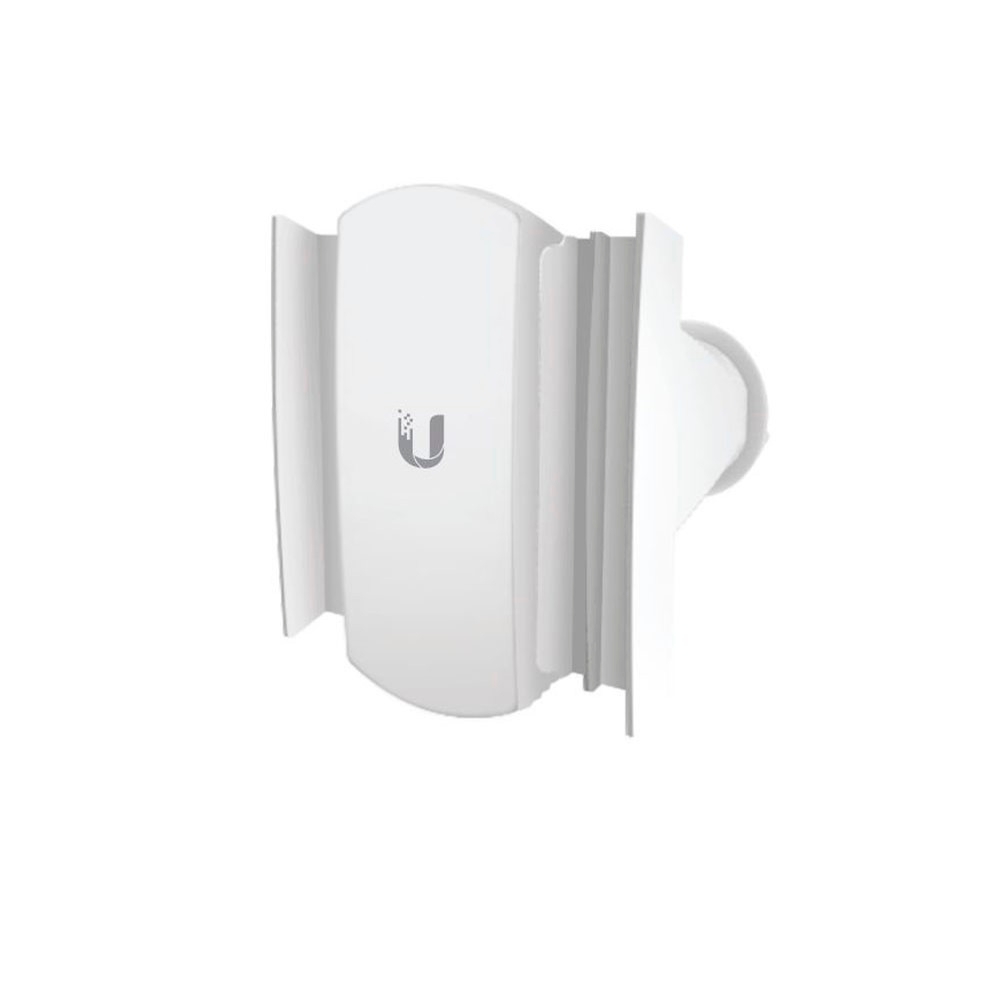

    The Ubiquiti Networks PrismAP-5-60 is a 60° 5GHz Horn Antenna designed to be used with PrismStation or IsoStation radios. It is easily attached, with a locking mechanism instead of using connectors.

    With a range of different beam widths, the isolation antennas are interchangeable and feature high-performance beam patterns ideal for a range of deployment needs. Used with the airFiber LTU and airMAX radios, these antennas deliver superb co-location performance without sacrificing gain.


    • Modular Design

    The isolation antennas are interchangeable and feature high-performance beam patterns for a range of demanding deployment needs. Combined with the PrismStation 5AC or airFiber LTU radio, the system gets maximum gain out of the smallest footprint.

    • Symmetrical horn antenna

    30° and 45° versions offer breakthrough scalability options for wireless systems. Unique beam performance and great co-location characteristics allow for a higher density of sectors than traditional sector technology.

    • Asymmetrical horn antennas

    60° and 90° versions have naturally attenuated side lobes and extremely low back radiation. They offer the best front-to-back ratio in the industry and the lowest side lobe radiation. Asymmetrical horn antennas are ideal for cluster sector installations with high co-location requirements.

    Product Specifications
    • Dimensions: 152.1 x 186.8 x 113.2mm
    • Weight: 0.92kg
    • Operating Frequency: 5.15 to 5.85GHz
    • Gain: 16dBi
    • HPOL Beam Angle: 60°
    • VPOL: Beam Angle: 60°
    • Polarization: Dual-linear
    • Cross-Pol Insulation: 17dB
