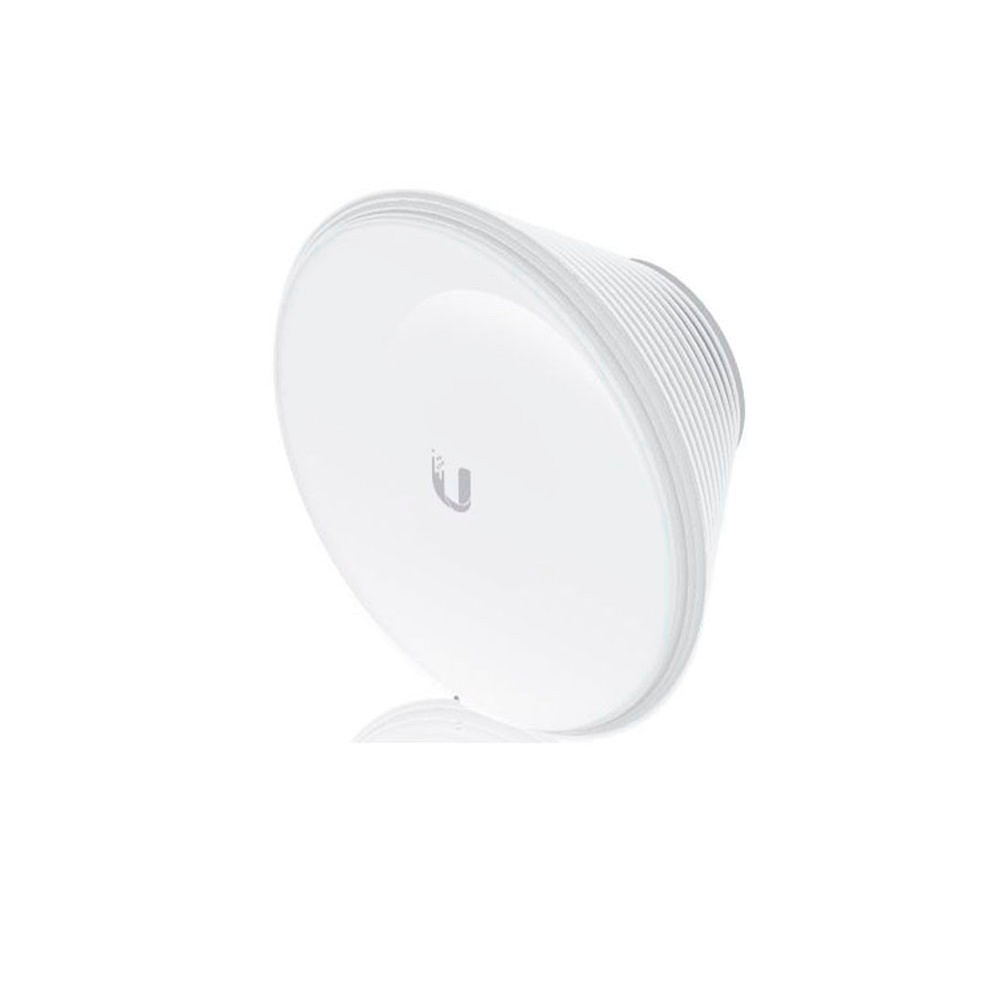

Ubiquiti Networks Horn Antenna Horn-5-45 PrismAP 5GHz 45 degrees with Isolation Antenna

Product Highlights
  • 5 GHz
  • 15.5 dBi
  • Works with PrismAP
  • Model#: Horn-5-45

    Sku: IT2186

    MSRP: $79.99

    In Stock

    Your Price: $79.99

    Model: Horn-5-45  (PrismAP-5-45)

    Ubiquiti airMAX 5GHz, 45deg, 15dBi Isolation Horn Antenna

    Ubiquiti Networks launches a new family of beamwidth isolation horn antennas.

    Modular Design

    With flexible sectorization for optional antenna beamwidths, the horn antennas are interchangeable and improve beam-shaping for specific deployment and environment needs. Sector horn antennas are designed to increase co-location performance without sacrificing gain.


    There are two symmetrical horn antennas:

    • Horn-5-30: 30° beamwidth
    • Horn-5-45: 45° beamwidth

    These models offer breakthrough scalability options for wireless systems. Unique beam performance and great co-location characteristics allow for a higher density of sectors than traditional sector technology.


    The horn antennas can be used with the following radios:

    • airFiber LTU™ AF-LTU
    • IsoStation IS-5AC
    • IsoStation IS-M5
    • PrismStation PS-5AC


    • Isolation Antenna Horns for airFiber® LTU and airMAX®
    • Designed for Increased Co-Location Performance
    • 45° beamwidth
    • Dual-Linear Polarization
    • Single button release for ease of changing antennas
    • Newly designed horn for improved beam shaping

    Specifications PrismAP-5-45

    Dimensions Ø 175 x 96 mm (6.9 x 3.78")
    Weight 1.34 kg (47.23 oz)
    Supported Frequency Range 5.15 - 5.85 GHz
    Gain 15.5 dBi
    HPOL Beamwidth 45°
    VPOL Beamwidth 45°
    Elevation Beamwidth 45°
    Maximum VSWR 1.7:1
    Wind Survivability 200 km/h (125 mph)
    Wind Loading 56 N @ 200 km/h (12.6 lbf @ 125 mph)
    Polarization Dual-Linear
    Cross-Pol Isolation 17 dB
