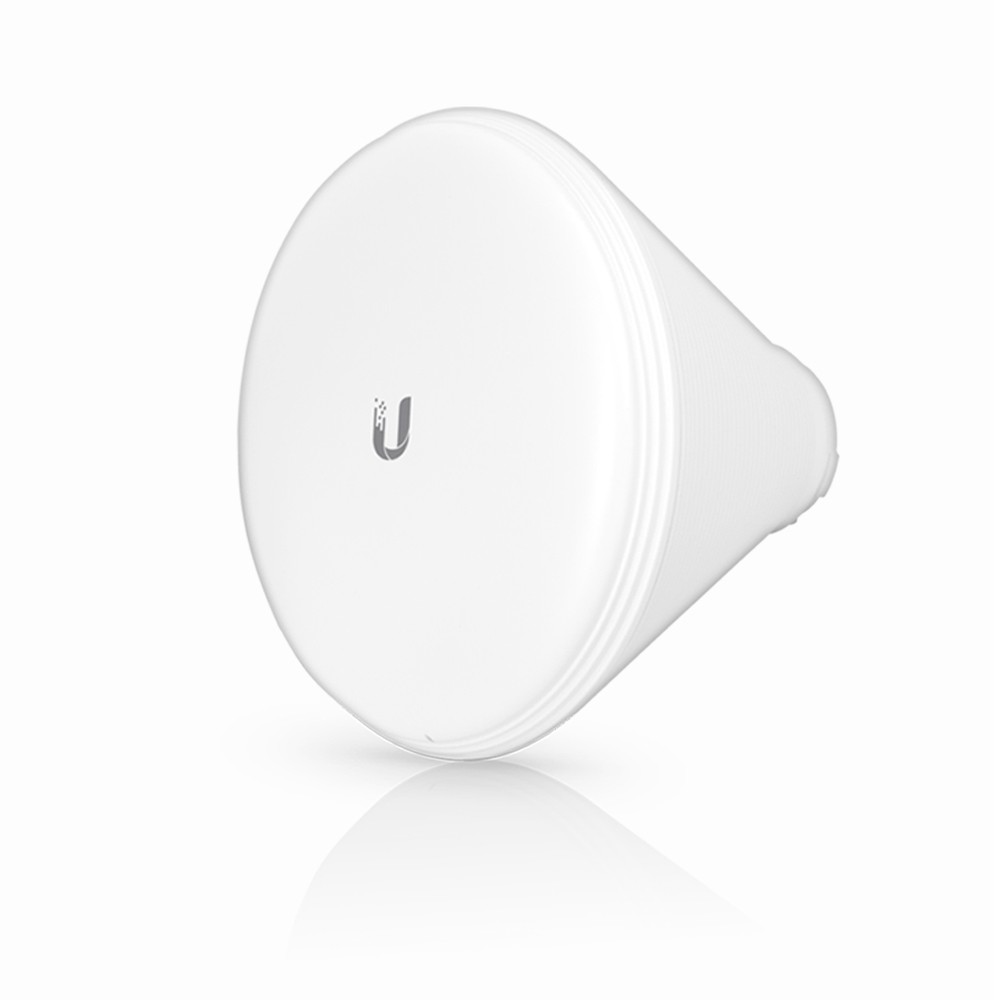

The Ubiquiti Networks Horn-5-30 is a 30° 5GHz Horn Antenna designed to be used with PrismStation or IsoStation radios. It is easily attached, with a locking mechanism instead of using connectors.
With a range of different beam widths, the isolation antennas are interchangeable and feature high-performance beam patterns ideal for a range of deployment needs. Used with the airFiber LTU and airMAX radios, these antennas deliver superb co-location performance without sacrificing gain.
The isolation antennas are interchangeable and feature high-performance beam patterns for a range of demanding deployment needs. Combined with the PrismStation 5AC or airFiber LTU radio, the system gets maximum gain out of the smallest footprint.
30° and 45° versions offer breakthrough scalability options for wireless systems. Unique beam performance and great co-location characteristics allow for a higher density of sectors than traditional sector technology.
60° and 90° versions have naturally attenuated side lobes and extremely low back radiation. They offer the best front-to-back ratio in the industry and the lowest side lobe radiation. Asymmetrical horn antennas are ideal for cluster sector installations with high co-location requirements.
• Dimensions: 152.1 x 186.8 x 113.2mm
• Weight: 0.92kg
• Operating Frequency: 5.15 to 5.85GHz
• Gain: 13dBi
• HPOL Beam Angle: 30°
• VPOL: Beam Angle: 30°
• Polarization: Dual-linear
• Cross-Pol Insulation: 17dB
