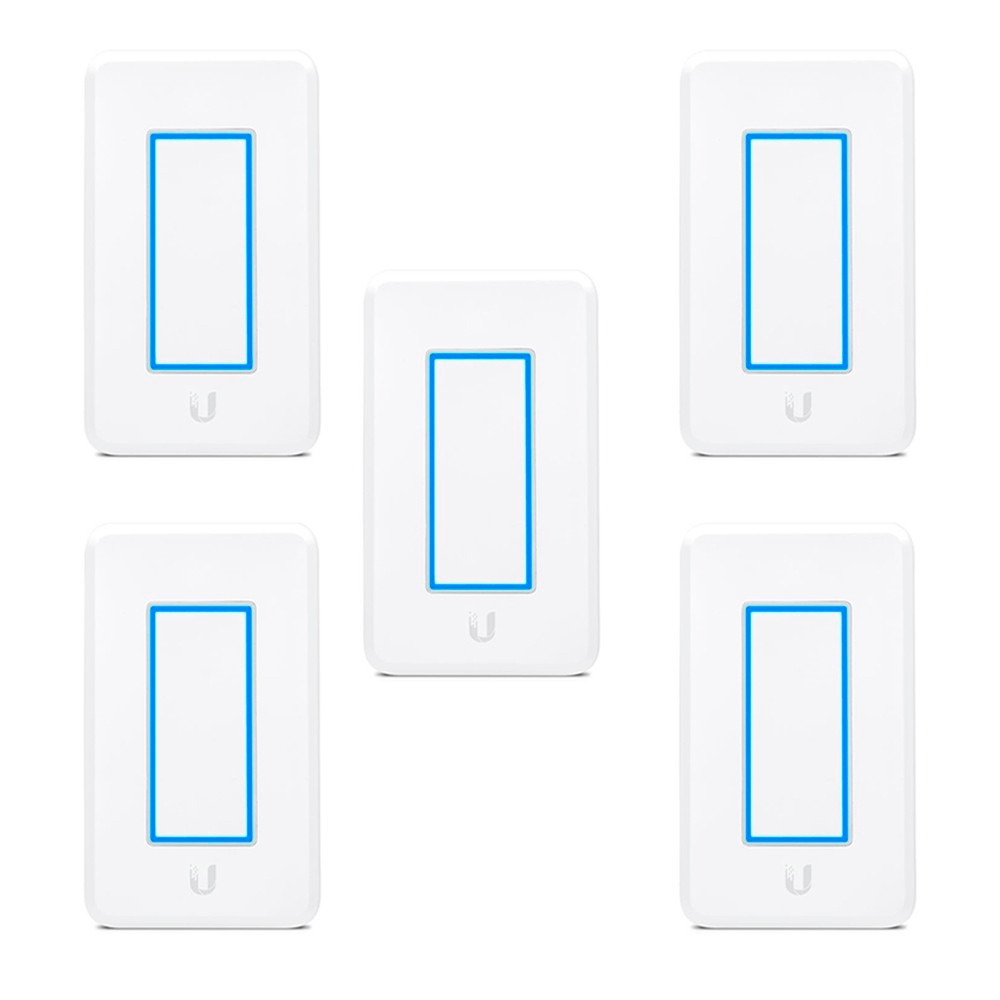

Model: UDIM-AT (5-Pack)
US Version 5-Pack
The UniFi Dimmer is a smart in-wall dimmer switch for use with the UniFi LED Lighting System. Powered by PoE, the UDIM-AT is designed to fit in an electrical switch box and networked by Ethernet. Use the intuitive UniFi LED App and EoT Controller to configure the UDIM-AT to control a defined group of UniFi LED Lights.
- Fits 1-Gang In-Wall Electrical Box
- Dimensions 71 x 115 x 25 mm (2.8 x 4.53 x 0.98")
- Weight 90 g (3.2 oz)
- Networking Interface 10/100 Ethernet Port
- Power Method 802.3af PoE
- Power Supply UniFi Switch (802.3af)
- Supported Voltage Range 48V
- Max. Power Consumption 5W
- Max. LED Panels per Dimmer Switch 128 (Recommended)
- Operating Temperature 0 to 40° C (32 to 104° F)
- Operating Humidity 10 to 90% Noncondensing
- Certifications CE, FCC, IC
Datasheet
