Ubiquiti Networks UDIM-AT UniFi Dimmer Switch 802.3af PoE

Product Highlights
  • Powered by 802.3af PoE
  • Configured and Managed by UniFi LED App and UniFi LED Controller
  • For Use with the UniFi LED Lighting System
  • Configure and Control Multiple UniFi LED Lights
  • Physical On/Off and Dimming Features
  • Model#: UDIM-AT

    Sku: IT2170

    MSRP: $54.99

    In Stock

    Your Price: $54.99

    Model: UDIM-AT

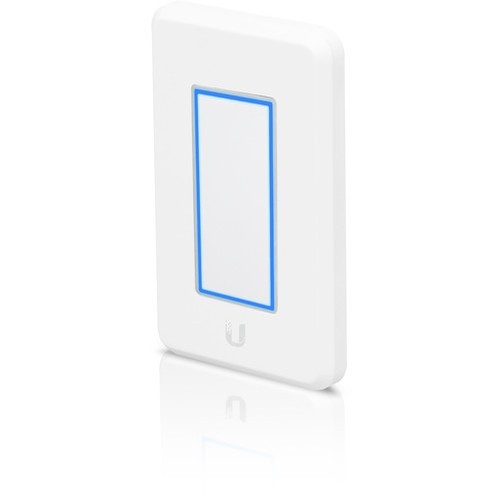

    UniFi PoE LED Dimmer Switch

    The Ubiquiti UniFi PoE LED Dimmer Switch is a smart in-wall dimmer switch for use with the UniFi LED Lighting System. Powered by PoE, the UDIM-AT is designed to fit in an electrical switch box and networked by Ethernet. Use the intuitive UniFi LED App and EoT Controller to configure the UDIM-AT to control a defined group of UniFi LED Lights.

    The Ubiquiti UniFi PoE LED Dimmer Switch is part of Network Managed Lighting that Ubiquiti Networks introduces in the UniFi® EoT (Enterprise of Things) product family. Targeted for businesses of all sizes, UniFi EoT is designed to blend seamlessly into existing deployments of UniFi network systems. Launching the UniFi EoT line are the UniFi LED Panel and UniFi Dimmer Switch. Offering the ultimate in lighting efficiency and convenience, the UniFi LED Panel fits into a standard T-grid dropped ceiling and runs on 802.3at PoE+.


    The panel can be controlled in three ways:

    • UniFi Dimmer Switch Uses 802.3af PoE power and lets you directly control one or multiple LED Panels. You can switch panels on/off or adjust their brightness (10-100%).
    • UniFi LED Controller Software (Beta) Browser-based interface, hosted on a UniFi Application Server or Ubuntu device, provides easy management of your LED devices.
    • UniFi LED App Mobile app (iOS or Android™) allows remote configuration via an AP connected to the LAN

    Specifications UDIM-AT

    Dimensions 71 x 115 x 25 mm(2.8 x 4.53 x 0.98")
    Weight 90 g (3.17 oz)
    Management Interface UniFi LED Controller, UniFi LED App
    Networking Interface 10/100 Mbps Ethernet Port
    Buttons Reset
    Power Method 802.3af PoE
    Power Supply Standard 802.3af PoE
    Supported Voltage Range 48V
    Max. Power Consumption 5W
    Operating Temperature 0 to 40° C (32 to 104° F)
    Certifications FCC, IC
