ACB-AC-US-2PK

Ubiquiti

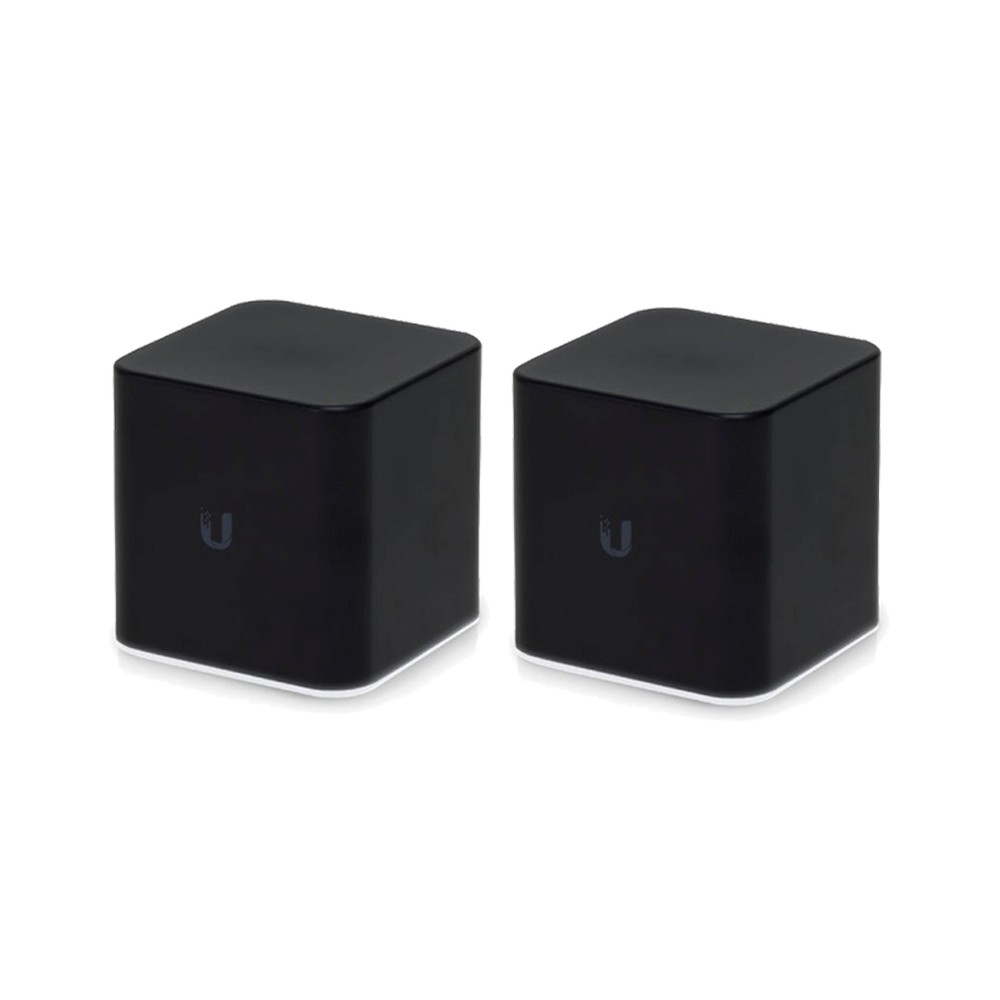

Ubiquiti airCube ac ACB-AC-US airMAX 802.11ac Dual-Band Home Wireless Access Point PoE 24V (2-Pack)


Product Highlights
  • Ubiquiti airCube ac ACB-AC-US airMAX 802.11ac Dual-Band Home Wireless Access Point PoE 24V (2-Pack)
  • With a compact design and integrated 24V PoE passthrough, the airCube is a home Wi-Fi access point designed to interoperate with airMAX CPEs and is available in two models.
  • Innovative Super Antenna provides wide-area coverage beyond regular Wi-Fi access points.
  • The airCube can be powered by and provide power to an airMAX CPE using 24V PoE
  • Use the intuitive UNMS Mobile app for iOS and Android to install and configure airCube.

    • Model#: ACB-AC-US-2PK

    Sku: IT2161

    Out of stock

    Model: ACB-AC-US (2-Pack)

    airCube airMAX Home Wi-Fi Access Point

    Introduction

    Ubiquiti Networks introduces the airCube, a cost-effective wireless access point for use in your customer deployments. The airCube AC Dual-band, 802.11ac, 2x2 MIMO technology for maximum wireless performance

    • 2.4 GHz radio band Speeds of up to 300 Mbps
    • 5 GHz radio band Speeds of up to 866.7 Mbps



    • Super Antenna

    Innovative Super Antenna provides wide-area coverage beyond regular Wi-Fi access points.

    • 24V PoE Passthrough

    The airCube can be powered by and provide power to an airMAX CPE using 24V PoE.

    Model: ACB-AC

    • (4) Gigabit Ethernet Ports
    • 24V PoE Passthrough for airMAX CPE
    • Dual-Band, 802.11ac, 2x2 MIMO Technology
    • Up to 1167 Mbps Wi-Fi Data Throughput
    • Up to 300 Mbps in the 2.4 GHz Radio Band
    • Up to 866.7 Mbps in the 5 GHz Radio Band
    • Powered by 24V Passive PoE or Included Power Adapter


    Product Specifications

    • Weight: 280g
    • Supported Power Voltage: 22-26V
    • Max Power Consumption: 8.5W
    • PoE Out: Controllable 24V PoE Out (+4, 5; -7, 8) on WAN Port
    • Management Interface: Wi-Fi / Ethernet
    • Max. TX Power: 22 dBm
    • Enclosure Characteristics: Black Plastic
    • Operating Temperature: -10 to 50° C (-14 to 122° F)
    • Operating Humidity: 5 to 95% Non-condensing
