UAP-AC-LITE-5-US-BD3

Ubiquiti

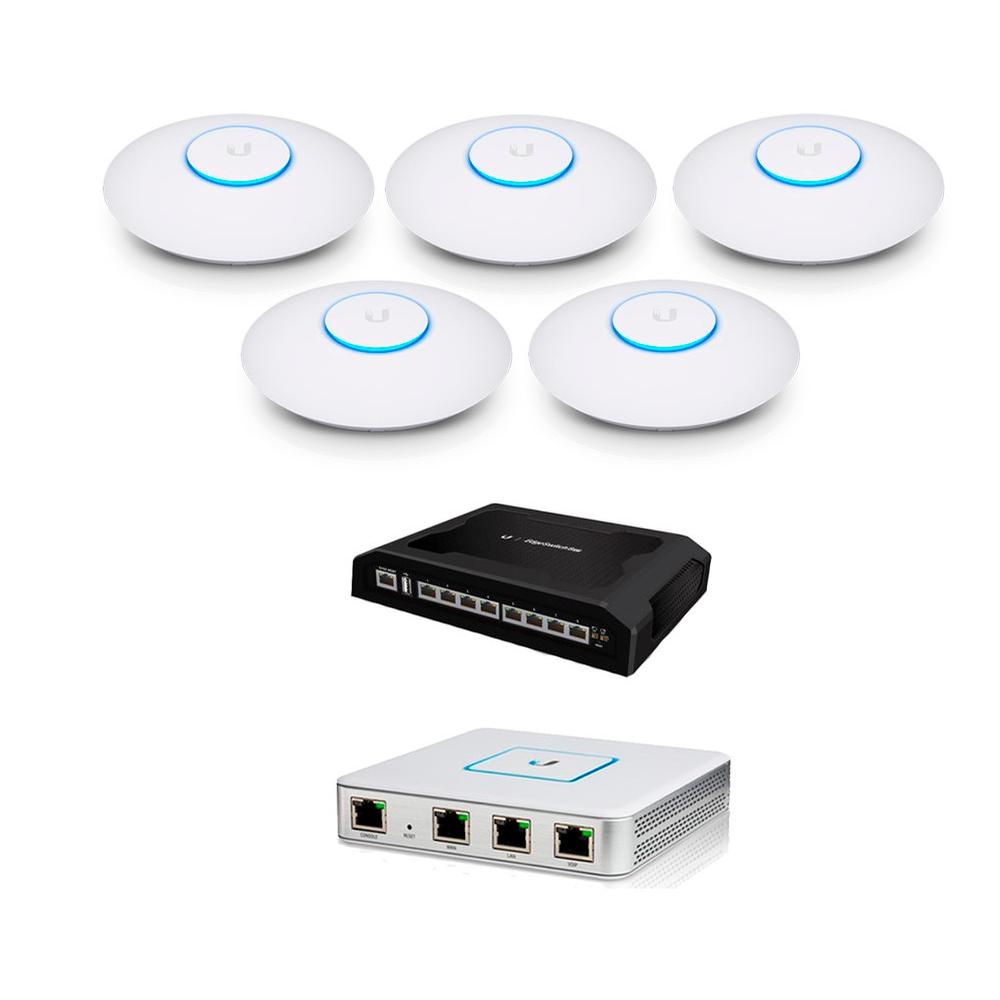

Ubiquiti UniFi AP AC LITE UAP-AC-LITE-5-US w/ EdgeSwitch ES-8X Switch 8-Port and Security Gateway USG Router Gigabit Ethernet Site-to-Site VPN


Product Highlights
  • Ubiquiti UniFi AP AC LITE UAP-AC-LITE-5-US Wireless Dual-Band Access Point 2x2 MIMO
  • The UniFi AC Lite AP features the latest Wi-Fi 802.11ac technology in a refined industrial design and is ideal for cost-effective deployment of high?performance wireless networks. Power over Ethernet (PoE) functionality allows both power and data to
  • Ubiquiti EdgeSwitch XP ES-8XP 8-Port Advanced Power over Ethernet Switches Gigabit and PoE
  • The EdgeSwitch XP delivers reliable passive PoE and Gigabit connectivity to attached Ubiquiti devices and other devices that support passive PoE.
  • Ubiquiti UniFi Security Gateway USG Enterprise Router with Gigabit Ethernet

    • Model#: UAP-AC-LITE-5-US-BD3

    Sku: IT2131

    Out of stock

                                                                                       Ubiquiti Wireless Point-to-MultiPoint 5 GHz KIT

    Model: UAP-AC-LITE-5-US

    UniFi AP AC LITE 802.11ac Dual Radio Access Point

    Ubiquiti's Lite Indoor WiFi Access Point supports 802.11ac and speeds of up to 867Mbps in the 5GHz radio band and up to 867Mbps in the 2.4GHz radio band and up to 300Mbps. The UAP-AC-LITE offers simultaneous dual-band operation with 2x2 MiMO technology for each band. It has a range of up to 122m (400ft) and one Gigabit Ethernet ports.



    • Dual-Radio Performance, Gigabit Speeds

     The UniFi AC Lite AP delivers 5x the performance of the first-generation UniFi AP while still maintaining Ubiquiti’s disruptive pricing strategy.

    +

    Model: ES-8XP

    EdgeSwitch XP Advanced Power over Ethernet Switches

    The EdgeSwitch XP delivers reliable passive PoE and Gigabit connectivity to attached Ubiquiti devices and other devices that support passive PoE.

    The Ubiquiti EdgeMAX EdgeSwitch 8XP, PoE is an advanced gigabit PoE managed switch. Ubiquiti introduces the Advanced Power over Ethernet Switches, EdgeSwitch XP from Ubiquiti Networks. EdgeSwitch XP delivers reliable passive PoE and fast 10/100/1000 Mbps connectivity to attached Ubiquiti devices and other devices that support passive PoE. To connect your PoE devices, simply enable PoE in the easy-to use EdgeSwitch XP Configuration Interface. Each port can be individually configured to provide PoE, so both PoE and non-PoE devices can be connected.

    • Clean Industrial Design

    The EdgeSwitch XP is designed to simplify deployment, consolidating the delivery of data and passive PoE (as needed).

    • Convenient PoE Support

    The EdgeSwitch XP supports 24V or 48V passive PoE to power multiple devices on your network.

    +

    Model: USG

    UniFi Security Gateway Router with Gigabit Ethernet

    The UniFi Security Gateway extends the UniFi Enterprise System to provide cost-effective, reliable routing and advanced security for your network.

    The UniFi Enterprise Gateway Router with Gigabit Ethernet from Ubiquiti Networks is designed to be implemented with compatible UniFi Enterprise Systems to provide routing and security to your local area network. With three Gigabit Ethernet ports and the ability to route up to 1 million packets per second this gateway is a versatile networking tool.

    • Integration with UniFi Controller

    Bundled at no extra charge, the UniFi Controller software conducts device discovery, provisioning, and management of the UniFi Security Gateway and other UniFi devices through a single, centralized interface.



    • VPN Server for Secure Communications

    A site-to-site VPN secures and encrypts private data communications traveling over the Internet.



    • Convenient VLAN Support

    The UniFi Security Gateway can create virtual network segments for security and network traffic management.



    Model: UAP-AC-LITE-5-US

    • 2.4 GHz Speed 300Mbps
    • 5 GHz Speed 867Mbps
    • (1) 10/100/1000 Ethernet
    • 802.11ac Dual Radio Access Point
    • 24V Passive PoE
    • 802.11 a/b/g/n/ac Wi-Fi Standards
    • Range of up to 400'
    • UniFi Controller Software
    • Integrated Omni Antennas
    • Guest Portal/Hotspot Support
    • Passive Power over Ethernet
    • 200+ Concurrent Clients
    • Reset Button
    • CE, FCC, IC Certified

    Model: ES-8XP

    • Dimensions: 210 x 185 x 41 mm
    • Weight: 1.24 kg
    • Power Input: 110-120VAC / 210-230VAC
    • Max. Power Consumption: 150 W
    • PoE Out Voltage Range: 45-48VDC / 22-24VDC
    • Max. PoE Wattage: Per Data Port 11.5 W (24 V), 23 W (48V)
    • ESD Rating: 24 kV Air / 24 kV Contact
    • PoE: Method Passive
    • USB Port: 2.0 Type A (Reserved for Future Use)
    • Processor: MIPS 24K, 400 MHz
    • System Memory: 64 MB
    • Code Storage: 8 MB
    • Certifications: CE, FCC, IC
    • Operating Temperature: -25 to 55°C (-13 to 131° F)
    • Operating Humidity: 90% Non-Condensing
    • PoE: Configurable Per Port
    • Data Ports: Off/24V/48V
    • Management Port: Power/Link/Activity
    • Data Ports: PoE, Speed/Link/Activity
    • Management Port: (1) 10/100 Ethernet Port
    • Data Ports: (8) 10/100/1000 Ethernet Ports



    Model: USG

    • Dual-Core 500 MHz Processor
    • 2 GB On-Board Flash Memory
    • Wall Mountable Design
    • 1 x RJ-45 Serial Console Port
    • 3 x Gigabit Ethernet Ports
    • 1 million packets per second for 64-byte packets
    • 3 Gb/s total line rate for packets 512 bytes or larger
    • Integrated and managed with UniFi Controller v4.x
    • Secure off-site management and monitoring
    • CLI management for advanced users
    • Silent, fanless operation
