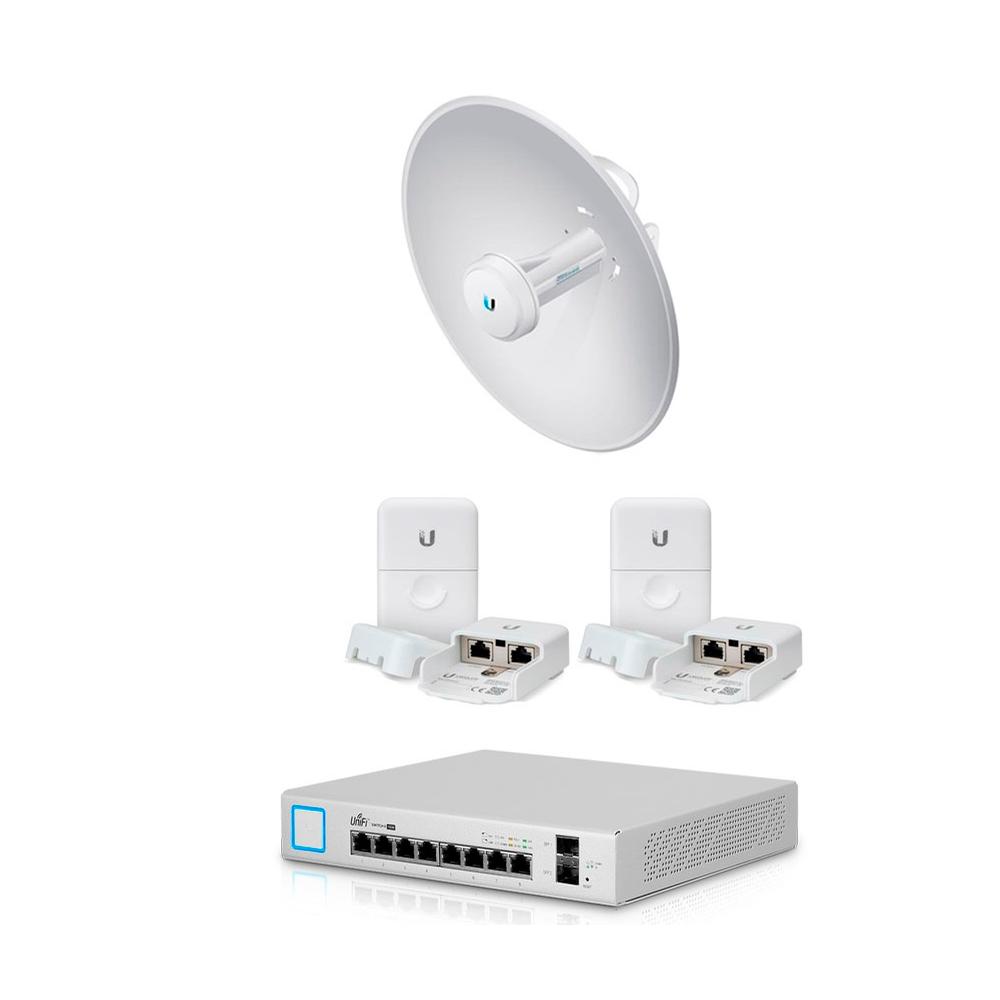

Ubiquiti PowerBeam AC PBE-2AC-400-US 2.4GHz Dish CPE with Switch Managed PoE+ US-8-150W and Ethernet Surge Protector ETH-SP-G2

PBE-2AC-400-US-BD1

Ubiquiti
Ubiquiti PowerBeam AC PBE-2AC-400-US 2.4GHz aiMAX Dish CPE 400mm with UniFi Switch Managed PoE+ US-8-150W Gigabit 8-Port with SFP 150W and Ethernet Surge Protector Gen 2 ETH-SP-G2


Product Highlights
  • Ubiquiti PowerBeam AC (QNTY: 1) PBE-2AC-400-US 2.4GHz airMAX High Gain Dish CPE with Dedicated Wi-Fi Management 802.11ac 400mm
  • Incorporating a dish reflector design with proprietary airMAX ac technology, the PowerBeam AC is ideal for CPE deployments requiring maximum performance.
  • The PowerBeam AC integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.
  • Ubiquiti UniFi Switch Managed PoE+ US-8-150W Gigabit 8-Port with SFP 150W
  • Ubiquiti Ethernet Surge Protector Gen 2 ETH-SP-G2 Ethernet to Ethernet Grounded ESD Protection
  • Model#: PBE-2AC-400-US-BD1

    Sku: IT2115.6517.137834



    MSRP: $429.99

    Out of stock

    Your Price: $369.95


    Model: PBE-2AC-400-US (QNTY: 1)

    PowerBeam AC High-Performance airMAX ac Bridge

    Ubiquiti Networks launches the latest generation of airMAX CPE the airMAX ac 2.4 GHz PowerBeam AC, with dedicated Wi-Fi management. The PowerBeam 2AC directs RF energy in a tighter beamwidth. With the focus in one direction, the PowerBeam 2AC blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency.

     This PowerBeam airMAX ac products support up to 330+ Mbps real TCP/IP throughput - more than double the throughput of standard airMAX products.



    • Management Wi-Fi Radio

    The PowerBeam AC integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.

    • Improved Mounting and Surge Protection

    Featuring enhanced protection against ESD events, the PowerBeam® AC offers a more robust mount with a convenient lifting loop or handle.

    • Plug and Play Installation

    The PowerBeam® AC requires no tools for assembly; only a single wrench is required for pole-mounting.



    • Incredible Antenna “Beam” Performance

    The form factor of the PowerBeam® AC features the highest gain for its size. The PowerBeam AC’s excellent beam directivity provides the best performance in high-noise environments.





    Model: US-8-150W (QNTY: 1)

    UniFi Switch 8-150W Managed PoE+ Gigabit Switch with SFP

    The fanless UniFi Switch delivers quiet yet powerful performance with its 10 independent switching ports. Sharing a total of 150W PoE, eight Gigabit Ethernet ports offer 802.3af/at PoE+ or 24V passive PoE, and two SFP ports offer optical connectivity.



    • Versatile Port Configuration

    Eight Gigabit RJ45 ports offer different power output options: auto-sensing IEEE 802.3af/at PoE/PoE+ and 24V passive PoE,and two SFP ports provide optical fiber connectivity options to support uplinks of up to 1 Gbps.

    • Wall Mounting

    The included Mounting Accessories support any orientation wall-mount and desk/shelf mounting.



    Model: ETH-SP-Gen2 (QNTY: 2)

    Ethernet Surge Protector Grounded ESD Protection

    The ETH-SP is engineered to protect any Power-over-Ethernet (PoE) or non-PoE device with connection speeds of up to 1 Gbps. The Ubiquiti Ethernet Surge Protector Gen 2 provides all of the features of the first generation, but with significantly better surge protection performance.



    • ESD Protection for Outdoor High-Speed Networks

    Introducing the Ethernet Surge Protector, model ETH-SP-G2, from Ubiquiti Networks. The ETH-SP-G2 is a cost-effective solution for protecting sensitive, third-party Ethernet devices from damaging electrostatic discharge and surges. Since all Ubiquiti airMAX devices already have robust ESD protection built in, adding the ETH-SP-G2 to the installation provides an additional layer of protection to the network.



    • ESD Protection for Outdoor PoE Devices

    Damaging electrostatic discharge attacks and surges are diverted to the ETH-SP and safely discharged into the ground, so network devices are protected.



    • Additional ESD Protection

    All Ubiquiti airMAX devices are equipped with built-in ESD protection, so the ETH-SP adds another layer of protection to your outdoor, high-speed network.







    Model: PBE-2AC-400-US (QNTY: 1)

    • Frequency: 2412-2462MHz
    • Management Radio: U-NII-3: 5725-5850MHz
    • Gain: 18 dBi
    • Networking Interface: (1) 10/100/1000 Ethernet Port
    • Enclosure: Outdoor UV Stabilized Plastic
    • Max. Power Consumption: 7.5W
    • Power Supply: 24V, 0.5A Gigabit PoE Adapter (Included)
    • Power Method: Passive PoE (Pairs 4,5+;7,8 Return)
    • Processor Specs: MIPS 74Kc
    • Memory: 64M
    • Certifications: CE, FCC, IC
    • Channel Sizes:

    Model: US-8-150W (QNTY: 1)

    • (8) Gigabit RJ45 Ports
    • (2) SFP Ports
    • Non-Blocking Throughput: 10 Gbps
    • Switching Capacity: 20 Gbps
    • Forwarding Rate: 14.88 Mpps
    • Maximum Power Consumption: 150W
    • Supports PoE+ IEEE 802.3at/af and 24V Passive PoE
    • Quiet, Fanless Operation
    • Rackmountable with Rack-Mount Brackets (Included)
    • Desktop-Mountable (Do not physically stack the US-8-150W.)
    • Networking Interfaces: (8) 10/100/1000Mbps RJ45 Ethernet Ports / (2) 1 Gbps SFP Ethernet Ports
    • Management Interface: Ethernet In-Band



    Model: ETH-SP-Gen2 (QNTY: 2)

    • Protects Outdoor PoE Devices
    • ESD and Surge Protection
    • Compatible with Gigabit Networks
    • Two Ethernet Jacks
