UAP-NanoHD-US-BD2

Ubiquiti

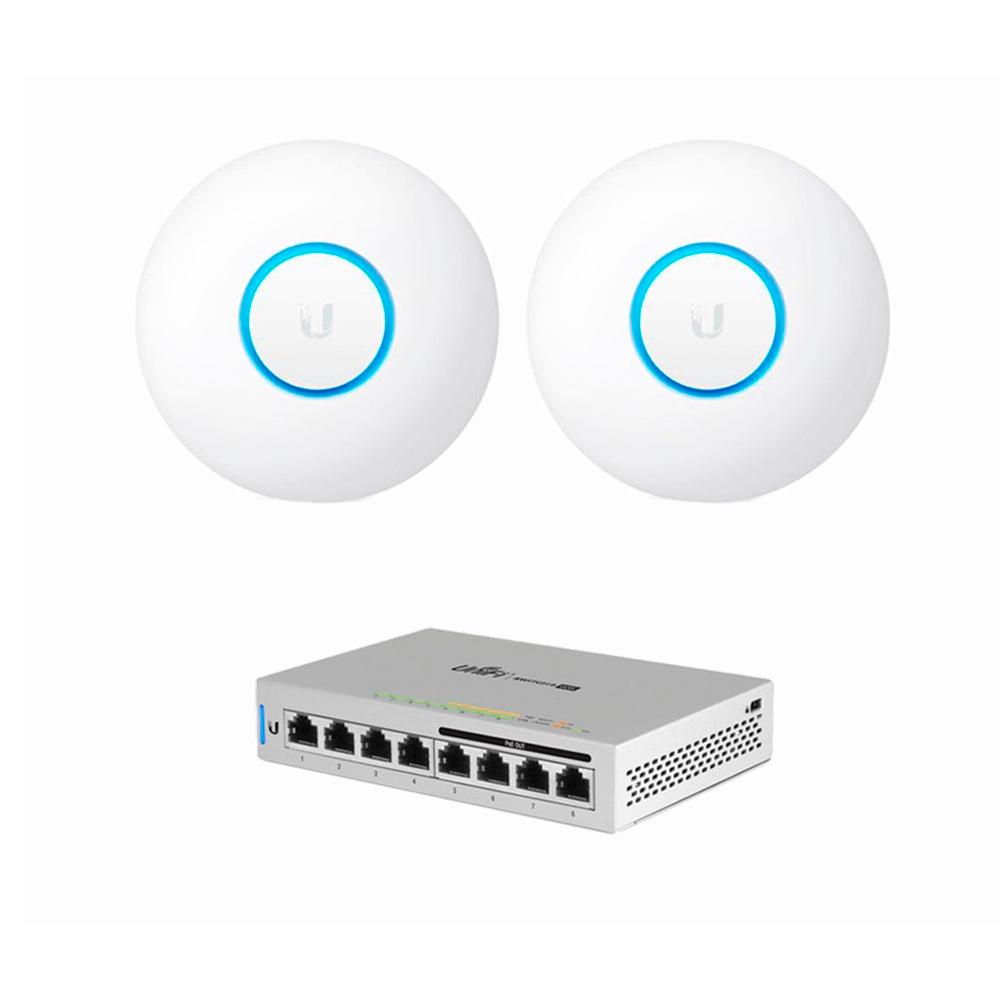

Ubiquiti UniFi nanoHD UAP-nanoHD-US (2-Pack) Compact Dual Band Wave2 Enterprise Wi-Fi 4x4 MIMO 1730 Mbps with UniFi Switch 8 US-8-60W 8-Port Fully Managed Gigabit



Product Highlights
  • Ubiquiti UniFi nanoHD UAP-nanoHD-US Compact Dual Band Wave2 Enterprise Wi-Fi 4x4 MIMO 1730 Mbps
  • Designed for Seamless Integration: The UniFi nanoHD Access Point features a low-profile form factor. The optional ceiling mount or custom skins allow the AP to blend even more discreetly into its setting.
  • Our Smallest Access Point Our Smallest UniFi Access Point Available On the Market. UAP nanoHD is 30% smaller than UAP AC Pro version.
  • Ubiquiti UniFi Switch 8 US-8-60W 8-Port Fully Managed Gigabit Switch 802.3af PoE ports 60 Watts
  • The new 8-port models feature Gigabit Ethernet ports in a compact form factor. For its total, non-blocking throughput, each UniFi Switch supports up to 8 Gbps.
  • Model#: UAP-NanoHD-US-BD2

    Sku: IT2110

    Out of stock

    Model: UAP-NanoHD-US

                                          UniFi nanoHD

                                                       Wave-2 Access Point

    Discretely install the UniFi nanoHD 4x4 MU-MIMO 802.11ac Wave-2 Access Point from Ubiquiti Networks into nearly any building environment, thanks to the optional skins which come in a variety of designs including camouflage, concrete, marble, wood, black and fabric. This Ubiquiti Networks AP also comes equipped with a single Gigabit Ethernet 802.3af PoE-compliant network port and includes mounting kits for easy installation to either the wall or ceiling.

    Deploy the UniFi nanoHD AP in high-density environments requiring maximum wireless performance and minimal footprint. The UniFi nanoHD AP features simultaneous, dual-band, 4x4 MU-MIMO technology and convenient 802.3af PoE compatibility.

    • 4x4 Wave 2 MU-MIMO
    • Supports 200+ Concurrent Users
    • Small, Low-Profile Access Point
    • Powered by 802.3af PoE













    +

    Model: US-8-60W

                                             UniFi Switch 8

                                Fully Managed Gigabit Switch

    The Ubiquiti Networks UniFi US-8-60W model features Gigabit Ethernet ports in a compact form factor. The switches are fully manageable, delivering robust performance and intelligent switching for your growing networks. The switch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss. For its total, non-blocking throughput, each supports up to 8 Gbps with a switching capacity of 16 Gbps. This model has four auto-sensing PoE ports that can deliver up to 15.4W of power for PoE devices.


    • 8-Port Managed Gigabit Switches

    The US-8-60W is an 8-port gigabit switch with four 802.3af PoE ports. Its auto-sensing PoE ports deliver up to 15.4W of power per port.

    • Non-Blocking Throughput

    The new 8-port models feature Gigabit Ethernet ports in a compact form factor. For its total, non-blocking throughput, each UniFi Switch supports up to 8 Gbps.

    • Switching Capacity

    The UniFi Switch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss, with a switching capacity of 16 Gbps.

    • Seamless Integration

    A single instance of the UniFi Controller running in the cloud can manage multiple UniFi sites within a centralized interface. Each site is logically separated and has its own network monitoring, configuration, maps, statistics, and admin accounts.

    Model: UAP-NanoHD-US (2-Pack)

    • Operating Frequency

    2.4 GHz / 5 GHz

    • Antenna Gain

    2.4 GHz - 2.8 dBi
    5 GHz - 3 dBi

    • MIMO

    2.4 GHz - 2x2
    5 GHz - 4x4

    • Radio Rate

    2.4 GHz - 300 Mbps
    5 GHz - 1733 Mbps


    • Wi-Fi Standards

    802.11 a/b/g/n/ac/ac-wave2



    Model: US-8-60W

    • 8 x Gigabit RJ-45 ports
    • 4 x Auto-Sensing IEEE 802.3af PoE ports

    • Non-Blocking Throughput: 8 Gbps

    • Switching Capacity: 16 Gbps

    • Total Non-Blocking Throughput 8 Gbps

    • Switching Capacity 16 Gbps

    • Certifications CE, FCC, IC
