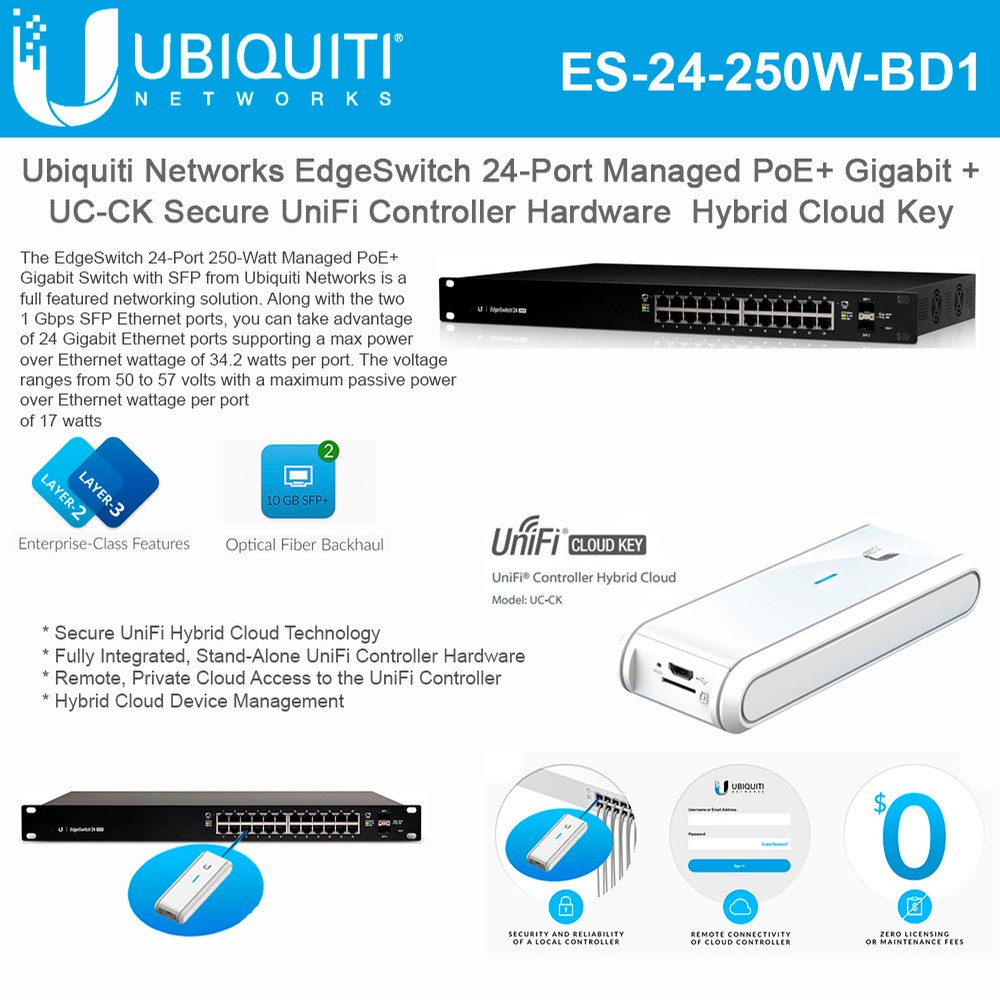

Ubiquiti Networks Edge Switch 24-Port ES-24-250W Managed Switch with UniFi Security Gateway UC-CK

ES-24-250W-BD1

Ubiquiti
Ubiquiti Networks Edge Switch 24-Port ES-24-250W Managed Switch with UniFi Security Gateway UC-CK


Product Highlights
  • Ubiquiti ES-24-250W EdgeSwitch 24-Port 250-Watt Managed PoE+ Gigabit Switch with SFP
  • The EdgeSwitch ES-24-250W is 24-Port, Managed PoE+ Gigabit switch with 250W non-blocking throughput switching performance, Gigabit Ethernet RJ45 and SFP+ SFP Ports and Auto-Sensing IEEE 802.3af/at PoE.
  • The EdgeSwitch offers an extensive suite of advanced Layer-2 switching features and protocols, and also provides layer-3 routing capabilities.
  • Ubiquiti Networks UniFi Cloud Key UC-CK Secure Controller Hybrid Cloud Key Stand-Alone Controller Hardware
  • Featuring Hybrid Cloud technology, the UniFi Cloud Key securely runs a local instance of the UniFi Controller software and features cloud Single Sign-On for remote access.
  • Model#: ES-24-250W-BD1

    Sku: IT2108.6506.137146



    MSRP: $499.00

    Out of stock

    Your Price: $499.00


    Model: ES-24-250W

    EdgeSwitch Powerful Enterprise Switch Model

    The EdgeSwitch ES-24-250W is 24-Port, Managed PoE+ Gigabit switch with 250W non-blocking throughput switching performance, Gigabit Ethernet RJ45 and SFP+ SFP Ports and Auto-Sensing IEEE 802.3af/at PoE. The EdgeSwitch offers an extensive suite of advanced Layer-2 switching features and protocols, and also provides layer-3 routing capabilities.



    • PoE+ Flexibility

    The EdgeSwitch 24 PoE Gigabit Ethernet ports of auto-sensing IEEE 802.3af/at or configurable 24V Passive PoE to simplify your infrastructure.



    • Powerful Enterprise Switch Models

    The EdgeSwitch delivers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss. Total non-blocking throughput: up to 26 Gbps for 24-port model.



    • Enterprise-Class Features

    The EdgeSwitch supports an extensive suite of advanced Layer-2 switching features and protocols, and also provides Layer-3 routing capability.

    • Optical Fiber Backhaul

    Two SFP ports support uplinks of up to 1 Gbps. For high-capacity uplinks, each 48-port model includes two SFP+ ports for uplinks of up to 10 Gbps.

    • Convenient PoE+ Support

    The EdgeSwitch features auto-sensing IEEE 802.3af/at and 24V passive PoE to power multiple devices on the network.





    Model: UC-CK

    UniFi Cloud Key Hybrid Cloud Device Management

    Featuring Hybrid Cloud technology, the UniFi Cloud Key securely runs a local instance of the UniFi Controller software and features cloud Single Sign-On for remote access. The UniFi Cloud Key combines the best of local and cloud management: local network security combined with convenient remote access.



    • Powerful Quad-Core Architecture

    The UniFi Cloud Key provides top processing power for centralized device management.



    • Plug and Play Installation

    Instant setup: connect the UniFi Cloud Key to 802.3af PoE and run the UniFi Controller setup wizard.

    Model: ES-24-250W

    •  (24) Gigabit RJ45 Ports
    •  (2) SFP Ports
    •  (1) Serial Console Port
    •  Non-Blocking Throughput: 26 Gbps
    •  Switching Capacity: 52 Gbps
    •  Forwarding Rate: 38.69 Mpps
    •  Maximum Power Consumption: 250W
    •  Supports POE+ IEEE 802.3at/af and 24V Passive PoE
    • Includes PoE Output: 250W
    • Excludes PoE Output: 30W
    • Power Method: 100-240VAC / 50-60Hz, Universal Input
    • Power Supply: AC/DC, Internal, 250W DC
    • RJ45 Data Ports: PoE, Speed/Link/Activity
    • SFP Data Ports: Speed/Link/Activity
    • Networking Interfaces: (24) 10/100/1000Mbps RJ45 Ethernet Ports + (2) 1Gbps SFP Ethernet Ports
    • Management Interface: (1) RJ45 SerialPort, Ethernet In/Out Band
    •  Rackmountable
    • 4.7 kg (10.4 lb)



    Model: UC-CK

    • Designed for convenient management, the UniFi Controller software allows admins to configure and monitor UniFi devices using a graphical user interface. There is no separate software, licensing, hosting, or support fee.
    • The UniFi Cloud Key combines the best of local and cloud management: local network security combined with convenient remote access.
    • The UniFi Cloud Key provides top processing power for centralized device management.
    • Instant setup: connect the UniFi Cloud Key to 802.3af PoE and run the UniFi Controller setup wizard.
    • Secure UniFi Hybrid Cloud Technology
    • Fully Integrated, Stand-Alone UniFi Controller Hardware
    • Remote, Private Cloud Access to the UniFi Controller
    • Hybrid Cloud Device Management
