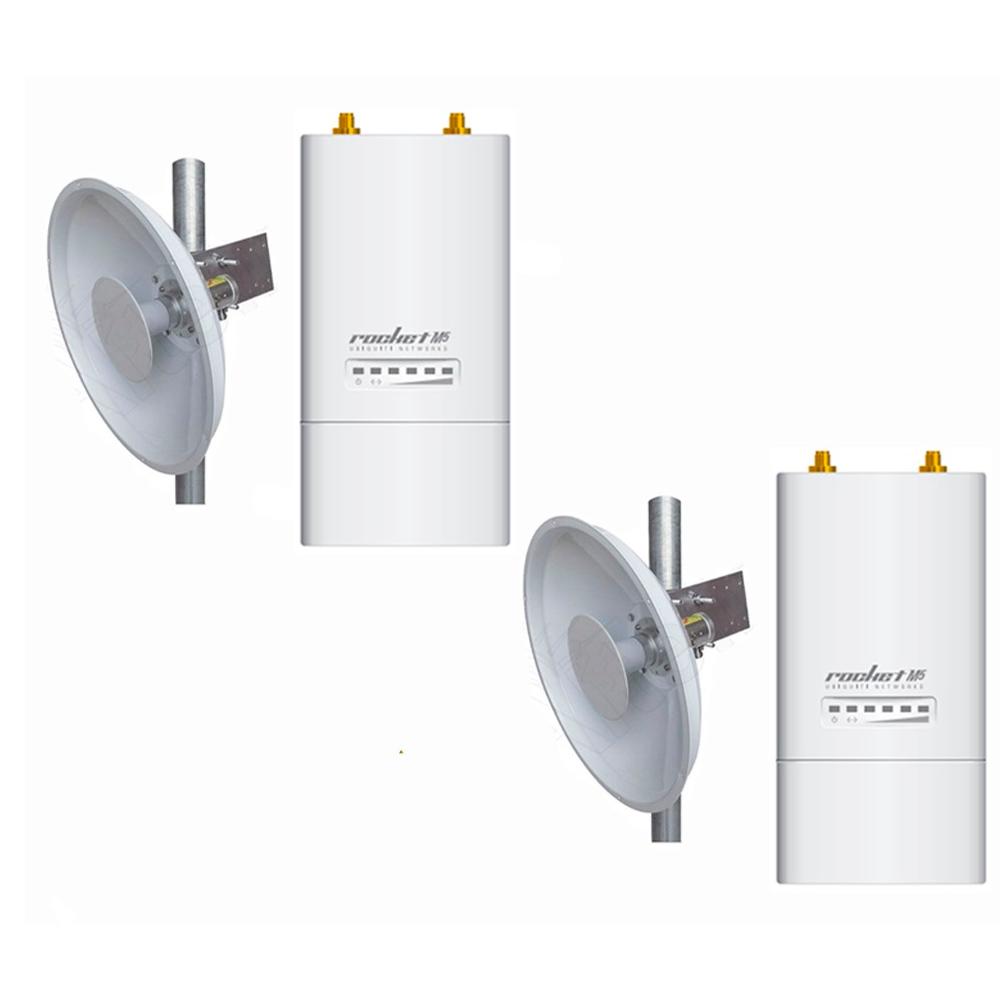

Ubiquiti Rocket M5 5GHz AirMax Radio BaseStation 2x2 MIMO with Radome Dish Antenna 23dBi PtP


Ubiquiti Networks Rocket M5 5GHz AirMax Outdoor Radio BaseStation 2x2 MIMO with Radome Dish Antenna 23dBi MIMO 2x2 PtP (2-Pack)

Model#: RocketM5-BD1

Sku: IT2105.6503.136888

MSRP: $199.00

Out of stock

Your Price: $199.00

                                                Complete Wireless PtP Solution

                                                                                                                      Buy 2 RocketM5 and get Radome Dish Antenna 23dBi

Model: RocketM5

Rocket M airMAX BaseStation

The Rocket is a rugged, hi-power, very linear 2x2 MIMO radio with enhanced receiver performance. It features incredible range performance (50+km) and breakthrough speed (150+Mbps real TCPI/IP). The device was specifically designed for outdoor PtP bridging and PTMP AirMax base-station applications.

  • Scalability

300+ subs per sectored base station Latency: Latency remains low for voice and video applications as network scales Speed: 150MBps+ PtMP performance Range: 50km+ outdoor range

Rocket M5 is a powerful outdoor unit for the 5GHz band designed for direct mounting on the OUTSIDE antenna series UBNT AirMAX. Unit allows for real communication speeds up to 150 Mbps. Thus the unit can simply create the backbone connections or access points.

Another advantage is in addition to high data transfer rates thanks to the use of 802.11n standard time multiplex TDMA, which allows the unit in the AP to connect more than 300 clients, and low latency.


Model: Radome Dish Antenna 23dBi

Altelix 5 GHz (4.9 GHz to 6.4 GHz) 23dBi PtP Radome Dish Antenna

Complete High Gain Antenna Kit that features our Radome Enclosed 23dB Dual Polarized 2x2 MIMO Parabolic Dish Antenna. The versatile adjustable feed system allows the antenna to be configured for Dual Polarization (Horizontal and Vertical) or for X-Polarization (+45° and -45°). It is a perfect match for 802.11a MIMO access points and bridges. It also supports the new 6.2 GHz and 6.4 GHz radios now available.

  • Shrouded Parabolic Dish

The AD5G23M2 features an aluminum alloy precision dish which is white UV-coated for all weather operation. The shrouded design of this dish helps reduce outside RF noise as well as reduce RF spillover to the rear of the antenna. This is ideal for co-located antenna installations.

Model: RocketM5

  • Operates in 5 GHz Frequency Band
  • Designed with airMAX TDMA Technology
  • Supports 150+ Mbps Transmission Speeds
  • Works Seamlessly with airMAX Antennas
  • airView Spectrum Analyzer Functionality
  • airOS 5 with Intuitive User Interface
  • airControl Web-Based Network Management
  • Supports Long-Range PtMP & PtP Bridging
  • Outdoor UV Stabilized Plastic Enclosure
  • Constructed with Multiple LED Indicators


Model: Radome Dish Antenna 23dBi

Frequency Range

  • 4900-6400 MHz


  • 1500 MHz


  • 23 dBi

Maximum Power

  • 100 Watts

Antenna Connectors

  • Integral N Female (x2)


  • ∅14.9 x 10.5 Inches (∅380 x 267 mm)

Weight   5.8 Lbs. (2.6 Kg)
