UAP-AC-SHD-US-BD2

Ubiquiti

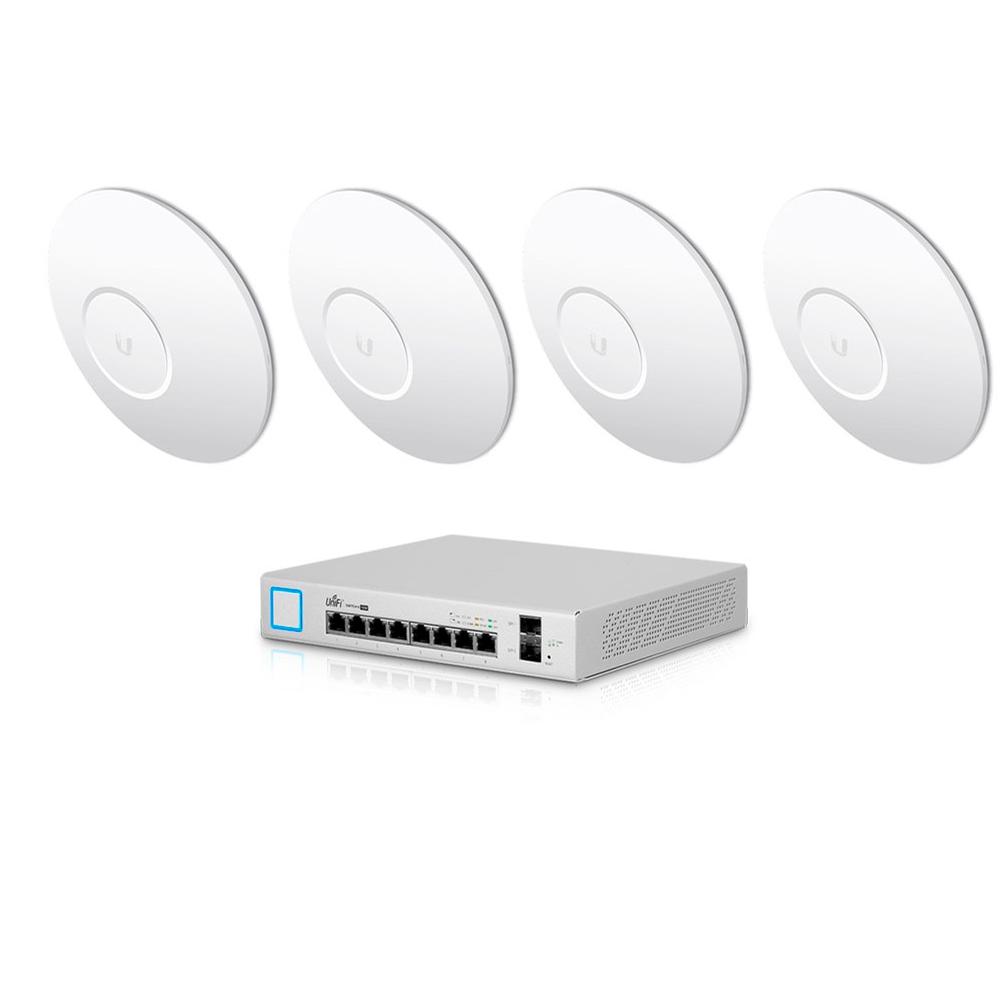

Ubiquiti UniFi AC SHD UAP-AC-SHD-US (4-pack) Wave 2 Dual Band Access Point up to 500 Users with UniFi Switch Managed PoE+ US-8-150W Gigabit 8-Port with SFP 150W


Product Highlights
  • Ubiquiti UAP-AC-SHD-US (QNTY:4) UniFi AC SHD 802.11AC Wave 2 Dual Band Access Point Dedicated Security Radio
  • Next-Gen Wireless Network Security Meets Industry Best WiFi Performance 4x4 SU-MIMO 2.4 GHz Array 4x4 MU-MIMO 5 GHz Array Spectral Security Radio
  • High-Density by MU-MIMO Technology: 802.11ac Wave 2 MU-MIMO (Multi-User, Multiple Input, Multiple Output) technology allows a Wave 2 AP to communicate with multiple clients at the same time
  • Radio Hardware Acceleration: Independent 2.4 GHz and 5 GHz dedicated hardware offload for maximized multi-user throughput and reduced latency
  • Optimized for MU-MIMO Antenna system optimized for 802.11ac Wave 2 MU-MIMO beamforming Beamforming Data sent and received using multiple antennas to increase throughput and range

    • Model#: UAP-AC-SHD-US-BD2

    Sku: IT2101

    Out of stock

    Your Price: N/A


    Model: UAP-AC-SHD-US (4 Units)

    Unifi SHD Access Point AC High Density Dedicated Security Radio

    Deploy UniFi AC HD AP in high-density environments requiring maximum wireless performance. The UniFi AC HD AP features simultaneous dual-band, 4x4 MU-MIMO technology and convenient 802.3at PoE+ compatibility. The Wave 2 MU-MIMO technology allows the AP to communicate with multiple clients at the same time - significantly increasing multi-user throughput and overall user experience. The UniFi AC HD AP is the first UniFi 802.11ac Wave 2 AP. It combines the performance increases from MU-MIMO technology and the use of 4x4 spatial streams to deliver up to 125% greater performance than a typical Wave 1 AP.


    • Radio Hardware Acceleration

    Independent 2.4 GHz and 5 GHz dedicated hardware offload for maximized multi-user throughput and reduced latency.

    • CPU Hardware Acceleration

     Dedicated hardware offload for QoS, guest control, and client management

    • Optimized for MU-MIMO

    Antenna system optimized for 802.11ac Wave 2 MU-MIMO beamforming.



    +

    Model: US-8-150W

    UniFi Switch 8-150W Managed PoE+ Gigabit Switch with SFP

    The fanless UniFi Switch delivers quiet yet powerful performance with its 10 independent switching ports. Sharing a total of 150W PoE, eight Gigabit Ethernet ports offer 802.3af/at PoE+ or 24V passive PoE, and two SFP ports offer optical connectivity.



    • Versatile Port Configuration

    Eight Gigabit RJ45 ports offer different power output options: auto-sensing IEEE 802.3af/at PoE/PoE+ and 24V passive PoE, and two SFP ports provide optical fiber connectivity options to support uplinks of up to 1 Gbps.



    • Wall Mounting

    The included Mounting Accessories support any orientation wall-mount and desk/shelf mounting.



    • Advanced Enterprise Switching

    The UniFi Switch supports 802.1X authentication, dynamic and static VLAN tagging, port isolation, storm control, and guest control.

    Model: UAP-AC-SHD-US (4 Units)

    • Dimensions: 220 x 220 x 49.1mm (8.66 x 8.66 x 1.89")
    • Weight: 700g (1.54lbs)
    • Weight w/ Mounting Kits: 830g (1.83lbs)
    • Networking Interface: (2) 10/100/1000 Ethernet Ports
    • Buttons: Reset
    • Power Method: Passive Power over Ethernet (48V), 802.3at PoE+ Supported
    • Supported Voltage Range: 44 to 57VDC
    • Power Supply: 48V, 0.5A PoE Gigabit Adapter
    • Power Save: Supported
    • Maximum Power Consumption: 17W
    • TX Power:
         2.4GHz: 6-25dBm
         5GHz: 6-25dBm
    • Antennas:
         2.4GHz: (2) Dual-Port, Dual-Polarity Antennas, 3dBi each
         5GHz: (2) Dual-Port, Dual-Polarity Antennas, 4dBi each
    • Wi-Fi Standards: 802.11 a/b/g/n/ac/ac-wave2
    • Wireless Security: WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
    • BSSID: Up to Four per Radio
    • Mounting: Wall/Ceiling (Kits Included)
    • Operating Temperature: -10 to 70°C (14 to 158°F)
    • Operating Humidity: 5 to 95% non-condensing
    • Certifications: CE, FCC, IC

    Advanced Traffic Management
    • VLAN: 802.1Q
    • Advanced QoS: Per-User Rate Limiting
    • Guest Traffic Isolation: Supported
    • WMM: Voice, Video, Best Effort, and Background
    • Concurrent Clients: 500+

    +

    Model: US-8-150W

    • (8) Gigabit RJ45 Ports
    • (2) SFP Ports
    • Non-Blocking Throughput: 10 Gbps
    • Switching Capacity: 20 Gbps
    • Forwarding Rate: 14.88 Mpps
    • Maximum Power Consumption: 150W
    • Supports PoE+ IEEE 802.3at/af and 24V Passive PoE
    • Quiet, Fanless Operation
    • Rackmountable with Rack-Mount Brackets (Included)
    • Desktop-Mountable (Do not physically stack the US-8-150W.)
    • Networking Interfaces: (8) 10/100/1000Mbps RJ45 Ethernet Ports / (2) 1 Gbps SFP Ethernet Ports
    • Management Interface: Ethernet In-Band
