R5AC-PTP US+AM-5AC22-45

Ubiquiti

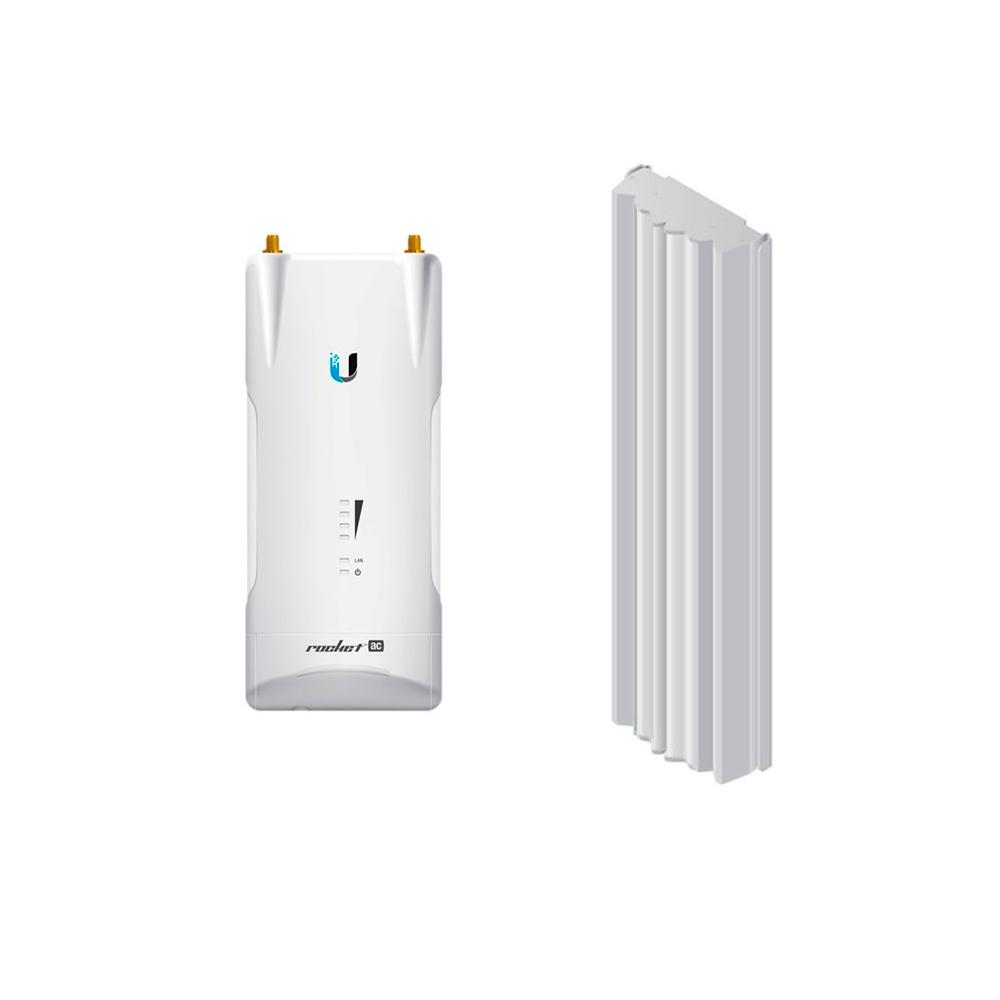

Ubiquiti Rocket ac R5AC-PTP US airMAX ac BaseStation PtP 5GHz with Sector Antenna AM-5AC22-45 22dBi


Model#: R5AC-PTP US+AM-5AC22-45

Sku: IT2086



MSRP: $459.99


Out of stock

Model: R5AC-PTP US

                                      Ubiquiti Rocket ac

                                           airMAX ac Point-to-Point Backhaul

The R5AC-PTP Rocket ac airMAX ac BaseStation from Ubiquiti Networks uses airMAX ac technology to provide up to 450 Mbps throughput. With an outdoor UV stabilized plastic enclosure this BaseStation can be installed in some of the harshest conditions allowing for the data signal to reach greater distances. Inside the enclosure you will find a 720 MHz Atheros MIPS 74Kc processor complete with 128MB of DDR2 RAM and 16MB of NOR Flash memory for enhanced processing power to allow for a stronger more stable signal. Ports on the BaseStation include one Gigabit Ethernet port and two waterproof RP-SMA RF connections to prevent against water damage.





Model: AM-5AC22-45

                                 airMAX AC Sector Antenna

                                         2x2 BaseStation

The  AM-5AC22-45 airMAXac Sector 2x2 MIMO BaseStation 5 GHz 22 dBi Antenna also from Ubiquiti Networks is designed to provide network enhancements with regards to scalability, noise isolation, and beam performance. This versatile antenna can also be used with RocketM5 models as well.

The airMAX ac Sector Antennas feature significant advances in scalability, noise isolation, and beam performance to complement the Rocket™5ac radios in Point-to-MultiPoint (PtMP) networks. They are compatible with RocketM5 models; however, optimal performance requires the Rocket5ac.

  • Breakthrough Design and Performance

The airMAX ac Sector Antennas feature carrier-class construction with an innovative deflector design and 2x2, dual-polarity performance for airMAX networks.

  • Industrial-Strength Construction

airMAX ac Antennas are designed with robust mechanical design for outdoor application use.



Model: R5AC-PTP US

  • Dimensions 198.5 x 86.4 x 44.1 mm (7.82 x 3.40 x 1.74")
  • Enclosure Characteristics Outdoor UV Stabilized Plastic
  • Processor Atheros MIPS 74Kc, 720 MHz
  • Memory 128 MB DDR2 SDRAM, 16 MB NOR FLASH
  • Networking Interface (1) 10/100/1000 Mbps
  • RF Connections (2) RP-SMA (Waterproof )
  • LEDs Power, LAN, (4) Signal Strength
  • Max. Power Consumption 8.5W
  • Power Supply 24V, 0.5A Gigabit PoE Adapter

Model: AM-5AC22-45

  • Frequency Range: 5.10-5.85 GHz
  • Gain: 22dBi
  • Polarization: Dual Linear
  • Cross-pol Isolation: 25dB min
  • Max VSWR: 1.5:1
  • Hpol Beamwidth (6dB): 45 deg.
  • Vpol Beamwidth (6dB): 45 deg.
  • Elevation Beamwidth: 4 deg.
  • Electrical Downtilt: 2 deg.
  • ETSI Specification: EN 302 326 DN2
