Ubiquiti UniFi AC Mesh 11ac 5-PACK UAP-AC-M-5 indoor/outdoor Wi-Fi UniFi Mesh dual-band access point

Product Highlights
  • Ubiquiti Networks UniFi AC Mesh UAP-AC-M-5-US Wide-Area Indoor/Outdoor Dual-Band Access Point
  • Expand the limits of Wide-Area WiFi. Welcome to UniFi Mesh Technology
  • The UniFi AC Mesh can be mounted on a pole, wall, or Ubiquiti high-gain antenna.
  • Optimal Performance Dual-Band performance with aggregate speeds of up to 1167 Mbps.
  • Built-in dual-band omni-directional antennas deliver expanded range coverage outdoors.
  • Model#: UAP-AC-M-5-US

    Sku: IT2077

    MSRP: $480.00

    Out of stock

    Model: UAP-AC-M-5-US

    UniFi AC Mesh 802.11AC Indoor/Outdoor Wi-Fi Access Point


                                                                            Expand the limits of Wide-Area WiFi with UniFi Mesh

    The Ubiquiti UAP-AC-M is an 802.11 mesh access point. With mesh multi-hop, you can can cover a large outdoor area with minimal infrastructure, with just a few mesh access points. These APs include adjustable dual-band omnidirectional antennas, but can be used with any 5 GHz omni antenna for spot-beam coverage in high-density locations with numerous APs and clients. These models are great for temporary installations, with quick setup and takedown, ideal for music festivals and concert venues.



    The UAP-AC-M-5 UniFi AC Mesh Wide-Area Outdoor Dual-Band Access Point from Ubiquiti Networks, users benefit from a wide coverage area reaching up to 600 feet, along with enhanced data transfer rates of up to 867 Mbps on the 5 GHz frequency. These enhanced data rates and coverage capabilities are supported by a 2x2 MIMO internal antenna configuration supporting multiple data paths for a more efficient end user network connection. Installation of the UAP-AC-M access point is simple as it is 802.3af PoE compliant and includes a wall/pole/fast-mount mounting kit. Once installed, users can take advantage of 802.11ac Wi-Fi access with combined wireless data transfer rates of up to 1167 Mbps.


    • Directional Coverage, Outdoors

    The UniFi AC Mesh AP is versatile; you can use any 5 GHz sector antenna (wide beam in the azimuth plane and narrow in the elevation plane) for broad outdoor coverage

    • Weather-Resistant Form Factor

    The enclosure of the UniFi AC Mesh AP is designed to withstand the elements, making it ideal for outdoor deployment.

    • Powerful Coverage

    Built-in dual-band omni-directional antennas deliver expanded range coverage outdoors.

    • Powerful Coverage

    Built-in dual-band omni-directional antennas deliver expanded range coverage outdoors.

    • Multiple Power Options

    You can power the UniFi AC Mesh Pro AP with an 802.3af compatible switch, UniFi PoE Switch, or the included Gigabit PoE adapter.

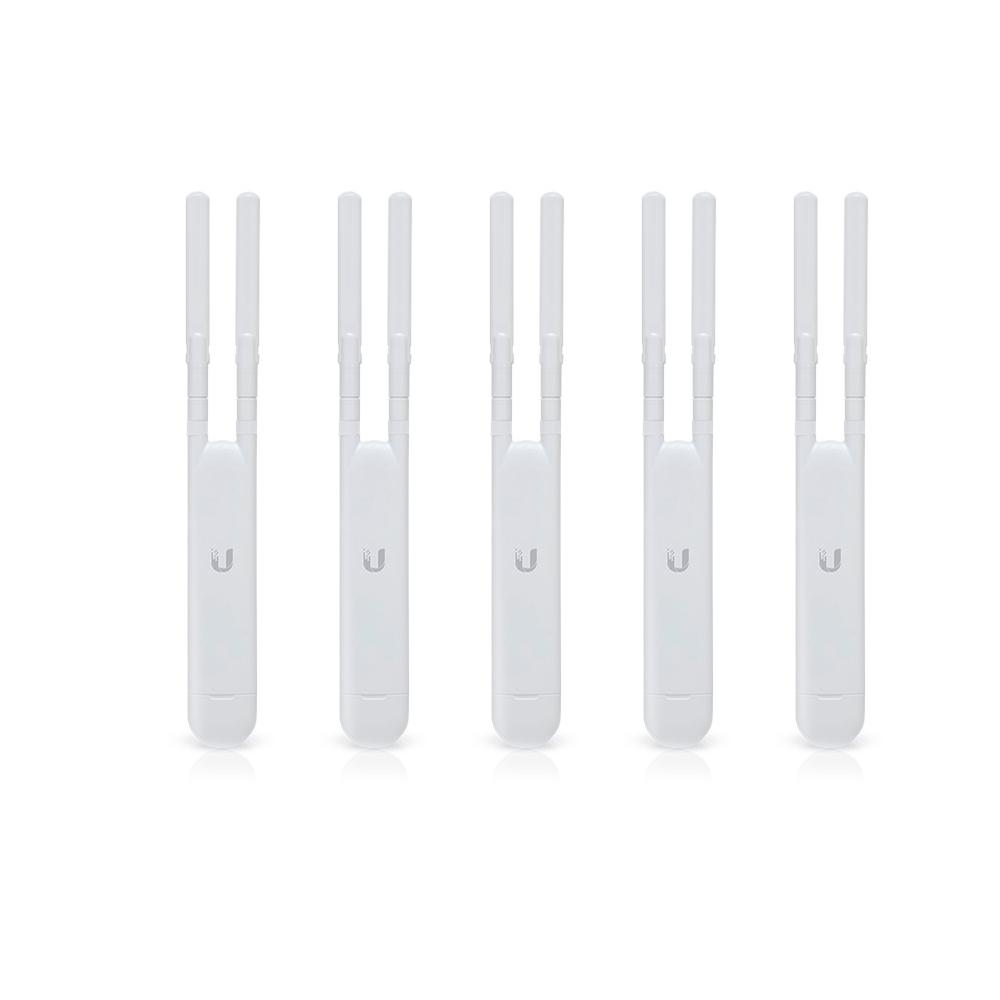

    UAP-AC-M-5-US (5 Units)

    • 802.11 a/b/g/n/ac Wi-Fi Standards
    • Up to 1167 Mbps Wi-Fi Transfer Rates
    • 600' Wireless Coverage
    • 1 x 10/100/1000 Ethernet Port
    • UniFi Controller Software
    • Integrated Omni Antennas
    • Guest Portal/Hotspot Support
    • Passive Power over Ethernet
    • 250+ Concurrent Clients
    • Reset Button
