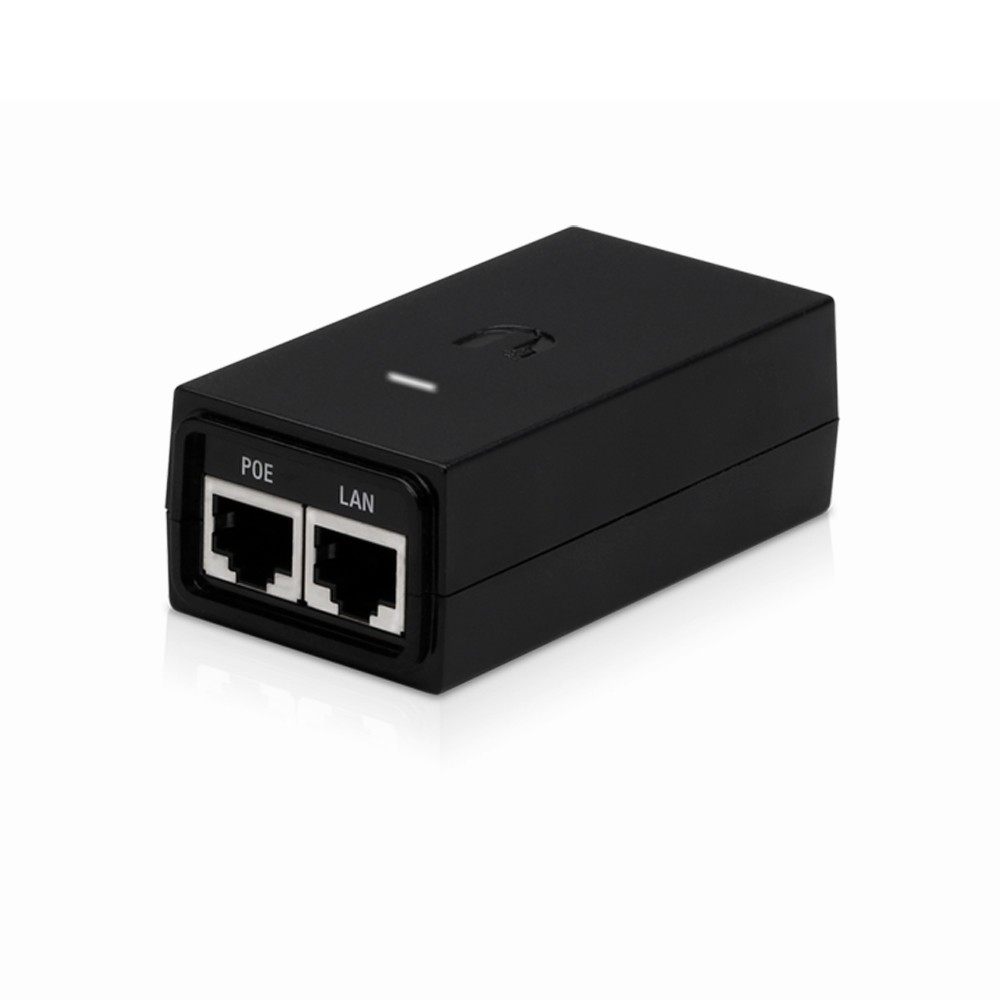

Ubiquiti POE-24 12W 120VAC/230VAC Power Over Ethernet POE Designed for BaseStation Equip. NO BOX

POE-24V 12W NB US

Ubiquiti
Ubiquiti POE-24 12W 120VAC/230VAC Power Over Ethernet POE Designed for BaseStation Equip. NO BOX

Model#: POE-24V 12W NB US

Sku: IT2057.6223.128007



MSRP: $24.99

In Stock

Your Price: $3.43




Ubiquiti PoE Adapters provide a variety of features to help protect your PoE devices:Electrostatic discharge (ESD) is the leading cause for outdoor device failures. You can effectively protect against ESD damage using a grounded Ubiquiti PoE Adapter, TOUGHCableTM, and TOUGHCable Connectors.

  • Surge protection
  • Clamping protection
  • Maximum surge discharge
  • Peak pulse current
  • AC cable with earth ground

Electrostatic discharge (ESD) is the leading cause for outdoor device failures. You can effectively protect against ESD damage using a grounded Ubiquiti PoE Adapter, TOUGHCableTM, and TOUGHCable Connectors.

  • Dimensions    87 x 44 x 29 mm
  • (3.43 x 1.73 x 1.14")
  • Weight    92 g
  • (3.25 g)
  • Output Voltage    24VDC @ 0.5A
  • LAN Activity Indicator    No
  • Gigabit LAN Port    No
  • Remote Reset Capability    Yes
  • Reset Button    Yes
  • Rated Voltage    100-240VAC @ 50/60Hz
  • Input Current    0.3A @ 120VAC, 0.2A @ 240VAC
  • Inrush Current    <30A Peak @ 120VAC, <60A Peak @ 230VAC
  • Efficiency    0.75
  • Output Ripple    1% Max.
  • Switching Frequency    50 kHz
  • Line Regulation    ≤ 3%
  • Load Regulation    ≤ 5%
  • 2-Pair Powering    Pins 4, 5 (+) and Pins 7, 8 (-)
  • 4-Pair Powering    –
  • Operating Temperature    0 to 40° C
  • (32 to 104° F)
  • Storage Temperature    -30 to 70°C
  • (-22 to 158° F)
  • Operating Humidity    35 to 95% Noncondensing
  • AC Connector    IEC-320 C6
  • Data IN / POE    RJ45 Shielded Socket
  • Surge Protection    Difference and Common Mode
  • Clamping Protection    11V Data, 60V Power
  • Max. Surge Discharge    1500A (8/20 μs) Power
  • Peak Pulse Current    36A (10/1000 μs) Data
  • Shunt Capacitance    <5 pF data
  • Response Time    <1 ns
  • Certifications    CE, FCC, IC, UL
