Ubiquiti ES-5XPEdgeSwitch 5-Port Gigabit 24V POE
Product Highlights
Model#: ES-5XP
Sku: IT2046
MSRP: $112.99
In Stock
Your Price: $112.99
SKU: ES-5XP

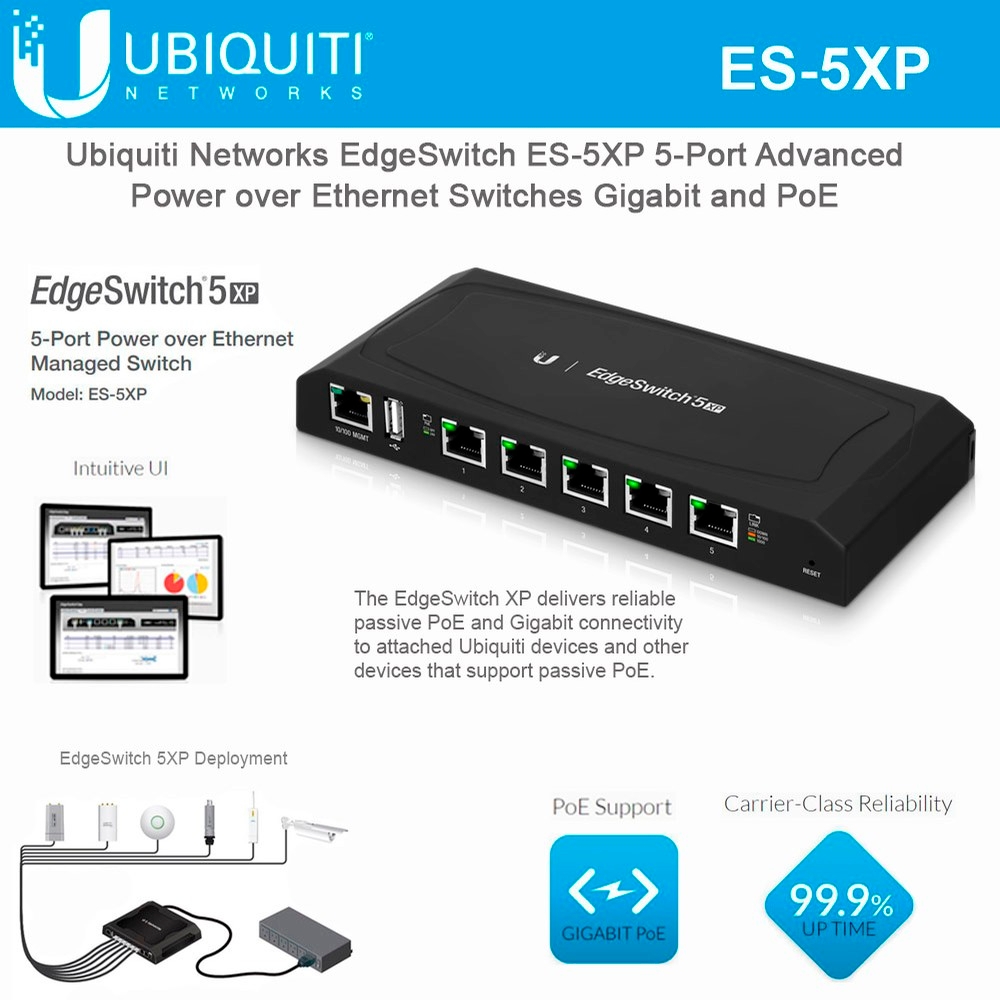

Ubiquiti Edgemax Edgeswitch 5XP, PoE
The Ubiquiti EdgeMAX EdgeSwitch 5XP, PoE is an advanced gigabit PoE managed switch. Ubiquiti introduces the Advanced Power over Ethernet Switches, EdgeSwitch XP from Ubiquiti Networks. EdgeSwitch XP delivers reliable passive PoE and fast 10/100/1000 Mbps connectivity to attached Ubiquiti devices and other devices that support passive PoE. To connect your PoE devices, simply enable PoE in the easy-to use EdgeSwitch XP Configuration Interface. Each port can be individually configured to provide PoE, so both PoE and non-PoE devices can be connected.EdgeSwitch XP is available in multiple versions to meet your deployment needs.
EdgeSwitch 5XP is a cost-effective, 5-port Gigabit switch with 24V PoE support.
Features:
- 5 Gigabit PoE Ports
- 24V Configurable Passive PoE
- EdgeSwitch XP Configuration Interface
- Wall-Mountable
Specifications ES-5XP
| Dimensions | 197 x 87.5 x 27.3 mm |
| Weight | 250 g |
| Power Input | 24VDC, 2.5A Power Adapter (Included) |
| Max. Power Consumption | 60 W |
| PoE Out Voltage Range | 22-24VDC |
| Max. PoE Wattage Per Data Port | 11.5 W |
| ESD Rating | 24 kV Air / 24 kV Contact |
| PoE Method | Passive |
| Button | Reset |
| USB Port | 2.0 Type A (Reserved for Future Use) |
| Processor | MIPS 24K, 400 MHz |
| System Memory | 64 MB |
| Code Storage | 8 MB |
| Certifications | CE, FCC, IC |
| Wall-Mount | Yes |
| Operating Temperature | -25 to 55°C (-13 to 131° F) |
| Operating Humidity | 90% Non-Condensing |
| PoE Configurable Per Port | |
| Management Port | N/A |
| Data Ports | Off/24V |
| LEDs Per Port | |
| Management Port | Power /Link/Activity |
| Data Ports | PoE, Speed/Link/Activity |
| Networking Interfaces | |
| Management Port | (1) 10/100 Ethernet Port |
| Data Ports | (5) 10/100/1000 Ethernet Ports |
