ES-16XP

Ubiquiti

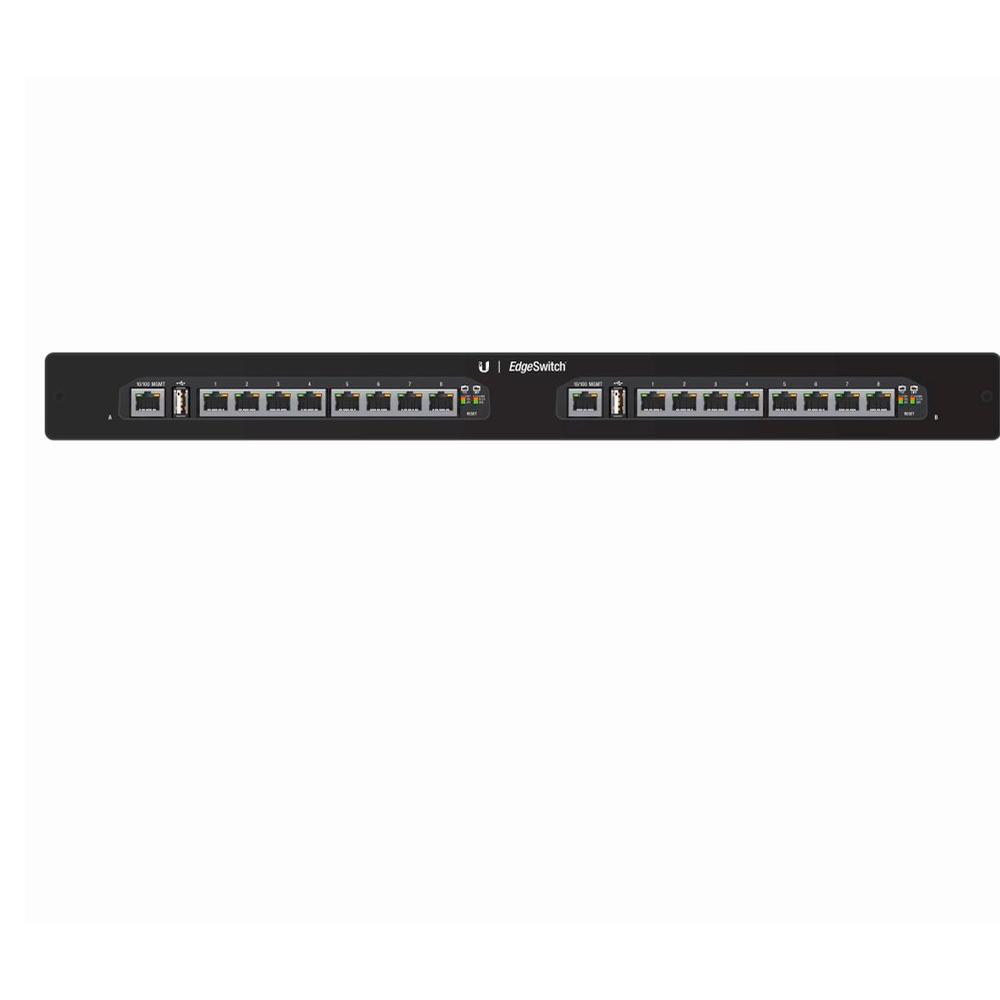

Ubiquiti EdgeSwitch XP 16XP ES-16XP 300 watts up to 16 devices 16-gigabit PoE ports 24V/48V passive PoE


Product Highlights
  • Ubiquiti Networks EdgeSwitch XP ES-16XP Advanced Power over Ethernet Switch passive PoE and Gigabit Connectivity Rack-Mount
  • The EdgeSwitch XP delivers reliable passive PoE and Gigabit connectivity to attached Ubiquiti devices and other devices that support passive PoE.
  • The EdgeSwitch XP is designed to simplify deployment, consolidating the delivery of data and passive PoE (as needed).
  • The EdgeSwitch XP is designed to simplify deployment, consolidating the delivery of data and passive PoE (as needed).
  • The EdgeSwitch XP ES-16XP is a Replacement for the TS-16-Carrier.

    • Model#: ES-16XP

    Sku: IT2036



    MSRP: $599.95


    Out of stock

     Model: ES-16XP

                                              EdgeSwitch XP

                                            Advanced Power over Ethernet Switches

    The EdgeSwitch XP delivers reliable passive PoE and Gigabit connectivity to attached Ubiquiti devices and other devices that support passive PoE.

    Introducing the Advanced Power over Ethernet Switches, EdgeSwitch™ XP from Ubiquiti Networks. EdgeSwitch XP delivers reliable passive PoE and fast 10/100/1000 Mbps connectivity to attached Ubiquiti devices and other devices that support passive PoE. To connect your PoE devices, simply enable PoE in the easy-touse EdgeSwitch XP Configuration Interface. Each port can be individually configured to provide PoE, so both PoE and non-PoE devices can be connected. EdgeSwitch XP is available in multiple versions to meet your deployment needs.



    • Clean Industrial Design

    The EdgeSwitch XP is designed to simplify deployment, consolidating the delivery of data and passive PoE (as needed).

    • Convenient PoE Support

    The EdgeSwitch XP supports 24V or 48V passive PoE to power multiple devices on your network.

    • Carrier-Class Reliability

    The EdgeSwitch XP delivers uptime performance equal to leading carrier or enterprise technology solutions.

    • Industrial-Strength Construction

    The EdgeSwitch XP is purpose-built with robust mechanicals for industrial application use.

    • A Single Power Source

    Featuring software-selectable output voltage control, the EdgeSwitch 8XP and 16XP models can power 24V or 48V devices.

    • Intuitive UI

    Designed for efficient setup and control, the graphical user interface is easy to use and manages advanced Layer 2 features, including:

    • Port monitoring
    • System connection and management services
    • Virtual Local Area Network (VLAN) configuration
    • Spanning Tree Protocol (STP)/Rapid Spanning Tree Protocol (RSTP)
    • Jumbo frame support
    • Ping Watchdog
    • Configurable alerts



    • Dimensions 480 x 44.5 x 186 mm
    • Weight 3.95 kg
    • Hardware Configuration (2) EdgeSwitch 8XPs
    • Mounting Integrated 1U Rack-Mount
    • Power Input 110-120VAC / 210-230VAC
    • Max. Power Consumption 150 W
    • PoE Out Voltage Range 45-48VDC / 22-24VDC
    • Max. PoE Wattage Per Data Port 11.5 W (24 V), 23 W (48V)
    • ESD Rating 24 kV Air / 24 kV Contact
    • PoE Method Passive
    • Button Reset
    • USB Port 2.0 Type A (Reserved for Future Use)
    • Processor MIPS 24K, 400 MHz
    • System Memory 64 MB
    • Code Storage 8 MB
    • Certifications CE, FCC, IC
    • PoE Configurable Per Port
    • Management Port N/A
    • Data Ports Off/24V/48V
    • LEDs Per Port
    • Management Port Power/Link/Activity
    • Data Ports PoE, Speed/Link/Activity
    • Networking Interfaces
    • Management Port (1) 10/100 Ethernet Port
    • Data Ports (8) 10/100/1000 Ethernet Ports
