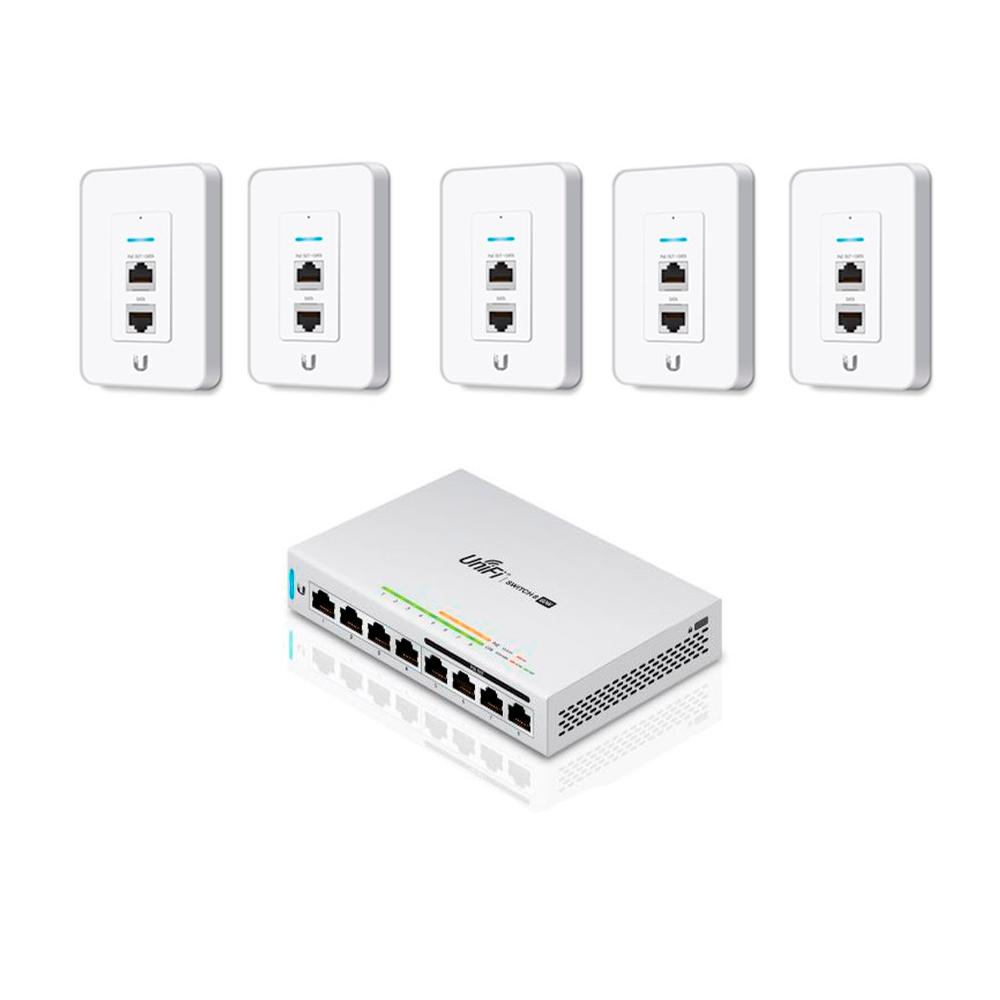

Ubiquiti UniFi In-Wall Wireless Access Point 2.4GHz UAP-IW-5-US With Managed Switch US-8-60W Gigabit

UAP-IW-5-US-BD1

Ubiquiti
Ubiquiti Networks UniFi In-Wall Wireless Access Point 2.4GHz UAP-IW-5-US With UniFi Switch 8 US-8-60W 8-Port Fully Managed Gigabit 60 Watts


Product Highlights
  • Ubiquiti UniFi In-Wall Wireless Access Point 2.4GHz UAP-IW-5-US 802.11 b/g/n PoE
  • The UAP-IW is ideal for retrofitting an existing in-wall wired Ethernet jack to a wireless access point. It also provides one RJ45 data port and one PoE port to connect devices like a VoIP phone
  • The UAP-IW is capable of speeds of up to 150 Mbps with a range of up to 25 m (82 ft). The UAP-IW can be powered by a UniFi Switch.
  • UniFi Switch US-8-60W Switch Fully Managed PoE+ Gigabit Switch with SFP 60W
  • The US-8-60W is an 8-port gigabit switch with four 802.3af PoE ports. Its auto-sensing PoE ports deliver up to 15.4W of power per port.
  • Model#: UAP-IW-5-US-BD1

    Sku: IT2032.5924.120375



    MSRP: $379.00

    Out of stock

    Your Price: $379.00


    Model: UAP-IW-5-US

                             UniFi In-Wall Wireless Access Point

    The UAP-IW (US Version) is ideal for retrofitting an existing in-wall wired Ethernet jack to a wireless access point. It also provides one RJ45 data port and one PoE port to connect devices like a VoIP phone. The UAP-IW is capable of speeds of up to 150 Mbps with a range of up to 25 m (82 ft). The UAP-IW can be powered by a UniFi Switch. The UAP-IW cannot be powered by a passive PoE source such as a PoE injector or the TOUGHSwitch.

    It provides one RJ45 data port and one PoE port to connect devices like a VoIP phone, and is capable of speeds of up to 150 Mbps with a range of 82'.

    • Instant Deployment

    Transform any existing Ethernet outlet into a versatile UniFi AP – no additional wiring needed.

    • Versatile Data and PoE Output

    An integrated PoE passthrough port conveniently connects and powers a security camera, VoIP phone, or high-end AP.

    +

    Model: US-8-60W

                                             UniFi Switch 8

                                Fully Managed Gigabit Switch

    The Ubiquiti Networks UniFi US-8-60W model features Gigabit Ethernet ports in a compact form factor. The switches are fully manageable, delivering robust performance and intelligent switching for your growing networks. The switch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss. For its total, non-blocking throughput, each supports up to 8 Gbps with a switching capacity of 16 Gbps. This model has four auto-sensing PoE ports that can deliver up to 15.4W of power for PoE devices.


    • 8-Port Managed Gigabit Switches

    The US-8-60W is an 8-port gigabit switch with four 802.3af PoE ports. Its auto-sensing PoE ports deliver up to 15.4W of power per port.
    .

    • Non-Blocking Throughput

    The new 8-port models feature Gigabit Ethernet ports in a compact form factor. For its total, non-blocking throughput, each UniFi Switch supports up to 8 Gbps.

    • Switching Capacity

    The UniFi Switch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss, with a switching capacity of 16 Gbps.

    • Seamless Integration

    A single instance of the UniFi Controller running in the cloud can manage multiple UniFi sites within a centralized interface. Each site is logically separated and has its own network monitoring, configuration, maps, statistics, and admin accounts.

    Model: UAP-IW-5-US

    • 1 x 10/100 Ethernet in (rear)
    • 1 x 10/100 Ethernet data out (front)
    • 1 x PoE out (front)
    • Operating Bandwidth 2.4 GHz
    • Antenna Gain 1 dBi
    • Wi-Fi Standards 802.11 b/g/n
    • Supported Data Rates
    • 802.11n: 6.5 to 150 Mbps (MCS0 - MCS7, HT 20/40)
    • 802.11b: 1, 2, 5.5, 11 Mbps
    • 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

    +

    Model: US-8-60W

    • 8 x Gigabit RJ-45 ports
    • 4 x Auto-Sensing IEEE 802.3af PoE ports
    • Non-Blocking Throughput: 8 Gbps
    • Switching Capacity: 16 Gbps
    • Forwarding Rate: 11.9 Mpps
    • Dimensions 148.0 x 99.5 x 30.7 mm (5.83 x 3.92 x 1.21")
    • Weight 432 g (15.24 oz)
    • Enclosure Characteristics SGCC Steel
    • Total Non-Blocking Throughput 8 Gbps
    • Switching Capacity 16 Gbps
    • Forwarding Rate 11.9 Mpps
    • Max. Power Consumption 12W (Excluding PoE Output)
    • Max. PoE Wattage per Port 15.4W
    • Power Method 48VDC, Max. 2A
    • Supported Voltage Range 57VDC to 44VDC
    • Power Supply External AC/DC Adapter, 48V, 1.25A
    • LEDs PoE (Port 8), Speed/Link/Activity (All Ports)
    • Networking Interfaces (8) 10/100/1000 Mbps RJ45 Ports
    • PoE Interfaces (4) Ports 5, 6, 7, 8; IEEE802.3af
    • ESD/EMP Protection Air: ± 24 kV, Contact: ± 24 kV
    • Operating Temperature -5 to 45° C (23 to 113° F)
    • Operating Humidity 5 to 95% Noncondensing
    • Shock and Vibration ETSI300-019-1.4 Standard
    • Certifications CE, FCC, IC
