Ubiquiti Networks UniFi BaseStation XG UWB-XG 802.11AC Wave2 Wireless Acess Point Gigabit Ethernet Quad Radio 1,500 Clients

Model#: UWB-XG

Sku: IT2016

MSRP: $1,679.00

Out of stock

Model: UWB-XG

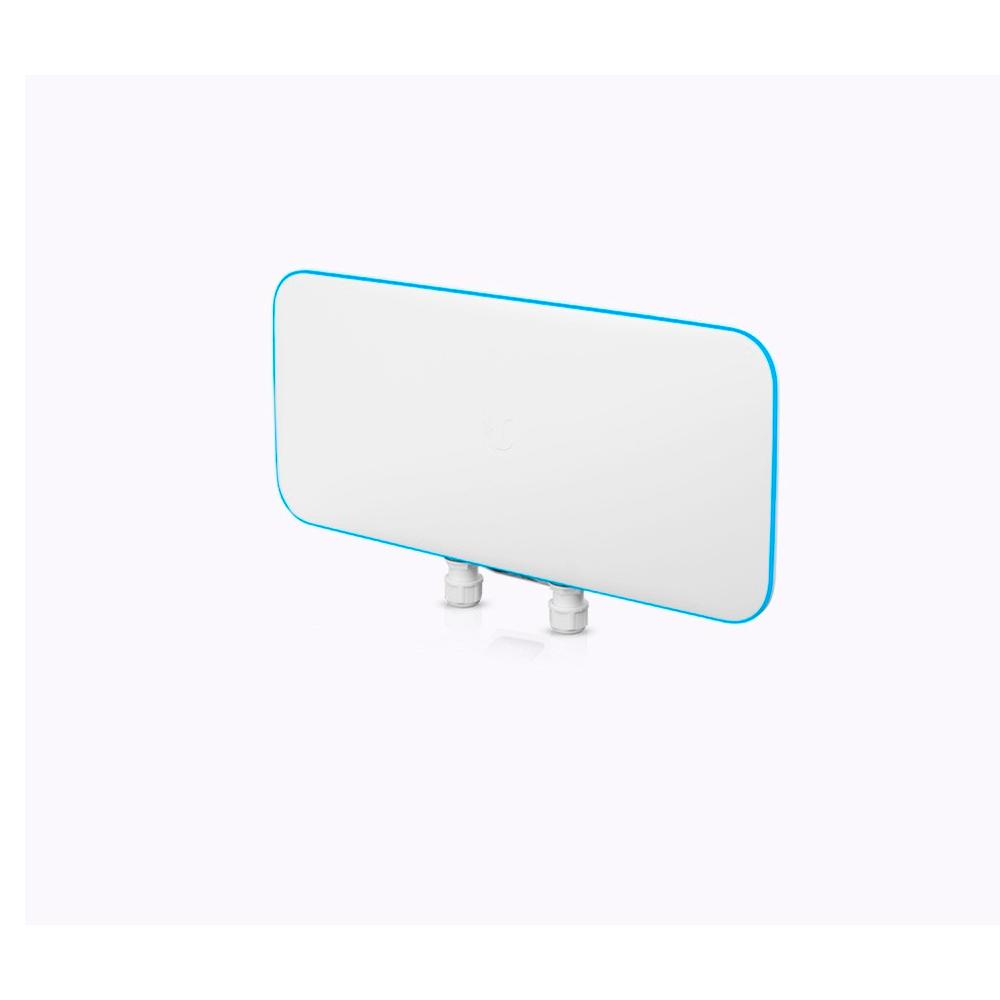

                               UniFi WiFi BaseStation XG

The 802.11AC Wave2 Super-Capacity Indoor/Outdoor Quad-Radio WiFi Basestation with RF Channel Filtering and Directional Beam Shaping Antenna Technology.

Supporting simultaneous 5 GHz tri-band 4x4 multi-user MIMO connectivity, the Quad-Radio 802.11ac Wave 2 Access Point with Dedicated Security & Beamforming Antenna from Ubiquiti Networks is designed for deployments in which a large number of users, up to 1500 clients, will be accessing the network such as stadiums, concert venues, and more.


  • Designed for Stadiums and Event Venues

Featuring maximum wireless performance combined with wireless security, the UniFi WiFi BaseStationXG is ideal for ultra high density environments, such as event venues, festivals, and stadiums, where there are numerous clients in a relatively small space.

Superior Capacity for Large Crowds

Featuring low-latency QoS (Quality of Service), the UniFi WiFi BaseStationXG supports up to 1500 clients with 12 MU-MIMO chains (500 clients with 4 MU-MIMO chains per client radio).

  • RF Energy Steering

True cellular Wi-Fi using multiple APs – its selectable directional beamforming antenna allows for cell size optimization to maximize coverage.

  • RF Channel Filtering

Provides isolation for seamless parallel radio operation.

  • Spectral Security

The UniFi WiFi BaseStationXG delivers unprecedented wireless awareness and security, including tools for real-time spectrum monitoring, airtime utilization analytics, and intrusion detection/prevention. Using a persistent spectral scan, the AP constantly monitors the RF environment to check for both potential malicious activity and the best channel for network performance


  • Advanced Features in UniFi Controller

Featuring an intuitive user interface, the UniFi Controller conducts device discovery, provisioning, monitoring, and configuration for centralized control of UniFi devices.

Model: UWB-XG

  • Dimensions (Without Mount)

471.1 x 257.5 x 94.3 mm
(18.55 x 10.14 x 3.713")

  • Weight (Without Mount)

3.2 kg
(7.055 lb)

  • Networking Interface

(1) 10/100/1000 RJ45 Ethernet Port
(1) 1/10 Gbps ICM Ethernet Port

Button Reset

  • LED

RGB, Software-Controllable

  • Power Method

802.3bt PoE

  • Power Supply

50VDC, 1.2A Gigabit PoE


  • Max. Power Consumption


  • Supported Voltage Range


  • Max. TX Power

25 dBm

  • MIMO

(3) 4 x 4

  • Operating Frequency

5 GHz

  • Antenna

Integrated Dual-Mode Antenna Array

  • Antenna Gain Small CellLarge Cell

15 dBi
10 dBi

  • Antenna Beamwidth Small Cell Large Cell


  • Wi-Fi Standards

802.11 a/n/ac/ac-wave2

  • Wireless Security

WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES), 802.11w/PMF

  • Mounting

VESA-Compatible Mount, Pole/Wall (Brackets Included)
