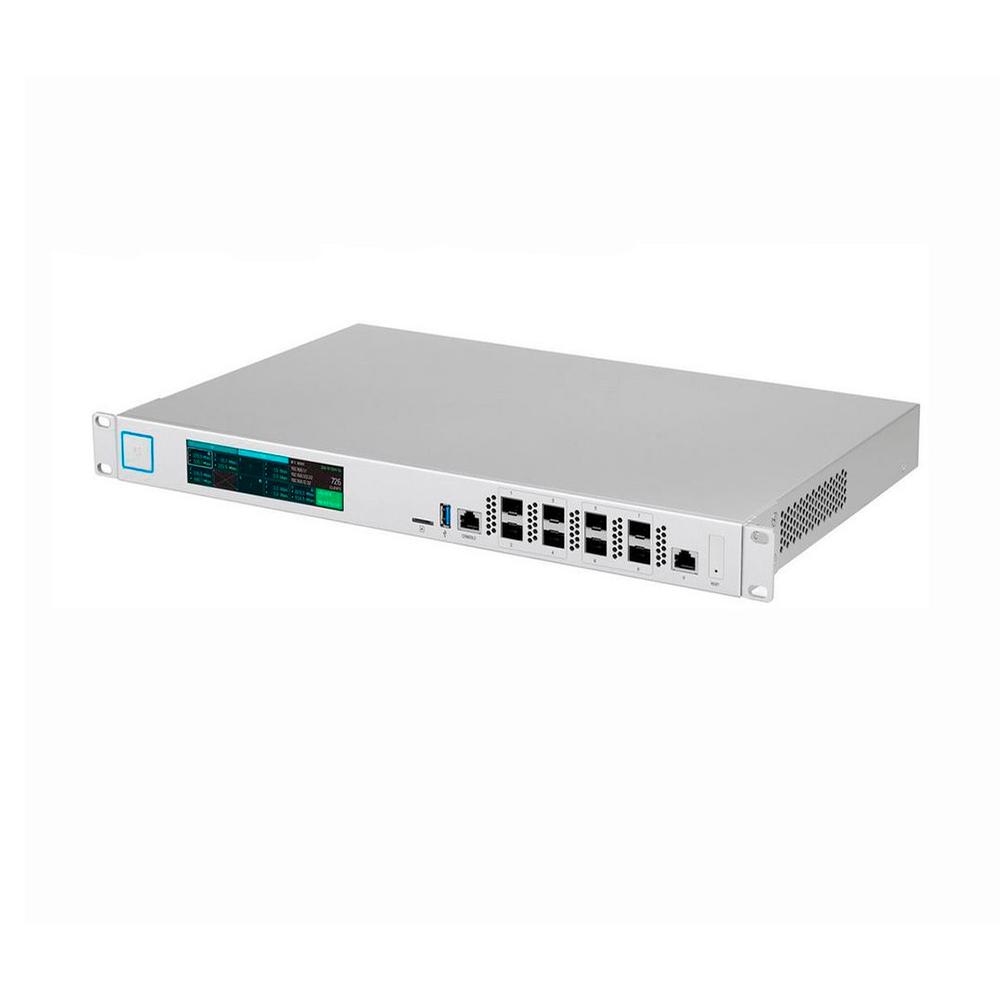

Ubiquiti Networks Unifi Security Gateway Router XG USG-XG-8 80 Gbps (8) 10 Gbps SFP+ Ports

USG-XG-8

Ubiquiti
Ubiquiti Networks Unifi Security Gateway Router XG USG-XG-8 80 Gbps (8) 10 Gbps SFP+ Ports (16 GB DDR4 RAM / 16 Cores 1.8 GHz / 20,000 Clients)


Product Highlights
  • Ubiquiti Unifi Security Gateway Router XG USG-XG-8 80 Gbps (8) 10 Gbps SFP+ Ports
  • Build your secure and flexible network with the Ubiquiti Networks UniFi Security Gateway Router XG 8-Port 10G SFP+ , part of the UniFi Enterprise System
  • The USG-XG-8 is an enterprise 10G gateway that offers robust security and advanced routing features.
  • Throughput 80 Gbps 8x10 Gbps
  • Support: 20,000 Clients
  • Model#: USG-XG-8

    Sku: IT2010.5820.116982



    MSRP: $2,899.00

    Out of stock

    Your Price: $2,899.00


    Model: USG-XG-8

                           UniFi XG Security Gateway Router

                                                    8-Port 10G SFP+ XG

    Build your secure and flexible network with the Ubiquiti Networks UniFi Security Gateway Router XG 8-Port 10G SFP+ , part of the UniFi Enterprise System. The USG-XG-8 is an enterprise 10G gateway that offers robust security and advanced routing features. Eight independent SFP+ ports provide full-capacity support of your 10G networks.



    Designed for ease of use and reliability, the USG-XG-8 features a vivid built-in touchscreen display and modular PSUs for power. The display provides administrators with real-time device and network monitoring without the need for a separate UI device. For power, the USG-XG-8 utilizes hot-swappable PSUs, providing options for backup, redundancy, and DC power capacity.

    With eight Gb/s SFP+ ports, the USG-XG-8 8-Port 10G SFP+ XG Gateway Router from Ubiquiti Networks is capable of handling a large amount of network traffic from as many as 50,000 clients and 10,000 access points.

    • High-Capacity Performance

    Featuring Gb/s SFP+ interfaces, the Security Gateway XG supports up to 50,000 clients and 10,000 APs for enterprise-level businesses, stadiums, hotels, and large-scale deployments.

    • Powerful Firewall Performance

      The UniFi Security Gateway XG offers advanced firewall policies to protect your network and its data.

    • LCD Touchscreen Display

    The built-in touchscreen display on the UniFi Security Gateway XG provides administrators with real-time device and network monitoring without the need for a separate UI device.

    • UniFi Controller

    Easily accessible through any standard web browser and the UniFi mobile app (iOS or Android), the UniFi Controller software features an intuitive UI and support for the next generation of UniFi devices. Important network details are logically organized for a simplified, yet powerful, interface.

    Product Features
    • (8) 10G SFP+ Ethernet Ports
    • Built in Touch Screen display
    • (1) Gigabit RJ45 Ethernet Port
    • (2) Hot-Swappable Modular PSU Bays
    • (1) 100W AC/DC Modular PSU Included
    • Bluetooth Management Interface
    • 1U Rack-Mountable
    • Real-Time Intrusion Protection at over 1 Gbps Throughput
    • 50 Gbps Routing Capability with Deep Packet Inspection




    Product Specifications
    • Dimensions: 442.4 x 285.6 x 43.7 mm (17.42 x 11.24 x 1.72")
    • Weight with Mount Bracket: 4.44 kg (9.79 lb)
    • Weight Without Mount Brackets: 4.54 kg (10.01 lb)
    • Max. Power Consumption: AC/DC 100W
    • Power Method: 100-240 VAC, 50-60 Hz Universal Input
    • Power Supply: (2) Hot-Swappable AC/DC or DC/DC 100W PSU (1 AC/DC PSU Included)
    • Supported Voltage Range: 100 to 240 VAC
    • LCD: 4.7" Wide-Viewing Angle True Color TFT-LCD Touch Screen
    • System LED: Status
    • On-Board Flash Storage: 8 MB NOR Flash 4 GB eMMC NAND Flash
    • Interfaces
        Networking: (8) 10 Gbps SFP+ Ports (1) 1 Gbps RJ45 Ethernet Port
        Management: (1) RJ45 Ethernet In-Band
        (1) RJ45 Serial Out-of-Band
        (1) Bluetooth 4.0
    • IPS Throughput: 1 Gbps
    • Processor: MIPS64 16-Core, 1.8 GHz
    • System Memory: 16 GB DDR4 RAM
    • Rack-Mount: Yes, 1U
    • ESD/EMP Protection
    • Operating Temperature: -5 to 40° C (23 to 104° F)
    • Operating Humidity: 5 to 95% Noncondensing
    • Certifications: CE, FCC, IC


    Product Includes
    • (1) UniFi Security Gateway
    • (1) AC/DC 100W Power Supply
    • (1) User Guide
