Ubiquiti Networks airCube ISP ACB-ISP-US Wireless-N300 Wi-Fi airMAX Home Wi-Fi Access Point
Model#: ACB-ISP-US
Sku: IT2008
MSRP: $32.00
In Stock
Your Price: $32.00
Model: ACB-ISP-US
Ubiquiti airCube ISP 802.11n Wi-Fi router with PoE in/out

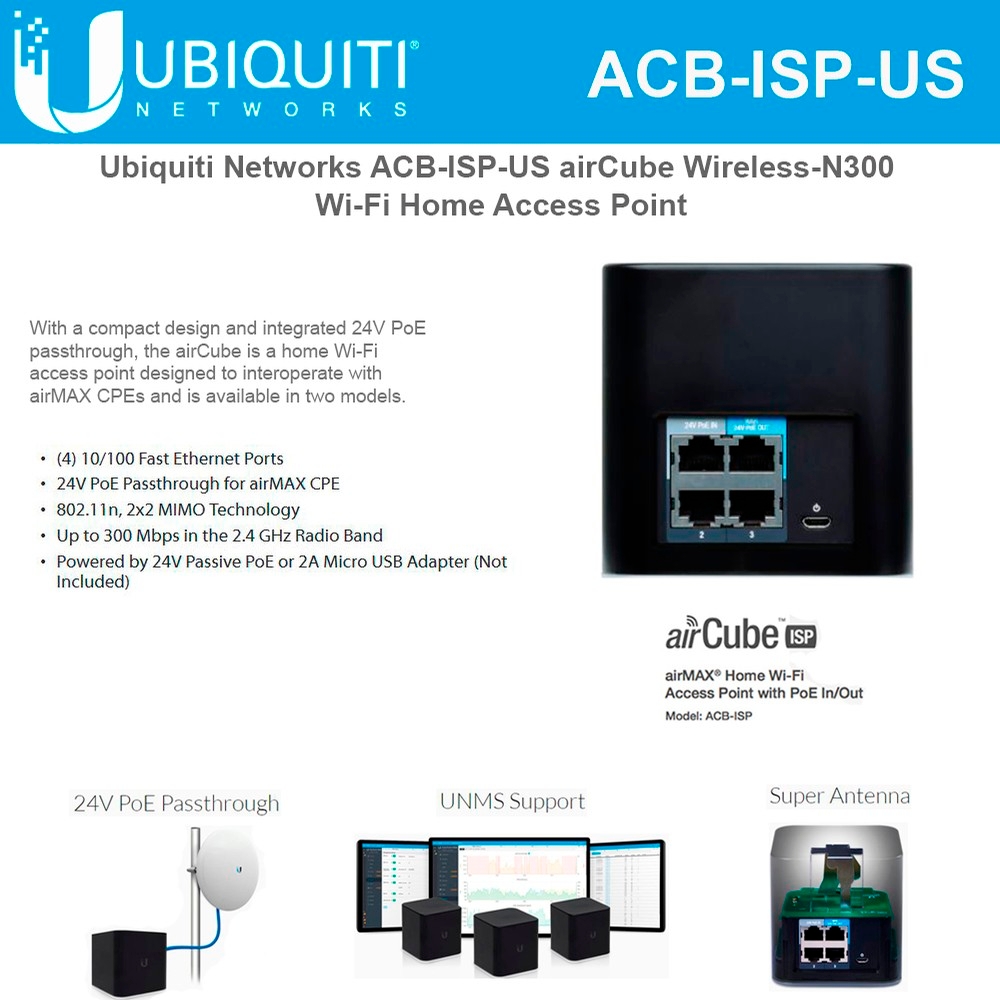

Ubiquiti Networks introduces the airCube, a cost-effective wireless access point for use in your customer deployments. With a compact design and integrated 24V PoE passthrough, the airCube is a home Wi-Fi access point designed to interoperate with airMAX CPEs and is available in two models. The airCube's attractive design means it can be positioned anywhere in the room, improving Wi-Fi performance. Use the intuitive U Mobile app for iOS and Android to install and configure airCube. Innovative Super Antenna provides wide-area coverage beyond regular Wi-Fi access points. Management options feature a graphical user interface designed for streamlined setup and control.
Specifications ACB-ISP-US
| Dimensions | 87.80 x 89.50 x 89.25 mm (3.46 x 3.52 x 3.51") |
| Weight | 215 g (7.58 oz) |
| Power Supply | 5V |
| Power Method | PoE 24V In on LAN Port 1 or 2A Micro USB Adapter (Not Included) |
| Supported Power Voltage | 4.95-5.05V |
| Max. Power Consumption | 5W |
| PoE Out | Controllable 24V PoE Out (+4, 5; -7, 8) on WAN Port |
| Management Interface | Wi-Fi / Ethernet |
| Networking Interface | (4) 10/100 Fast Ethernet Ports |
| LED | Status |
| Max. TX Power | 22 dBm |
| Antenna Gain | 4 dBi |
| Max. Speeds | 300 Mbps |
| Enclosure Characteristics | Black Plastic |
| ESD/EMP Protection | ±24 kV RJ-45 Interface |
| Operating Temperature | -10 to 50° C (-14 to 122° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | CE, FCC, IC |
