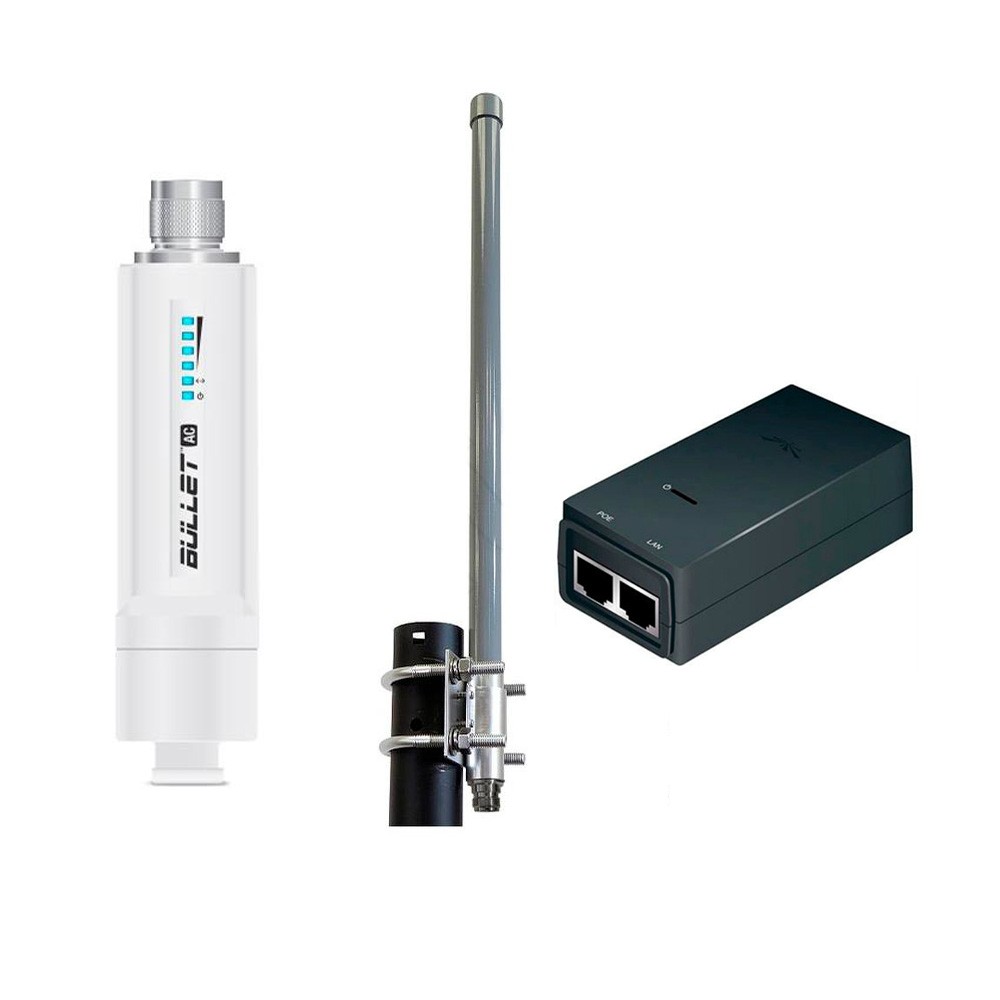

Model: B-DB-AC-US (1 UNIT)

Bullet Dual-Band AC airMAX ac Bullet Radio with Dedicated WiFi Management 802.11ac, 2.4/5 GHz, Dual-band, 22dBm ouput power, PoE, N-type.



• Fully Integrated Radio

Launched in 2008, the Bullet design helped transform the WISP industry. Its unique design upgrades link performance and reduces deployment complexity.



•  Carrier-Class Throughput

The Bullet AC delivers up to 300+ Mbps real TCP/IP throughput.



• Durability to Last Outdoors

The robust, weatherproof case withstands harsh outdoor conditions.



• Plug and Play Integration

Connect the Bullet AC to any existing antenna with an N-type female connector to create an airMAX basestation.



+

Model: ANT5458Q12V

ANT5458Q12V Omni Antenna 12dbi 5Ghz N-Female Connector

• Frequency Range - 5470-5850 MHz
• Bandwidth - 380 MHz
• Gain - 12dBi
• Vertical Beamwidth - 7º
• Horizontal Beamwidth - 360º
• V.S.W.R - ≤2.0
• Nominal Impedance - 50 Ω
• Polarization - Vertical
• Max. Power - 100 W
• Connector Type - N Female
• Dimension - φ20x700 mm
• Weight 500 g
• Rated Wind Velocity - 60 m/s
