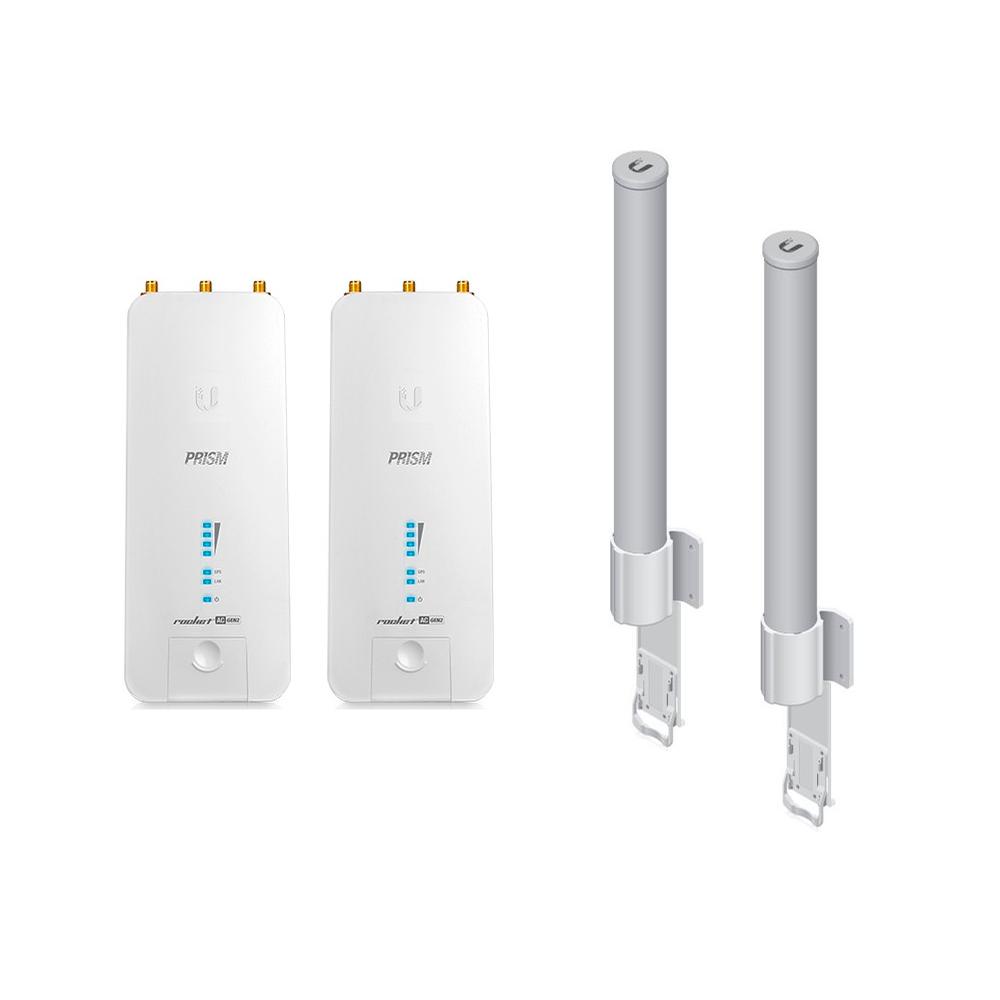

Ubiquiti Rocket Prism Access Point RP-5AC-GEN2-US BaseStation x2 w/ Omni Antenna AMO-5G13 13dBi x2


Ubiquiti Networks Rocket Prism Access Point AC RP-5AC-GEN2-US airMAX ac BaseStation 5GHz (2-Pack) with airMAX Omni Antenna AMO-5G13 13dBi (2-Pack)

Product Highlights
  • Ubiquiti Rocket Prism ac RP-5AC-GEN2-US (2 Units): 5GHz Gen2 airPrism AC Radio BaseStation US offers wireless performance in high-density areas
  • The Rocket Prism access points incorporate high-performance airMAX ac and airPrism technologies for maximum performance of wireless networks in high-density areas 5 GHz.
  • The Rocket Prism AC supports GPS Sync for faster, more scalable, carrier-class networks, with 90% higher throughout than competing solutions.
  • airMAX 2x2 Omni Antenna AMO-5G13 (2 Units) 5GHz Frequency 13 dBi 360° coverage Antenna Gain
  • Pair the airMAX Omni Antenna with a Rocket M BaseStation for 360° coverage in Point-to-MultiPoint (PtMP) networks.
  • Model#: RP-5AC-Gen2-US-BD22

    Sku: IT1990.5779.115002

    MSRP: $1,029.99

    Out of stock

    Your Price: $829.00

    Model: RP-5AC-Gen2-US (2 Units)

    The RocketPrism 5AC Gen 2 5GHz features airMAX ac and airPrism technologies for maximum wireless performance in high-density areas. The RP-5AC-Gen2 is an airMAX Rocket with airPrism, part of the wide selection of products from Ubiquiti Networks.


    • Management Wi-Fi Radio

    The Rocket® Prism AC integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.


    • Improved Surge Protection

    The Rocket Prism AC features enhanced protection against ESD events.

    • GPS Synchronization

    The Rocket Prism AC supports GPS Sync for faster, more scalable, carrier-class networks, with 90% higher throughout than competing solutions.


    Model: AMO-5G13 (2 Units)

    The Ubiquiti Networks AirMAX Omni 2x2 Dual Polarity MIMO Antenna is designed to be compatible with an optional Rocket M BaseStation to deliver 360° wireless networking. This dual-polarity antenna operates under the 5 GHz frequency and offers a gain of 13 dBi. It delivers 2x2 MIMO performance and supports airMAX technology, which uses a Time Division Multiple Access protocol to send and receive data at pre-designated time slots.

    • Breakthrough 2x2, Dual-Polarity Design

    airMAX® Omni Antennas are the first of their kind to feature a patented, dual-polarity omni design.

    • Powerful Omnidirectional Coverage

    airMAX Omni Antennas provide 360° coverage, 2x2 MIMO performance in Line-of-Sight (LOS) or Non-Line-of-Sight (NLOS) applications.


    • Plug and Play Integration

    Every airMAX® Antenna has a built-in Rocket™ mount, so no tools are needed to install the Rocket BaseStation.


    • RF Connectors (2) RP-SMA (Waterproof ), (1) GPS* (Waterproof)
    • Processor Specs Atheros MIPS 74Kc
    • PtP Mode: 10/20/30/40/50/60/80 MHz
    • PtMP Mode: 10/20/30/40 MHz
    • Modes: Access Point, Station


    AMO-5G13 (2 Units)

    • 5 GHz Operating Frequency
    • 13 dBi Antenna Gain
    • 360° Coverage
    • Weatherproof RF Jumpers Included
    • Universal Pole Mount
    • Compatible with Rocket M BaseStations
