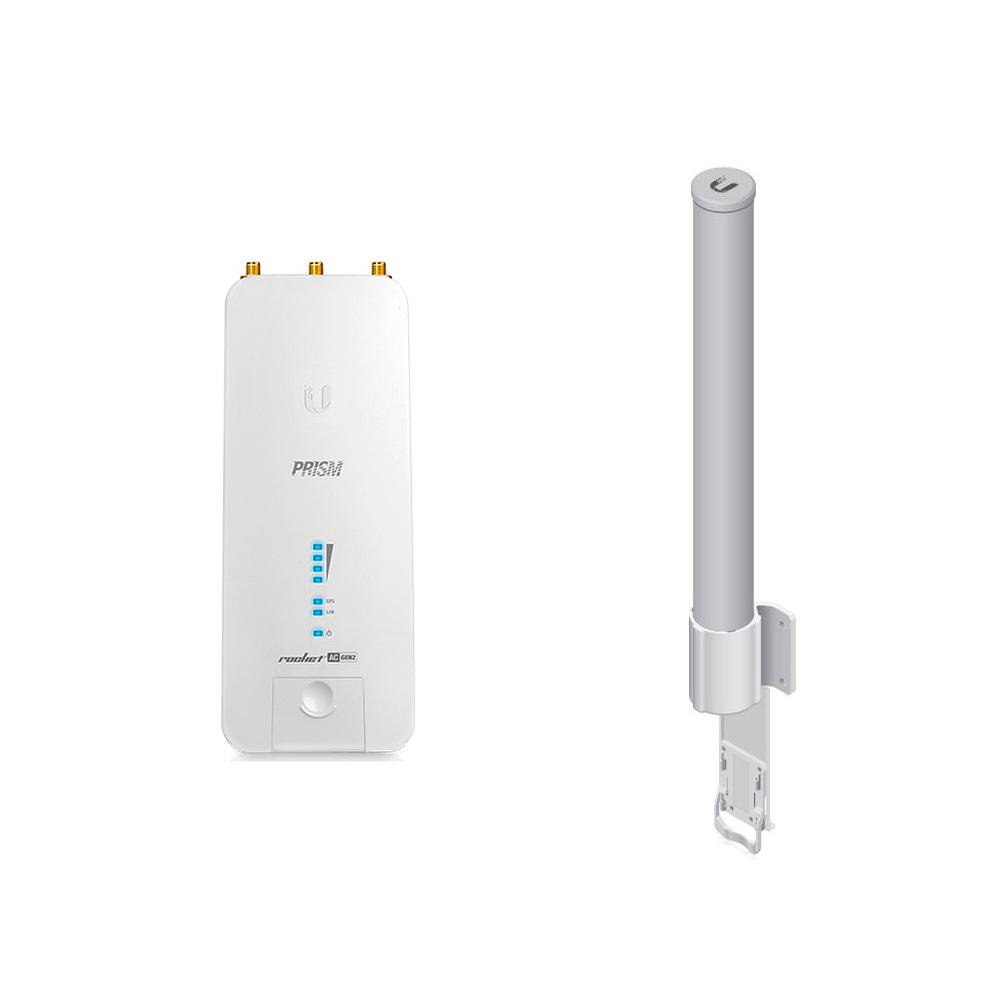

Ubiquiti airMAX Rocket Prism 5AC Gen2 RP-5AC-Gen2 11ac w/AMO-5G13 13dBi airMAX 5GHz Omni Antenna 360


Ubiquiti airMAX Rocket 5AC Prism Gen 2 RP-5AC-Gen2 AP 5GHz airMAX ac Radio BaseStation, features both airMAX ac and airPrism technologies pair w/AMO-5G13 13dBi airMAX 5GHz Omni Antenna 360 coverage, maximum wireless performance in high-density areas.

Product Highlights
  • Ubiquiti Rocket Prism ac RP-5AC-GEN2-US 5GHz Gen2 airPrism AC Radio BaseStation US offers wireless performance in high-density areas
  • The Rocket Prism access points incorporate high-performance airMAX ac and airPrism technologies for maximum performance of wireless networks in high-density areas 5 GHz.
  • The Rocket Prism AC supports GPS Sync for faster, more scalable, carrier-class networks, with 90% higher throughout than competing solutions.
  • airMAX 2x2 Omni Antenna AMO-5G13 5GHz Frequency 13 dBi 360° coverage Antenna Gain
  • Pair the airMAX Omni Antenna with a Rocket M BaseStation for 360° coverage in Point-to-MultiPoint (PtMP) networks.
  • Model#: RP-5AC-Gen2-US-BD21

    Sku: IT1989.5777.114904

    MSRP: $414.00

    Out of stock

    Your Price: $414.00

    Model: RP-5AC-Gen2-US (1 Unit)

    The RocketPrism 5AC Gen 2 5GHz features airMAX ac and airPrism technologies for maximum wireless performance in high-density areas. The RP-5AC-Gen2 is an airMAX Rocket with airPrism, part of the wide selection of products from Ubiquiti Networks.

    • 5 GHz Frequency Band

    With plenty of available spectrum, this unlicensed band works well for long-distance links. The Rocket Prism 5AC Gen 2 features full-band 5 GHz coverage and maximizes output power for the US market, meeting strict OOBE requirements.

    • High Performance:

    Deploy the Rocket Prism 5AC Gen 2 for PtP or PtMP links in high RF noise environments to take full advantage of its design and capabilities


    Model: AMO-5G13 (1 Unit)

    The Ubiquiti Networks AirMAX Omni 2x2 Dual Polarity MIMO Antenna is designed to be compatible with an optional Rocket M BaseStation to deliver 360° wireless networking. This dual-polarity antenna operates under the 5 GHz frequency and offers a gain of 13 dBi. It delivers 2x2 MIMO performance and supports airMAX technology, which uses a Time Division Multiple Access protocol to send and receive data at pre-designated time slots.

    •  Pair the RocketM’s radio with the airMAX Omni’s reach to create a powerful, 360° omnidirectional basestation.. This seamless integration gives network architects unparalleled flexibility and convenience.

    RP-5AC-Gen2 (1 Unit)

    • Interface (1) 10/100/1000 Ethernet Port
    • RF Connectors (2) RP-SMA (Waterproof ), (1) GPS* (Waterproof)
    • Processor Specs Atheros MIPS 74Kc
    • PtP Mode: 10/20/30/40/50/60/80 MHz
    • PtMP Mode: 10/20/30/40 MHz
    • Modes: Access Point, Station


    AMO-5G13 (1 Unit)

    • 5 GHz Operating Frequency
    • 13 dBi Antenna Gain
    • 360° Coverage
    • Weatherproof RF Jumpers Included
    • Universal Pole Mount
    • Compatible with Rocket M BaseStations
