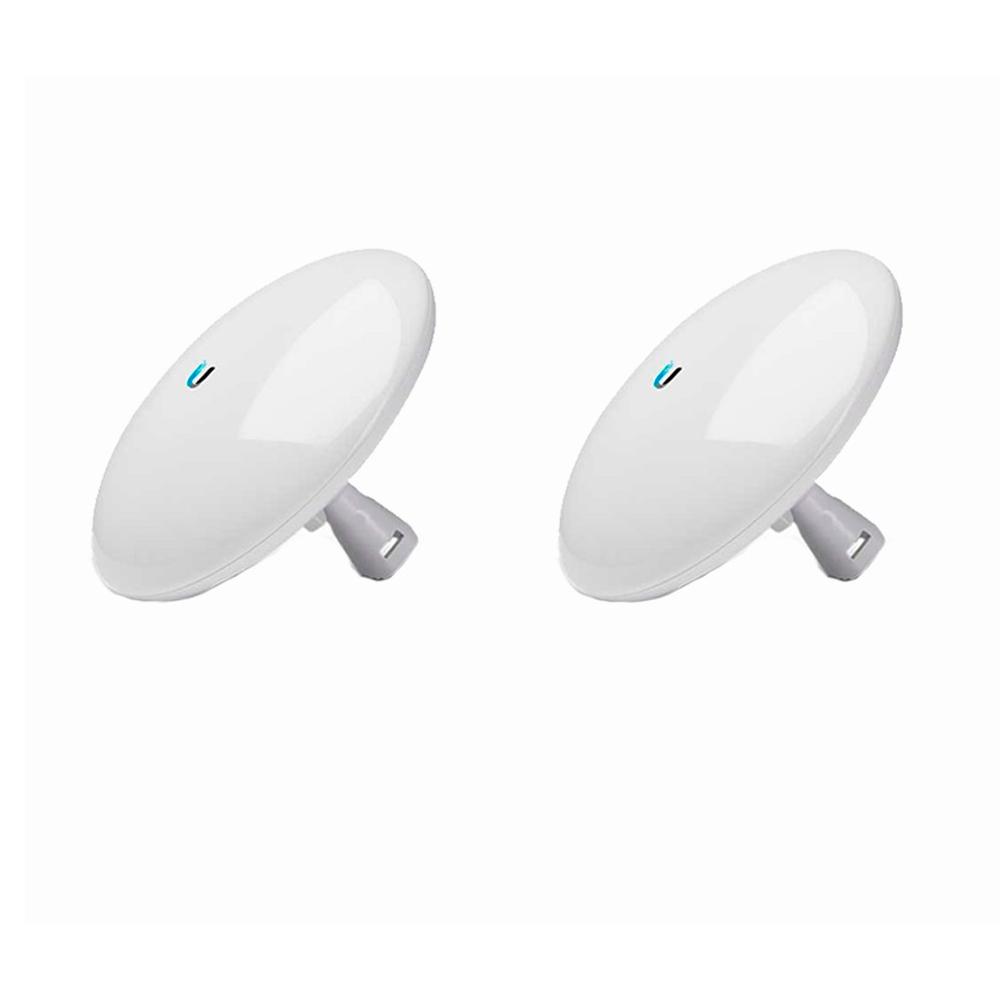

Ubiquiti Networks NanoBeam 5AC Gen2 5GHz 2 units CPE Dedicated Management Radio High-Performance airMAX ac Bridge - US Version

NBE-5AC-Gen2-US-2PK

Ubiquiti
Ubiquiti Networks NBE-5AC-Gen2 5GHz NanoBeam CPE Dedicated Management Radio High-Performance airMAX ac Bridge (2-Pack)


Product Highlights
  • Ubiquiti NanoBeam AC NBE-5AC-Gen2-US (2-Pack) 5GHz High-Performance airMAX ac Bridge CPE with Dedicated Management Radio
  • Incorporating innovative industrial design with proprietary airMAX ac technology, the NanoBeam AC is ideal for CPE deployments requiring maximum performance from the smallest possible footprint.
  • The NanoBeam AC integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.
  • The NanoBeam AC features enhanced protection against ESD events.
  • The form factor of the NanoBeam AC features the highest gain for its size. The NanoBeam AC’s excellent beam directivity provides the best performance in high-noise environments.
  • Model#: NBE-5AC-Gen2-US-2PK

    Sku: IT1987.5772.114689



    MSRP: $228.00

    Out of stock

    Your Price: $198.00


    Model: NBE-5AC-Gen2 (2 Pack)

    Ubiquiti Networks NBE-5AC-Gen2 US is a Gen 2 airMAX NanoBeam. This product operates on both 2.4GHz and 5GHz frequencies, with a 19dBi gain. You can now setup your NanoBeam through the UMobile app.

    Incorporating innovative industrial design with proprietary airMAX ac technology, the NanoBeamAC is ideal for CPE deployments requiring maximum performance from the smallest possible footprint.



    • Management Wi-Fi Radio

    The NanoBeam AC integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.

    • Improved Surge Protection

    The NanoBeam AC features enhanced protection against ESD events.

    • Superior Processing

    Ubiquiti's airMAX engine with custom IC dramatically improves TDMA latency and network scalability. The custom silicon provides hardware acceleration capabilities to the airMAX scheduler, to support the high data rates and dense modulation used in airMAX ac technology.

    • Incredible Antenna “Beam” Performance

    The form factor of the NanoBeam AC features the highest gain for its size. The NanoBeam AC’s excellent beam directivity provides the best performance in high-noise environments.

    Operating Frequency:

    • 5150-5250 MHz*, 5250-5350 MHz*, 5470-5725 MHz*, 5725-5850 MHz*

    Dimensions:

    • 189 x 189 x 125 mm (7.44 x 7.44 x 4.92")

    Power Supply

    • 24V, 0.5A Gigabit PoE Adapter (Included)

    Max. Power Consumption

    • 8.5W

    Gain

    • 17dBi

    Networking Interface

    • (1) 10/100/1000 Ethernet Port Wi-Fi for Management

    Processor Specs

    • Atheros MIPS 74Kc, 720 MHz

    Memory

    • 128 MB DDR2, 8 MB Flash

    Channel Sizes

    • PtP: 10/20/30/40/50/60/80 MHz
    • PtMP:10/20/30/40 MHz
