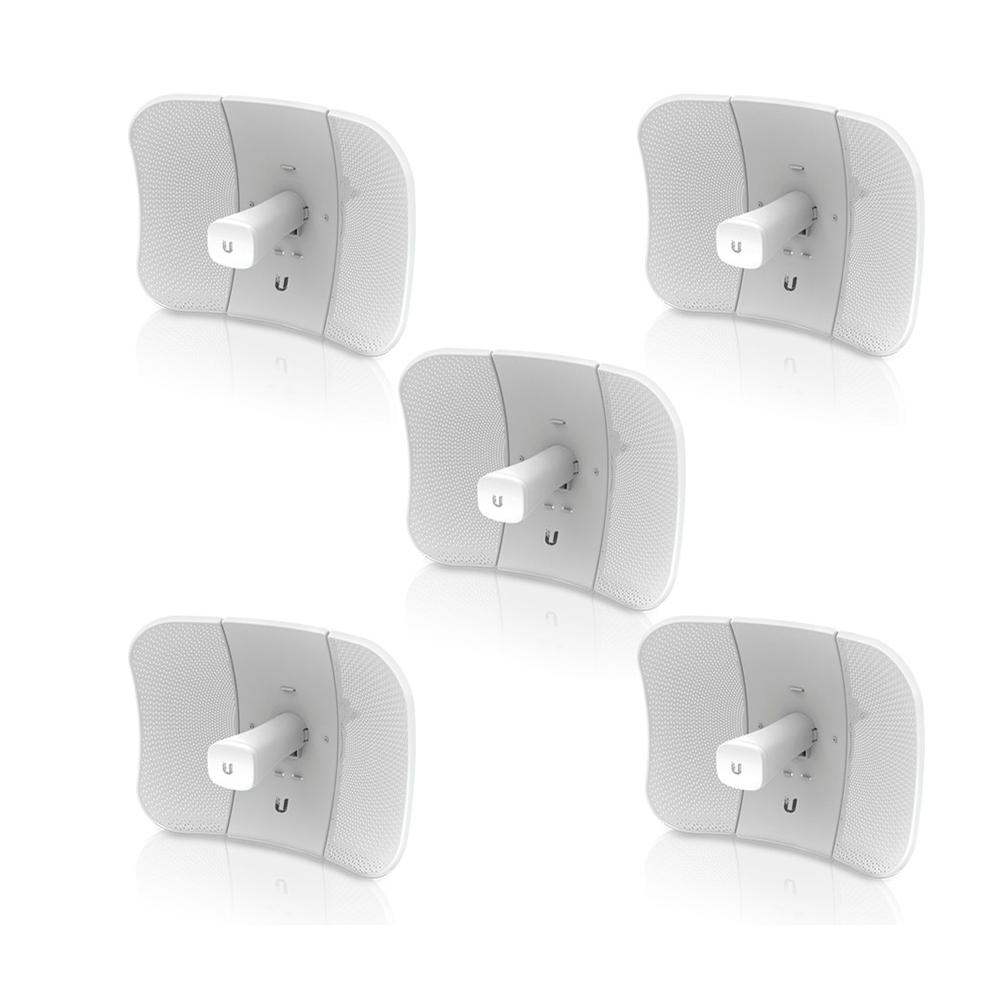

Ubiquiti LBE-5AC-Gen2-5-US LiteBeam Gen2 2X2 MIMO airMAX 5GHz 23dBi 450Mbps CPE
Model#: LBE-5AC-Gen2-5-US
Sku: IT1985
Out of stock
Model: LBE-5AC-Gen2-5
The LiteBeam AC is an ultra-lightweight 2x2 MIMO airMAX ac CPE device with incredible range and disruptive pricing.
The LiteBeam 5AC from Ubiquiti Networks features a two-mount system that provides adjustment flexibility along both axes for versatile mounting options. The mounting system, couples with the built-in bubble level, enables quick and easy alignment. Ubiquiti Networks launches the latest generation of airMAX CPE (Customer Premises Equipment), the LiteBeam 5AC Gen 2, with dedicated Wi-Fi management.
- High-Gain, Directional, 2x2 MIMO Antenna
The LiteBeam AC provides 23 dBi of gain for long-distance connectivity and uses a directional antenna pattern for improved noise immunity.
- Powerful Wireless Features:
- Access Point PtMP airMAX Mixed Mode
- airMAX ac Protocol Support
- Long-Range Point-to-Point (PtP) Link Mode
- Selectable Channel Width
- PtP: 10/20/30/40/50/60/80 MHz
- PtMP: 10/20/30/40 MHz
- Automatic Channel Selection
- Transmit Power Control: Automatic/Manual
- Automatic Distance Selection (ACK Timing)
- Strongest WPA2 Security
Product Specifications:
• Dimensions: 358 x 271.95 x 272.5mm (14.09 x 10.71 x 10.73")
• Weight:
Without Mount: 800g (1.76lbs)
With Mount: 980g (2.16lbs)
• Power Supply: 24V, 0.3A Gigabit PoE Adapter (included)
• Max. Power Consumption: 7W
• Power Method: Passive PoE (Pairs 4,5+;7,8 Return)
• Supported Voltage Range: 24V±10%
• Operating Frequency: 2412 - 2462MHz ( Management Radio ) / 5150 - 5875MHz
• Gain: 23dBi
• Networking Interface: (1) 10/100/1000 Ethernet Port
• Processor Specs: MIPS 74Kc
• Memory: 64 MB DDR2
• LEDs: Power, Ethernet
• Channel Sizes:
PtP Mode: 10/20/30/40/50/60/80MHz
PtMP Mode: 10/20/30/40MHz
• Enclosure Characteristics: Reflector (SGCC 0.6T) / Plastic: PC
• Mounting: Pole-Mounting Kit (Included)
• Wind Loading: 275N @ 200km/h (61.8lbf @ 125mph)
• Wind Survivability: 200km/h (125mph)
• ESD/EMP Protection: ±24kV Contact / Air
• Operating Temperature: -40 to 70°C (-40 to 158°F)
• Operating Humidity: 5 to 95% non-condensing
• Certifications: CE, FCC, IC
Product Includes:
• (1) Antenna Feed
• (1) Central Reflector Panel
• (2) Side Reflector Panels
• (1) Feed Receiver
• (1) Azimuth Mount
• (1) Elevation Mount
• (1) Metal Strap
• (1) Knob Kit
• (1) Gigabit PoE (24V, 0.3A) with Mounting Bracket
• (1) Power Cord
• (1) Quick Start Guide
