Ubiquiti Networks NanoStation M NSM2 US 2.4GHz 2x2 MIMO Indoor/Outdoor airMAX CPE Router 802.11n

NSM2 US

Ubiquiti
Ubiquiti Networks NanoStation M NSM2 US 2.4GHz 2x2 MIMO Indoor/Outdoor airMAX CPE Router 802.11n

Model#: NSM2 US

Sku: IT1984.5740.113881



MSRP: $89.00

In Stock

Your Price: $89.00




Model: NSM2-US

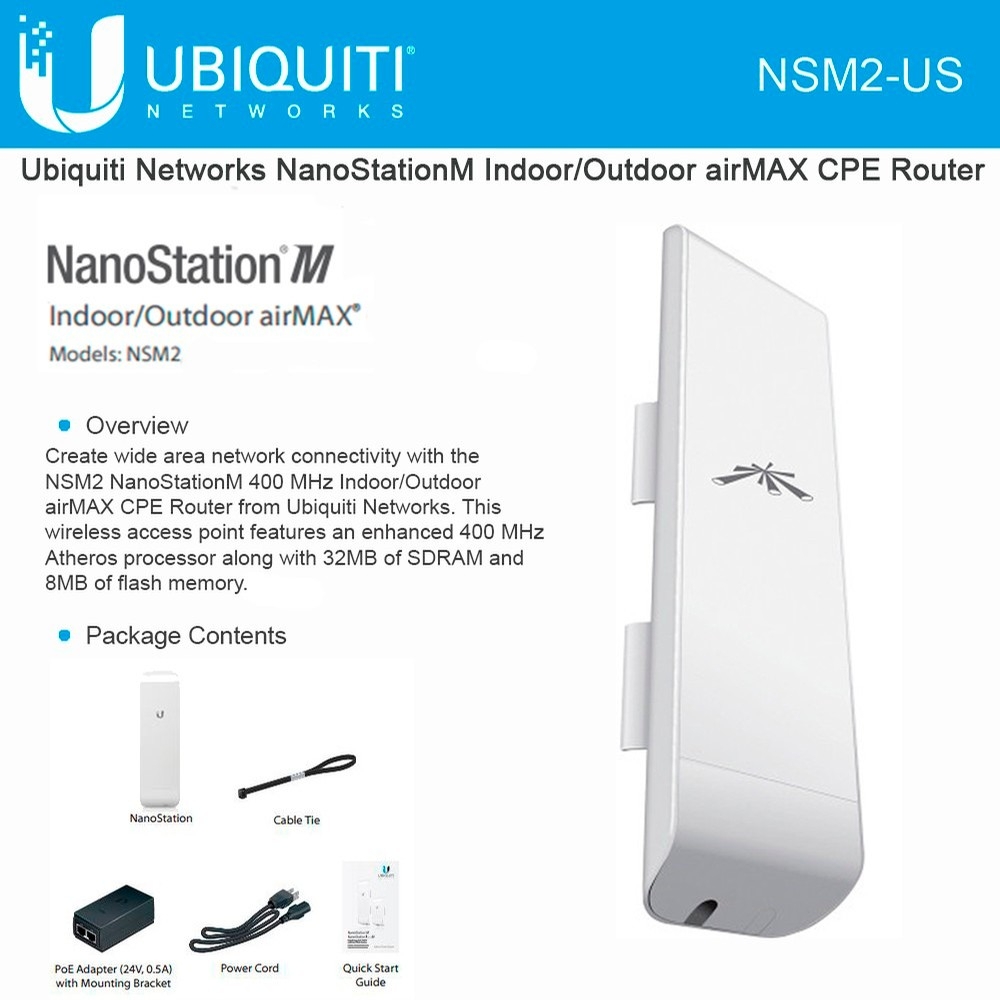

NanoStation M Indoor/Outdoor airMAX CPE

NanoStation NSM2: 2GHz 802.11g/n hi-power (27dBm) 2x2 MIMO airMAX TDMA PoE station. This is the ultimate 2Ghz wireless outdoor CPE with integrated 14dBi dual polarity antenna.


Key Features
• Great Performance: 150+ Mbps real outdoor throughput and up to 15km+ range. Typical range is 2-4 miles from a LOS tower running airMAX sector antenna's and Rocket M2's.
• Next-Gen Antenna Design: 11dBi dual-polarity gain with optimized cross-polarity isolation in a compact form-factor.
• Dual Ethernet Connectivity: A secondary Ethernet port with software enabled POE output for seamless IP Video integration.
• Intelligent POE: Remote hardware reset circuitry of NanoStation M allows for device to be reset remotely from power supply location.
• 802.3af 48V Compliant - Easily becomes 802.3af 48V compliant through use of Ubiquiti Instant 802.3af adapter. The adapter sold separately (SKU#I8023AF-OD or I8023AF-ID)
• Easy Installation - Easily mountable to a pole/mast with mounting straps provided. In addition, the NanoStation M2 can be mounted and adjusted in any direction in a 90 degree angle through the use the NanoBracket.

Model:

  • NanoStationM

Processor:

  • Atheros MIPS 24KC, 400 MHz

Memory:

  • 32 MB SDRAM
  • 8 MB Flash

Networking Interface:

  • 2 x 10/100 Ethernet ports

Power Supply (PoE):

  • 24 V / 0.5 A

Max Power Consumption:

  • 8 W

Gain:

  • 11 dBi

Polarization:

  • Dual linear

Enclosure Characteristics:

  • Outdoor UV stabilized plastic

Mounting:

  • Pole mounting kit included

Power Method:

  • Passive Power over Ethernet (pairs 4, 5+; 7, 8 return)

Operating Temperature:

  • -22 to 167°F / -30 to 75°C

Operating Humidity:

  • 5 to 95% condensing

Dimensions:

  • 11.57 x 1.22 x 3.15" / 294 x 31 x 80 mm

Weight:

  • 14.1 oz / 0.4 kg
