PBE-5AC-500 US X4

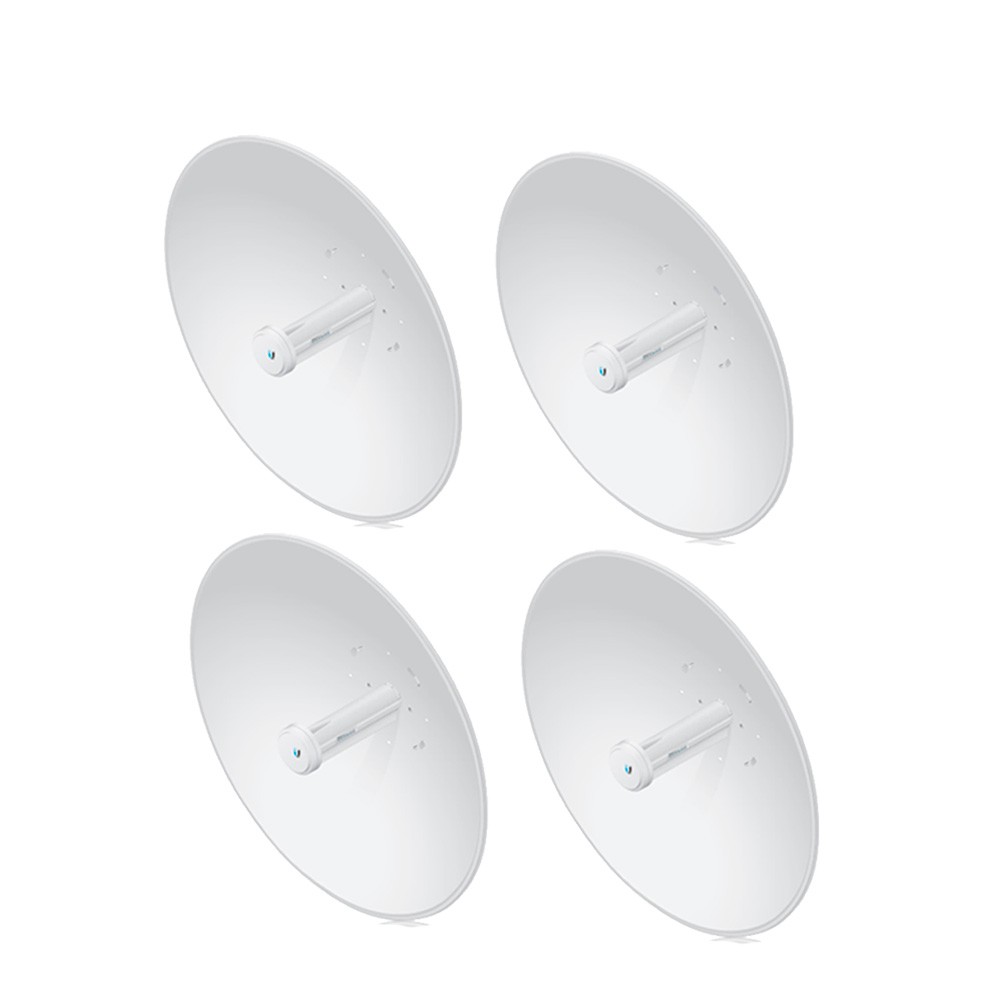

Ubiquiti PowerBeam ac PBE-5AC-500 US (4Pack) 5GHz airMAX Bridge 25+km 450+Mbps

Model#: PBE-5AC-500 US X4

Sku: IT1969

MSRP: $849.99

Out of stock

Model: PBE-5AC-500-US (4 Pack)

The PBE-5AC-500 PowerBeam 5ac is a Ubiquiti Networks of the airMAX PowerBeam 5GHz 27dBi wireless network bridges. Designed for long-range point-to-point applications.

Using airMAX 802.11ac technology, this kit supports up to 450+ Mbps throughput in a small form factor. It launches with PtP functionality, however client mode feature can be added with a firmware upgrade from Ubiquiti. The radio includes a protective radome cover to shield it from the environmental elements.

Product Features:

  •  Processor: Atheros MIPS 74Kc, 720MHz
  •  Memory: 128MB DDR2, 8 MB flash
  •  Networking interface: (1) 10/100/1000 Ethernet port
  •  Channel size: 10/20/30/40/50/60/80MHz (PtP) / 10/20/30/40MHz (PtMP)
  •  Protocol: 802.11AC
  •  Polarization: Dual linear
  •  Gain: 27dBi
  •  ESD/EMP Protection Air: ± 24 kV, Contact: ± 24 kV
  •  Operating Temperature -40 to 70° C (-40 to 158° F)
  •  Operating Humidity 5 to 95% Non-Condensing
  •  Power Supply 24V, 0.5A Gigabit PoE
  •  Power Method Passive PoE (Pairs 4, 5+; 7, 8 Return)
  • Max. Power Consumption 8.5W
  • Gain 27 dBI
