AF-5XHD-US-BD3

Ubiquiti

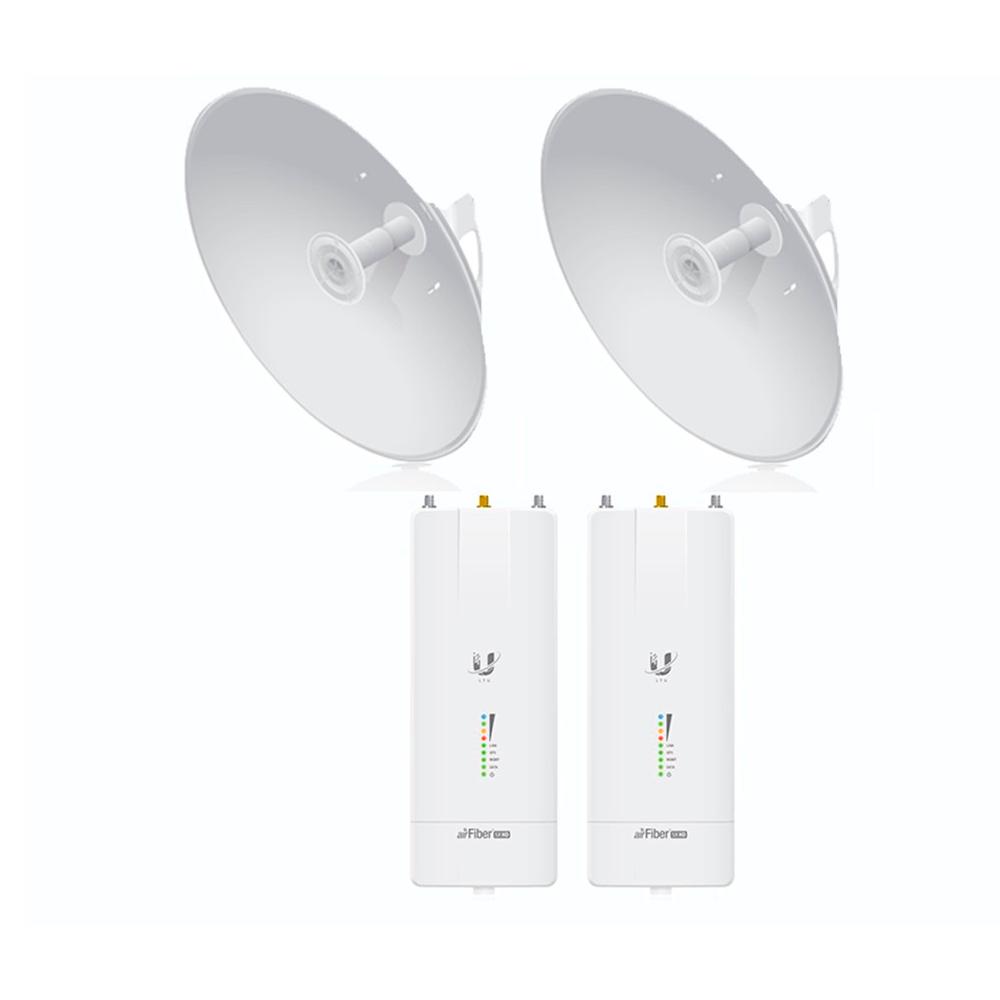

Ubiquiti airFiber 5X HD Radio AF-5XHD-US 5GHz PtP 1Gbps WISP Backhaul (2-Pack) with airFiber X Antenna AF-5G34-S45 Dish 34dBi Slant 45 AF-5X (2-Pack)


Model#: AF-5XHD-US-BD3

Sku: IT1964

Out of stock

Model: AF-5XHD-US (2 UNITS)

Ubiquiti Networks continues to disrupt the wireless broadband market with revolutionary LTU technology that breaks through the limitations of 802.11 Wi-Fi technology. Designed for use in the 5 GHz frequency band, the new airFiber AF-5XHD is Ubiquiti's first LTU radio, offering greater channel bandwidths of up to 100 MHz, and more advanced RF components.

The AF -5XHD features industryleading 21.2 bps/Hz spectral efficiency*, line -rate data packet processing for up to 1.34 Gbps of real data throughput*, and innovative xtreme Range Technology (xRT ™)

  • Pair the AF-5XHD with a compatible Ubiquiti airFiber X antenna or RocketDish antenna for a complete 5 GHz Point-to-Point (PtP) solution.

+

Model: AF-5G34-S45 (2 UNITS)

Ubiquiti Networks AF-5G34-S45 34 dBi Antenna for airFiber AF-5X 5 GHz Carrier Backhaul Radio delivers 2x2 dual-polarity performance. Incorporating a dish reflector design for consistent beam directivity, the airFiber X antenna features robust mechanical design using industrial-strength hardware for outdoor application use.

  • The airFiber X antenna and airFiber X radio have been designed to seamlessly work together.

  • The antenna has a built-in airFiber X radio mount, so installation requires no special tools.

  • Snap the airFiber X radio securely into place and mount the antenna to get the optimal combination of airFiber X antenna and airFiber X radio for your PtP application.

Model: AF-5XHD-US (2 UNITS)

  • Processor: airFiber LTU IC
  • Maximum Throughput: 1 Gbps
  • Maximum Range: 100 km
  • Packets per Second: 2+ million
  • Encryption: WPA2-PSK (AES)
  • OS: airFiber-airOS 8
  • Wireless Modes: AP/CPE


Radio

  • Frequency: 5150-5250 MHz; 5740-5850 MHz
  • Frequency Range: 4.8 - 6.2 GHz
  • Max. Conducted TX Power: 29 dBm
  • Frequency accuracy: <2 ppm
  • Channel Bandwidth: 10/20/30/40/50/60/80/100 MHz

Product Specifications

  • Dimensions: 8.82 x 3.23 x 1.89"
  • Weight: 12.3 oz
  • RF Connectors: (2) RP-SMA weatherproof (CH0, CH1) (1) SMA weatherproof (GPS)
  • Power Supply: 24V, 1A Gigabit PoE Adapter
  • Max. Power Configuration: 6-12 W
  • Supported voltage consumption: 24 - 50 V DC
  • Networking Interface: Data port: (1) 10/100/1000 Ethernet port Management port: (1) 10/100/1000 Ethernet port



+

Model: AF-5G34-S45 (2 UNITS)

  • 5 GHz Frequency
  • 34 dBi Gain
  • 650-mm diameter size
  • 30 dB F/B Ratio
  • 1.6:1 Max. VSWR
  • Up to 125 mph Wind Survivability
