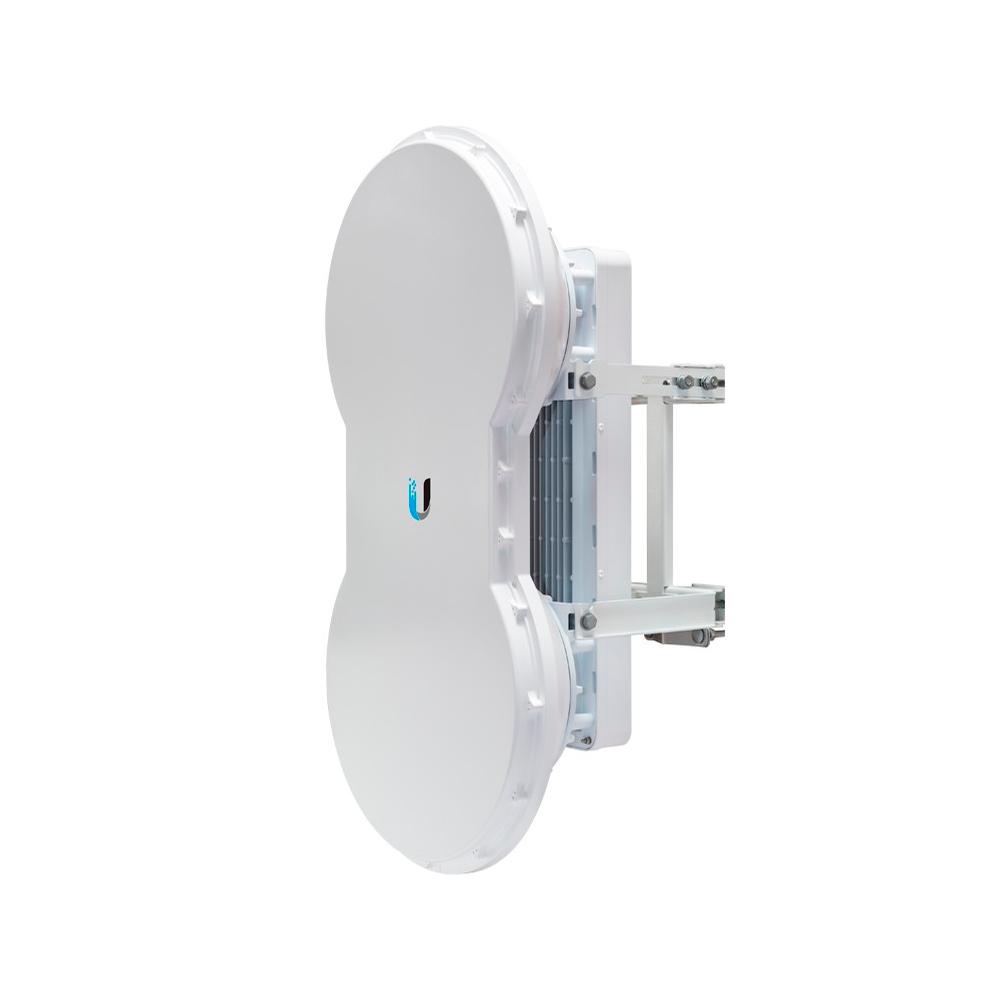

Ubiquiti Networks Airfiber 5 AF-5 US AF5 Carrier Class Point-to-Point Gigabit Radio High Performance Wireless Backhaul

AF5 US

Ubiquiti
Ubiquiti Networks Airfiber 5 AF-5 US AF5 Carrier Class Point-to-Point Gigabit Radio High Performance Wireless Backhaul


Product Highlights
  • Ubiquiti Airfiber 5 AF-5 US AF5 Carrier Class Point-to-Point Gigabit Radio High Performance Wireless Backhaul
  • The airFiber 5 is purpose-built for outdoor, PtP bridging and carrier-class network backhauls.
  • The high-isolation, dual-antenna design is ideal for robust performance in the harshest RF noise environments.
  • Surpassing conventional wired backhauls, the airFiber®5 delivers real throughput of up to 1.2+ Gbps.
  • Long-Range Links: 100+ km Designed to be a high-performance backhaul, the airFiber 5 performs at a range of up to 100+ km.
  • Model#: AF5 US

    Sku: IT1959.5683.111329



    MSRP: $999.00

    Out of stock

    Your Price: $999.00


    Model: AF-5-US

    Airfiber 5 Full Duplex Point-to-Point Gigabit Radio 5 GHz

    Operating on the 5 GHz frequency band, the AF-5 airFiber High-Band 5 GHz Carrier Class Point-to-Point Gigabit Radio from Ubiquiti Networks offers point to point connectivity at long distances of over 62 miles (100 kilometers). This enhanced coverage provides a reliable backhaul connection which is an essential part of many building-to-building enterprise network configurations. With a dual-antenna architecture, 2x2 MIMO functionality separates the transmit and receive data streams allowing for increased bandwidth and a more reliable connection. Setup of this PtP Gigabit radio is simple thanks to the airFiber Configuration Interface which can be installed by a single network tech.

    • Innovative Antenna Design

    The high-isolation, dual-antenna design is ideal for robust performance in the harshest RF noise environments.



    • Revolutionary Performance

    Surpassing conventional wired backhauls, the airFiber®5 delivers real throughput of up to 1.2+ Gbps.

    • Long-Range Links: 100+ km

    Designed to be a high-performance backhaul, the airFiber 5 performs at a range of up to 100+ km.

    • Low-Latency Carrier Backhaul

    The airFiber 5 supports FDD (Frequency Division Duplexing) in full-duplex mode for < 1 ms latency, resulting in increased efficiency for carrier-class network backhauls.

    • 5 GHz Unlicensed Band

    The airFiber 5 operates in worldwide, license-free, 5 GHz frequencies. Users can deploy airFiber5 almost anywhere they choose (subject to local country regulations).



    Applications:

    airFiber®5 airFiber®5

       AF-5

    • 1.2+ Gbps Maximum Throughput
    • 62+ mi (100+ km) Maximum Range
    • 40 W Max Power Consumption
    • Passive PoE Power Method
    • Pole Mount Kit Included
    • Up to 125 mph Wind Survivability
    • High-Range 5 GHz Frequency Coverage
    • 1 x Gigabit Ethernet Port
    • 1 x Fast Ethernet Management Port
    • 1 x RJ-12 Auxiliary Port
    • Dimensions 938.4 x 468.4 x 281.4 mm (36.94 x 18.44 x 11.08 in)
    • Weight 16 kg (35.27 lb) Mount Included
    • Max. Power Consumption 40 W
    • Power Supply 50V, 1.2A PoE GigE Adapter (Included)
    • Power Method Passive Power over Ethernet (42-58VDC)
    • Certifications CE, FCC, IC
    • Mounting Pole Mount Kit (Included)
    • Wind Loading 863 N @ 200 km/hr (194 lbf @ 125 mph)
    • Wind Survivability 200 km/hr (125 mph)
    • Operating Temperature -40 to 55° C (-40 to 131°F)
