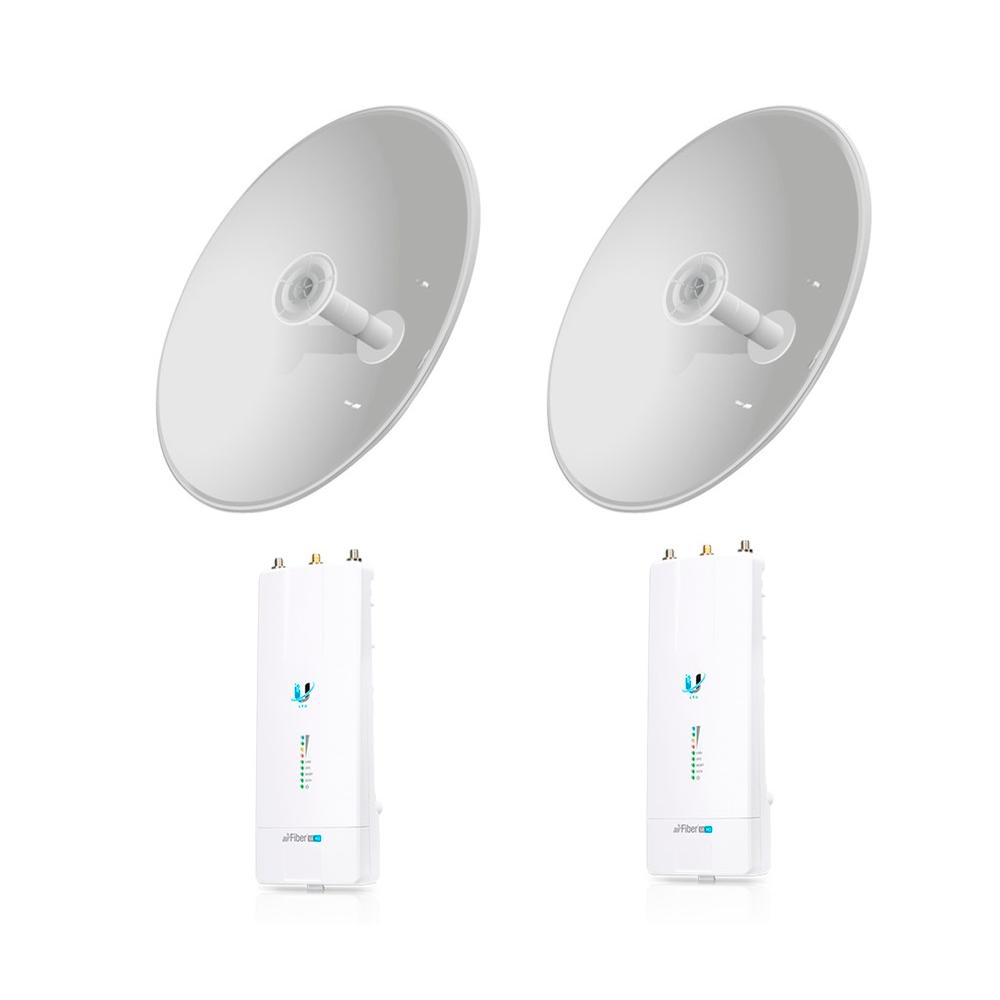

Ubiquiti airFiber 5XHD 2PACK AF-5XHD 5GHz PtP w/2x airFiber X dish antenna AF-5G30-S45 30dBi slant 45


Ubiquiti airFiber 5XHD Radio AF-5XHD 5GHz PtP Backhaul 2Pack w/2x airFiber X Dish Antenna AF-5G30-S45 30dBi Slant 45, designed for use in the 5GHz frequency band airFiber AF-5XHD is Ubiquiti first LTU radio, greater channel bandwidths of up to 100MHz

Product Highlights
  • Ubiquiti AF-5XHD-US (2pack) 5GHz airFiber X PtP 1Gbps Radio WISP Backhaul Performance
  • The New Standard for WISP Backhaul Performance, true 1Gbps+ Spectrally Efficient, Noise Resilient PTP Technology Specifically Designed for WISP’s.
  • Technology Specifically Designed for WISP’s Game-Changing LTU Technology Spectral Efficiency Comparison of 802.11n, 802.11ac, airFiber Original, and LTU.
  • The AF-5G30-S45 (2pack) Dish 30dBi Slant 45 Antenna for airFiber X AF-5X. U Fiber offers internet and telecom service providers a cost-effective fiber optic delivery system for data, voice IPTV/VoD
  • The airFiber X Antennas feature significant advances in noise isolation and beam performance to complement the airFiber X radios for carrier backhauls and Point-to-Point (PtP) bridging.
  • Model#: AF-5XHD-US-BD2

    Sku: IT1953.5673.110793

    MSRP: $1,109.00

    Out of stock

    Your Price: $1,109.00

    Model: AF-5XHD-US (2 UNITS)

    Ubiquiti Networks continues to disrupt the wireless broadband market with revolutionary LTU technology that breaks through the limitations of 802.11 Wi-Fi technology. Designed for use in the 5 GHz frequency band, the new airFiber AF-5XHD is Ubiquiti's first LTU radio, offering greater channel bandwidths of up to 100 MHz, and more advanced RF components.

    The AF -5XHD features industryleading 21.2 bps/Hz spectral efficiency*, line -rate data packet processing for up to 1.34 Gbps of real data throughput*, and innovative xtreme Range Technology (xRT ™)

    • Pair the AF-5XHD with a compatible Ubiquiti airFiber X antenna or RocketDish antenna for a complete 5 GHz Point-to-Point (PtP) solution.


    Model: AF-5G30-S45 (2 UNITS)

    Ubiquiti Networks AF-5G30-S45 30 dBi Antenna for airFiber AF-5X 5 GHz Carrier Backhaul Radio delivers 2x2 dual-polarity performance. Incorporating a dish reflector design for consistent beam directivity, the airFiber X antenna features robust mechanical design using industrial-strength hardware for outdoor application use.

    • The airFiber X antenna and airFiber X radio have been designed to seamlessly work together.

    • The antenna has a built-in airFiber X radio mount, so installation requires no special tools.

    • Snap the airFiber X radio securely into place and mount the antenna to get the optimal combination of airFiber X antenna and airFiber X radio for your PtP application.

    Model: AF-5XHD-US (2 UNITS)

    • Processor: airFiber LTU IC
    • Maximum Throughput: 1 Gbps
    • Maximum Range: 100 km
    • Packets per Second: 2+ million
    • Encryption: WPA2-PSK (AES)
    • OS: airFiber-airOS 8
    • Wireless Modes: AP/CPE


    • Frequency: 5150-5250 MHz; 5740-5850 MHz
    • Frequency Range: 4.8 - 6.2 GHz
    • Max. Conducted TX Power: 29 dBm
    • Frequency accuracy: <2 ppm
    • Channel Bandwidth: 10/20/30/40/50/60/80/100 MHz

    Product Specifications

    • Dimensions: 8.82 x 3.23 x 1.89"
    • Weight: 12.3 oz
    • RF Connectors: (2) RP-SMA weatherproof (CH0, CH1) (1) SMA weatherproof (GPS)
    • Power Supply: 24V, 1A Gigabit PoE Adapter
    • Max. Power Configuration: 6-12 W
    • Supported voltage consumption: 24 - 50 V DC
    • Networking Interface: Data port: (1) 10/100/1000 Ethernet port Management port: (1) 10/100/1000 Ethernet port


    Model: AF-5G30-S45 (2 UNITS)

    • 5 GHz Frequency
    • 30 dBi Gain
    • 650-mm diameter size
    • 30 dB F/B Ratio
    • 1.6:1 Max. VSWR
    • Up to 125 mph Wind Survivability
