B-DB-AC-US

Ubiquiti

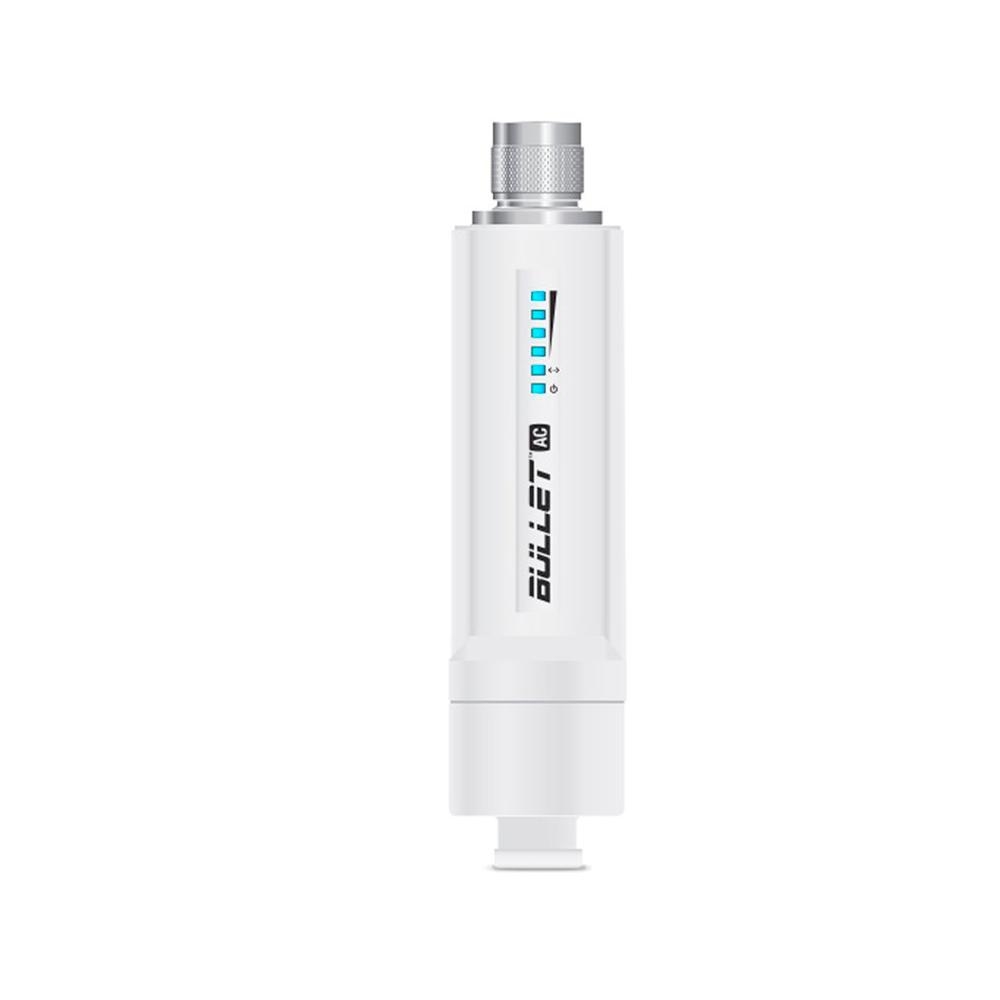

Ubiquiti Networks Bullet ac B-DB-AC-US Dual-Band 2.4/5GHz 802.11 AC Integrated Radio Outdoor Wireless Access Point



Product Highlights
  • Ubiquiti Bullet ac B-DB-AC-US Dual-Band 2.4/5GHz 802.11 AC Integrated Radio Outdoor Wireless Access Point
  • Bullet AC covers both 2.4 and 5 GHz bands, covering a wide range of frequency bands that work well for both short and long-distance links.
  • The Bullet design helped transform the WISP industry. Its unique design upgrades link performance and reduces deployment complexity.
  • The BulletAC delivers up to 300+ Mbps real TCP/IP throughput.
  • The robust, weatherproof case withstands harsh outdoor conditions.
  • Model#: B-DB-AC-US

    Sku: IT1950



    MSRP: $99.99

    In Stock

    Your Price: $99.99






    Model: B-DB-AC-US

    US Version

    Ubiquiti Networks designed airMAX® ac radios for high performance and ease of installation. You have the freedom to deploy the Bullet™ AC anywhere in the world, as it allows for a high degree of flexibility in configuring channel bandwidths (subject to local country regulations).

    The Bullet AC eliminates the need to use RF cables and requires no special antenna or tools to install. No radio card / host board issues. No RF cable quality concerns. No mechanical stability concerns. No enclosure mounting requirements. With the Bullet AC, operators can just plug and go.

    Features

    • Dual-Band Frequency: The Bullet AC covers both 2.4 and 5 GHz spectrums, covering a wide range of frequency bands that work well for both short and long-distance links.
    • Passive Power over Ethernet (PoE): 24V Passive PoE functionality is included. Both power and data are carried over a single Ethernet cable to the Bullet AC. Use a PoE Adapter (not included) or an optional PoE switch.
    • Output Power: The Bullet AC offers up to 22 dBm of output power.
    • Weatherproof Design: The Bullet AC features a weatherproof design. Made from a high-grade, powder-coated aluminum, the casing can withstand nature’s harshest outdoor elements.

    The Bullet AC integrates a separate Wi-Fi radio for fast and easy setup using the Ubiquiti Network Management System (UNMS) app on your mobile device.

    • 2412 - 2462 MHz / 5725 - 5850 MHz
    • Gigabit Ethernet Port
    • N-Type Connector
    • AC to 24VDC, 0.5A Gigabit PoE Adapter
    • 24V Passive PoE
    • Frequency

    2412 - 2462

    U-NII-1: 5150 - 5250 U-NII-3: 5725 - 5850

    • Dimensions

    190 x 46 mm (7.48 x  1.81")

    • Weight

    196 g (6.91 oz)

    • Enclosure

    Powder-Coated Aluminum

    • Networking Interface

    Gigabit Ethernet Port

    • Antenna Connector

    N-Type Connector

    • Throughput

         2.4 GHz - 160+ Mbps
         5 GHz - 300+ Mbps

    • Max. Power Consumption

    8W

    • Output Power

    22 dBm

    • Power Supply

    AC to 24VDC, 0.5A Gigabit PoE Adapter

    • Power Method

    24V Passive PoE (Pairs 4, 5+; 7, 8 Return)

    • ESD/EMP Protection

    ± 24 kV Contact / Air

    • Operating Temperature

    -40 to 70° C (-40 to 158° F)

    • Operating Humidity

    5 to 95% Condensing

    • Shock and Vibration

    ETSI300-019-1.4

    • Certifications

    CE, FCC, IC






    Datasheet

    PDF File Ubiquiti Networks Bullet ac B-DB-AC-US Dual-Band 2.4/5GHz 802.11 AC Integrated Radio Outdoor Wireless Access Point
