B-DB-AC

Ubiquiti

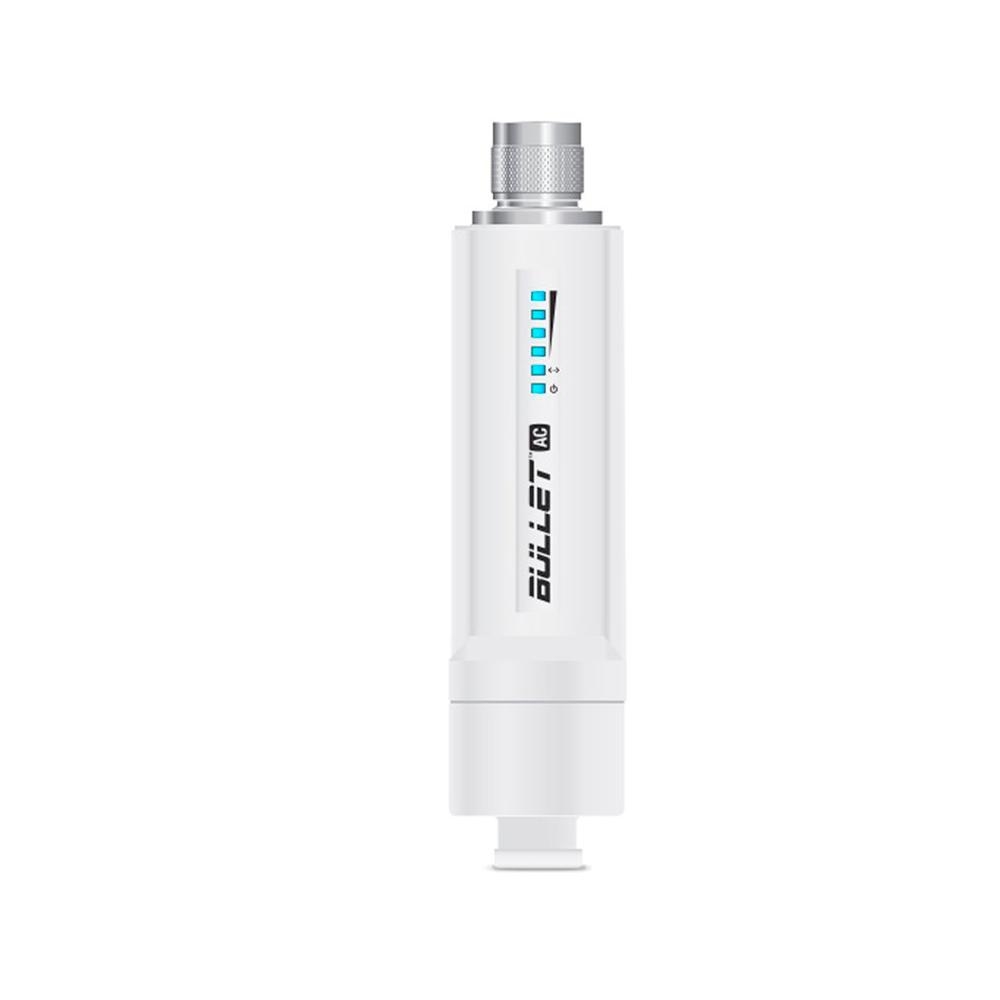

Ubiquiti Networks B-DB-AC 2.4/5GHz Bullet Dual-Band AC International Version



Product Highlights
  • Dual-Band Frequency: The Bullet AC covers both 2.4 and 5 GHz spectrums, covering a wide range of frequency bands that work well for both short and long-distance links.
  • Passive Power over Ethernet (PoE): 24V Passive PoE functionality is included. Both power and data are carried over a single Ethernet cable to the Bullet AC. Use the included PoE Adapter or an optional PoE switch.
  • Output Power: The Bullet AC offers up to 22 dBm of output power.
  • Weatherproof Design: The Bullet AC features a weatherproof design. Made from a high-grade, powder-coated aluminum, the casing can withstand nature‚Äôs harshest outdoor elements.
  • Model#: B-DB-AC

    Sku: IT1949



    MSRP: $119.99

    In Stock

    Your Price: $119.99






    Model: B-DB-AC

    International Version

    Ubiquiti Networks designed airMAX® ac radios for high performance and ease of installation. You have the freedom to deploy the Bullet™ AC anywhere in the world, as it allows for a high degree of flexibility in configuring channel bandwidths (subject to local country regulations).

    The Bullet AC eliminates the need to use RF cables and requires no special antenna or tools to install. No radio card / host board issues. No RF cable quality concerns. No mechanical stability concerns. No enclosure mounting requirements. With the Bullet AC, operators can just plug and go.


    • Frequency

    2412 - 2472

    5150 - 5875

    • Dimensions

    190 x 46 mm (7.48 x  1.81")

    • Weight

    196 g (6.91 oz)

    • Enclosure

    Powder-Coated Aluminum

    • Networking Interface

    Gigabit Ethernet Port

    • Antenna Connector

    N-Type Connector

    • Throughput

         2.4 GHz - 160+ Mbps
         5 GHz - 300+ Mbps

    • Max. Power Consumption

    8W

    • Output Power

    22 dBm

    • Power Supply

    AC to 24VDC, 0.5A Gigabit PoE Adapter

    • Power Method

    24V Passive PoE (Pairs 4, 5+; 7, 8 Return)

    • ESD/EMP Protection

    ± 24 kV Contact / Air

    • Operating Temperature

    -40 to 70° C (-40 to 158° F)

    • Operating Humidity

    5 to 95% Condensing

    • Shock and Vibration

    ETSI300-019-1.4

    • Certifications

    CE, FCC, IC


    Datasheet

    PDF File Ubiquiti Networks B-DB-AC 2.4/5GHz Bullet Dual-Band AC International Version
