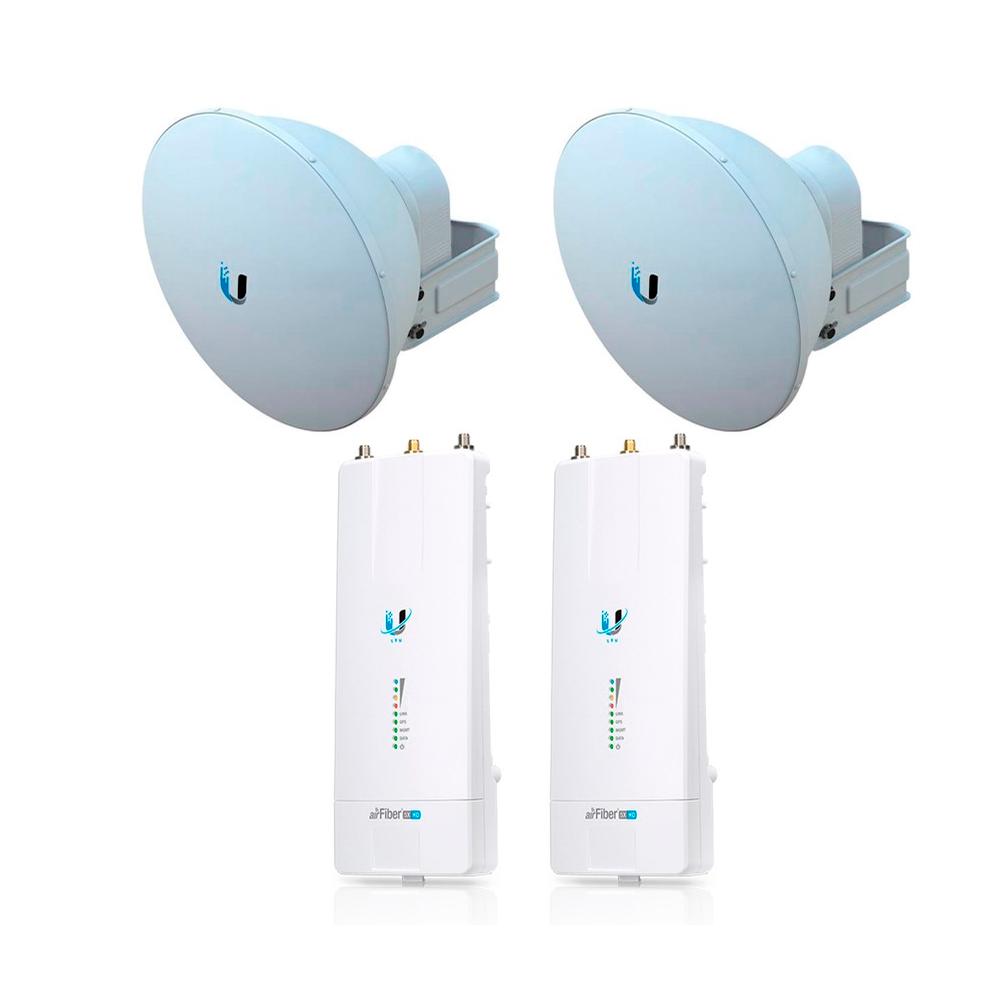

Ubiquiti airFiber X AF-5XHD 2units 5GHz 1Gbps Backhaul with AF-5G23-S45 2units 23dBi Slant 45 Antenna

AF-5XHD-BD1

Ubiquiti
Ubiquiti airFiber X AF-5XHD 2 UNITS 5GHz PtP 1Gbps Radio WISP Backhaul Performance with AF-5G23-S45 2 UNITS Dish 23dBi Slant 45 Antenna for airFiber X AF-5X

Model#: AF-5XHD-BD1

Sku: IT1946.5662.110182



MSRP: $1,056.00

In Stock

Your Price: $1,056.00




Model: AF-5XHD INTL (2 UNITS)

Ubiquiti Networks continues to disrupt the wireless broadband market with revolutionary LTU technology that breaks through the limitations of 802.11 Wi-Fi technology. Designed for use in the 5 GHz frequency band, the new airFiber AF-5XHD is Ubiquiti's first LTU radio, offering greater channel bandwidths of up to 100 MHz, and more advanced RF components.

The AF -5XHD features industryleading 21.2 bps/Hz spectral efficiency*, line -rate data packet processing for up to 1.34 Gbps of real data throughput*, and innovative xtreme Range Technology (xRT ™)

  • Pair the AF-5XHD with a compatible Ubiquiti airFiber X antenna or RocketDish antenna for a complete 5 GHz Point-to-Point (PtP) solution.

+

Model: AF-5G23-S45 (2 UNITS)

Ubiquiti Networks AF-5G23-S45 23 dBi Antenna for airFiber AF-5X 5 GHz Carrier Backhaul Radio delivers 2x2 dual-polarity performance. Incorporating a dish reflector design for consistent beam directivity, the airFiber X antenna features robust mechanical design using industrial-strength hardware for outdoor application use.

  • The airFiber X antenna and airFiber X radio have been designed to seamlessly work together.

  • The antenna has a built-in airFiber X radio mount, so installation requires no special tools.

  • Snap the airFiber X radio securely into place and mount the antenna to get the optimal combination of airFiber X antenna and airFiber X radio for your PtP application.

Model: AF-5XHD INTL (2 UNITS)

  • Processor: airFiber LTU IC
  • Maximum Throughput: 1 Gbps
  • Maximum Range: 100 km
  • Packets per Second: 2+ million
  • Encryption: WPA2-PSK (AES)
  • OS: airFiber-airOS 8
  • Wireless Modes: AP/CPE


Radio

  • Frequency: 5150-5250 MHz; 5740-5850 MHz (dependent on regulatory region)
  • Frequency Range: 4.8 - 6.2 GHz (dependent on regulatory region)
  • Max. Conducted TX Power: 29 dBm (dependent on regulatory region)
  • Frequency accuracy: <2 ppm
  • Channel Bandwidth: 10/20/30/40/50/60/80/100 MHz

Product Specifications

  • Dimensions: 8.82 x 3.23 x 1.89"
  • Weight: 12.3 oz
  • RF Connectors: (2) RP-SMA weatherproof (CH0, CH1) (1) SMA weatherproof (GPS)
  • GPS Antenna: External, Magnetic Base
  • Power Supply: 24V, 1A Gigabit PoE Adapter
  • Power Method: Passive Power over Ethernet; pins 1, 2, 4, 5 (+) and pins 7, 8, 3, 6 (-)
  • Max. Power Configuration: 6-12 W
  • Supported voltage consumption: 24 - 50 V DC
  • Mounting: airFiber X mount (Rocket mount compatible) GPS pole mount (included)
  • Operating Temperature: -40°C to 55°C (-40°F to 131°F)
  • IP rating: IP67
  • Certifications: CE, FCC, IC
  • Networking Interface: Data port: (1) 10/100/1000 Ethernet port Management port: (1) 10/100/1000 Ethernet port

+

Model: AF-5G23-S45 (2 UNITS)

• Frequency Range: 5.1 - 5.9GHz
• Gain: 23dBi
• +45° Beamwidth: 10° (3dB)
• -45° Bewamwidth: 10° (3dB)
• F/B Ratio: 30dB
• Max. VSWR: 1.5:1
• Wind Loading: 190N @ 200km/h (43lbf @ 125mph)
• Wind Survivability: 200km/h (125mph)
• Polarization: Dual-Linear
• Cross-pol Isolation: 35dB Min.
• ETSI Specification: EN 302 326 DN2
• Mounting: Universal Pole Mount, airFiber X Radio Bracket, and Weatherproof RF Connectors Included
