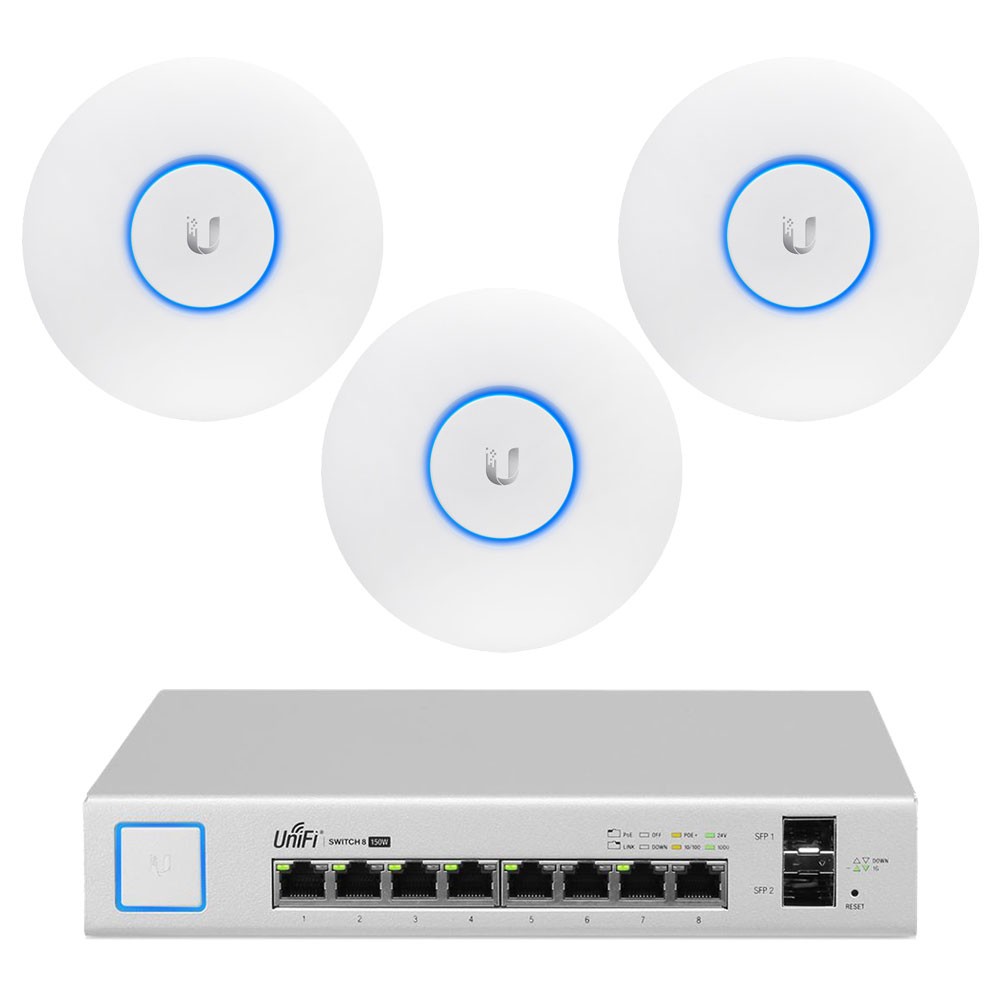

Ubiquiti UniFi AP AC Lite Dual-Radio Access Point 3Units with Managed Switch 8 US-8-150W PoE+


Ubiquiti UAP-AC-LITE US (3 Pack) UniFi Access Point 802.11ac Dual-Radio PoE; Gigabit Ethernet + US-8-150W UniFi Managed Switch PoE+ Gigabit 8-Ports with SFP

Product Highlights
  • Ubiquiti UniFi Access Point UAP-AC-LITE US 802.11ac Dual Radio PoE; Gigabit Ethernet 867 Mbps (3 Units)
  • The UniFi AC Lite AP features the latest Wi-Fi 802.11ac technology in a refined industrial design and is ideal for cost-effective deployment of high-performance wireless networks.
  • Dual-Radio Performance, Gigabit Speeds The UniFi AC Lite AP delivers 5x the performance of the first-generation UniFi AP while still maintaining Ubiquiti’s disruptive pricing strategy.
  • Ubiquiti UniFi Switch 8-Ports US-8-150W (1 Unit) UniFi Managed Switch PoE+ Gigabit with SFP
  • The fanless UniFi Switch delivers quiet yet powerful performance with its 10 independent switching ports. Sharing a total of 150W PoE, eight Gigabit Ethernet ports offer 802.3af/at PoE+ or 24V passive PoE, and two SFP ports offer optical connectivity
  • Model#: UAP-AC-LITE-US-BD6

    Sku: IT1929.5640.108795

    MSRP: $469.95

    Out of stock

    Your Price: $469.95

    Model: UAP-AC-LITE US (3 Units)

    UniFi Access Point

    Ubiquiti's Lite Indoor WiFi Access Point supports 802.11ac and speeds of up to 867Mbps in the 5GHz radio band and up to 867Mbps in the 2.4GHz radio band and up to 300Mbps. The UAP-AC-LITE offers simultaneous dual-band operation with 2x2 MiMO technology for each band. It has a range of up to 122m (400ft) and one Gigabit Ethernet ports.

    - (5 GHz Speed 867Mbps; 2.4 GHz Speed 300Mbps)

    • Dual-Radio Performance, Gigabit Speeds

    The UniFi AC Lite AP delivers 5x the performance of the first-generation UniFi AP while still maintaining Ubiquiti’s disruptive pricing strategy.


    Model: US-8-150W (1 Unit)

    UniFi Managed Switch 8-Ports

    The US-8-150W UniFi Managed PoE+ Gigabit 8 Port Switch with SFP from Ubiquiti Networks it is easy to expand the capacity and reach of an existing network. This switch features 8 Gigabit Ethernet ports along with 2 SFP ports making it easy to incorporate high speed local storage networks into the configuration. In addition to Gigabit Ethernet connectivity, the network ports support 802.3af/at PoE networking standards designed to power devices such as VoIP phones, access points, IP cameras, and more.

    • PoE+

    The UniFi Switch models are available with 8 PoE Gigabit Ethernet ports of auto-sensing IEEE 802.3af/at or configurable 24V passive PoE to simplify your infrastructure. By default, the UniFi Switch automatically detects 802.3af/at devices so they automatically receive PoE. For 24V passive PoE devices, manually enable 24V passive PoE using the UniFi Controller software.


    Model: UAP-AC-LITE US (3 Units)
    • Networking Interface: (1) 10/100/1000 Ethernet Ports
    • Antennas: (2) Dual-Band Antennas, 3 dBi Each
    • Max TX Power: 2.4GHz: 20 dBm - 5GHz: 20 dBm
    • Buttons: Reset
    • Wifi Standards: 802.11 a/b/g/n/ac
    • Power Method: Passive Power over Ethernet (24V), (Pairs 4, 5+; 7, 8 Return)
    • Power Supply: 24V, 0.5A Gigabit PoE Adapter
    • Maximum Power Consumption: 6.5W
    • BSSID: Up to Four Per Radio
    • Power Save: Supported
    • Wireless Security: WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
    • Certifications: CE, FCC, IC
    • Mounting: Wall and Ceiling
    • Operating Temperature: -10 to 70°C (14 to 158°F)
    • Operating Humidity: 5 to 95% non-condensing

    Advanced Traffic Management
    • VLAN: 802.1Q
    • Advanced QoS: Per-User Rate Limiting
    • Guest Traffic Isolation: Supported
    • WMM: Voice, Video, Best Effort and Background


    Model: US-8-150W (1 Unit)

    • (8) Gigabit RJ45 Ports
    • (2) SFP Ports
    • Non-Blocking Throughput: 10 Gbps
    • Switching Capacity: 20 Gbps
    • Forwarding Rate: 14.88 Mpps
    • Maximum Power Consumption: 150W
    • Supports PoE+ IEEE 802.3at/af and 24V Passive PoE
    • Quiet, Fanless Operation
    • Rackmountable with Rack-Mount Brackets (Included)
    • Desktop-Mountable (Do not physically stack the US-8-150W.)
