PS-5AC-US-30-BD1

Ubiquiti


Ubiquiti PrismStation AC PS-5AC 5GHz airMAX ac Radio Basestation + Horn Antenna Horn-5-30 30 degree Isolation Antenna


Model#: PS-5AC-US-30-BD1

Sku: IT1924



MSRP: $429.99


Out of stock

Model: PS-5AC-US

Ubiquiti PrismStation 5AC directs RF energy in a tighter beamwidth using an interchangeable isolation antenna horn. With the focus in one direction, the PrismStation 5AC blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency.

With flexible sectorization for optional antenna beamwidths, the horn antenna is interchangeable and improves beam-shaping for specific deployment and environment needs. The PrismStation 5AC uses horn antenna sectors designed for increased co-location performance without sacrificing gain.

  • The PrismStation directs RF energy in a tighter beamwidth and filters noise.

+

Model: PrismAP-5-30

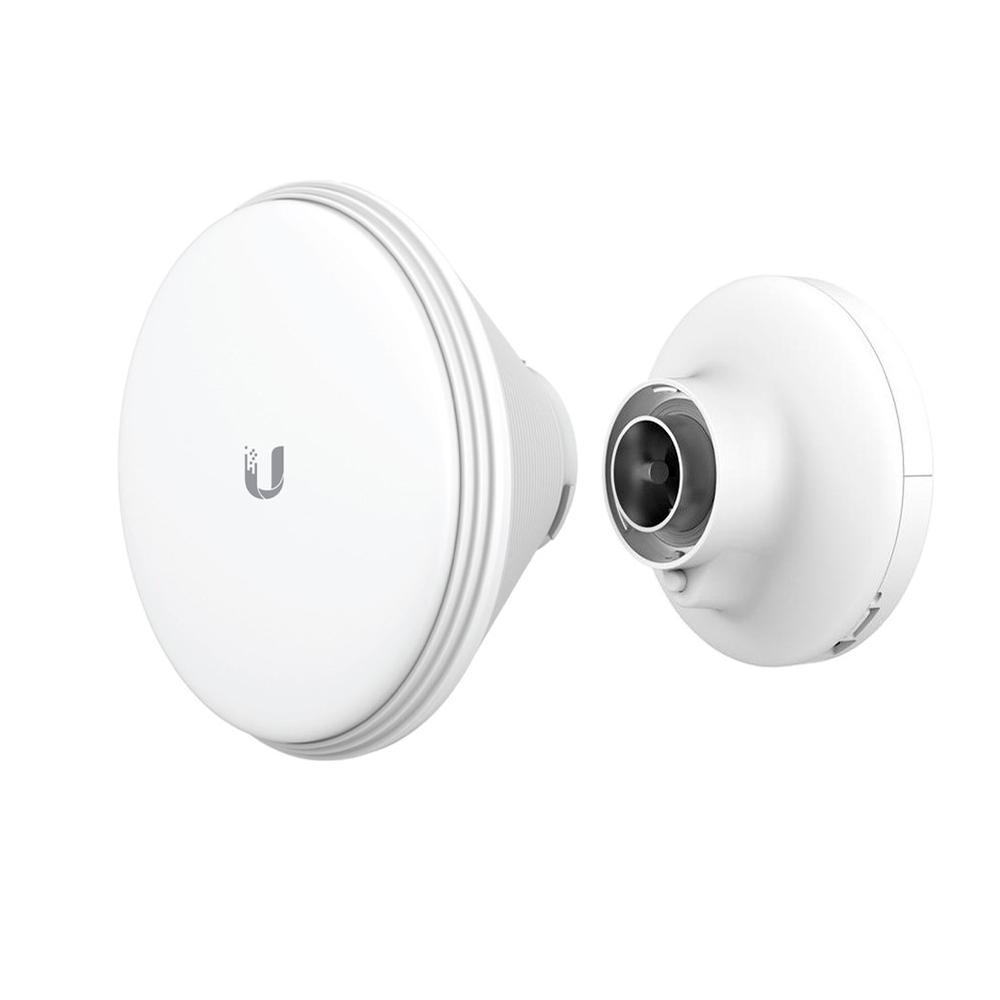

The Ubiquiti Networks PrismAP-5-30 is a 30° 5GHz Horn Antenna designed to be used with PrismStation or IsoStation radios. It is easily attached, with a locking mechanism instead of using connectors.

Product Features
• Asymmetrical horn antennas designed for increased co-location performance
• 30º beamwidth
• Single button release for ease of changing antennas
• Newly designed horn for improved beam shaping

Model: PS-5AC-US

  • 14 dBi Gain
  • 1 x Gigabit Ethernet Port
  • Dedicated Power LED Indicator
  • Improved Noise Immunity
  • Modular Design
  • Improved Scalability
  • Enhanced Co-Location Support
  • airOS 8 Software
  • UMobile App
  • airMAX ac Technology

+

Model: PrismAP-5-30

  • Dimensions: 152.1 x 186.8 x 113.2mm
  • Weight: 0.92kg
  • Operating Frequency: 5.15 to 5.85GHz
  • Gain: 13dBi
  • HPOL Beam Angle: 30°
  • VPOL: Beam Angle: 30°
  • Polarization: Dual-linear
  • Cross-Pol Insulation: 17dB
