Ubiquiti Networks airFiber 5X HD AF-5XHD-US 5GHz PtP 1Gbps Radio US

Product Highlights
  • Programmable Transmit Power The radio's transmit power level can be programmed up to +29 dBm.
  • Programmable Duty Cycle (GPS synchronized frames) The AF-5XHD allows configuration of asymmetric TX and RX duty cycles. TX ratios include 25%, 33%, 50%, 66.7%, and 75%.
  • Configurable GPS Synchronization The AF-5XHD offers configurable support for 2, 2.5, 4, and 5 ms frames. Timing is compatible with all other synchronous systems.
  • Split TX and RX Frequency* The radio can operate on different frequencies for TX and RX, allowing great flexibility for interference avoidance.
  • Split TX and RX Channel Bandwidth* Support for different channel bandwidths for TX and RX allows users to scale required data capacity more efficiently.
  • Model#: AF-5XHD-US

    Sku: IT1915

    MSRP: $439.99

    In Stock

    Your Price: $439.99

    Model: AF-5XHD-US

    US Version

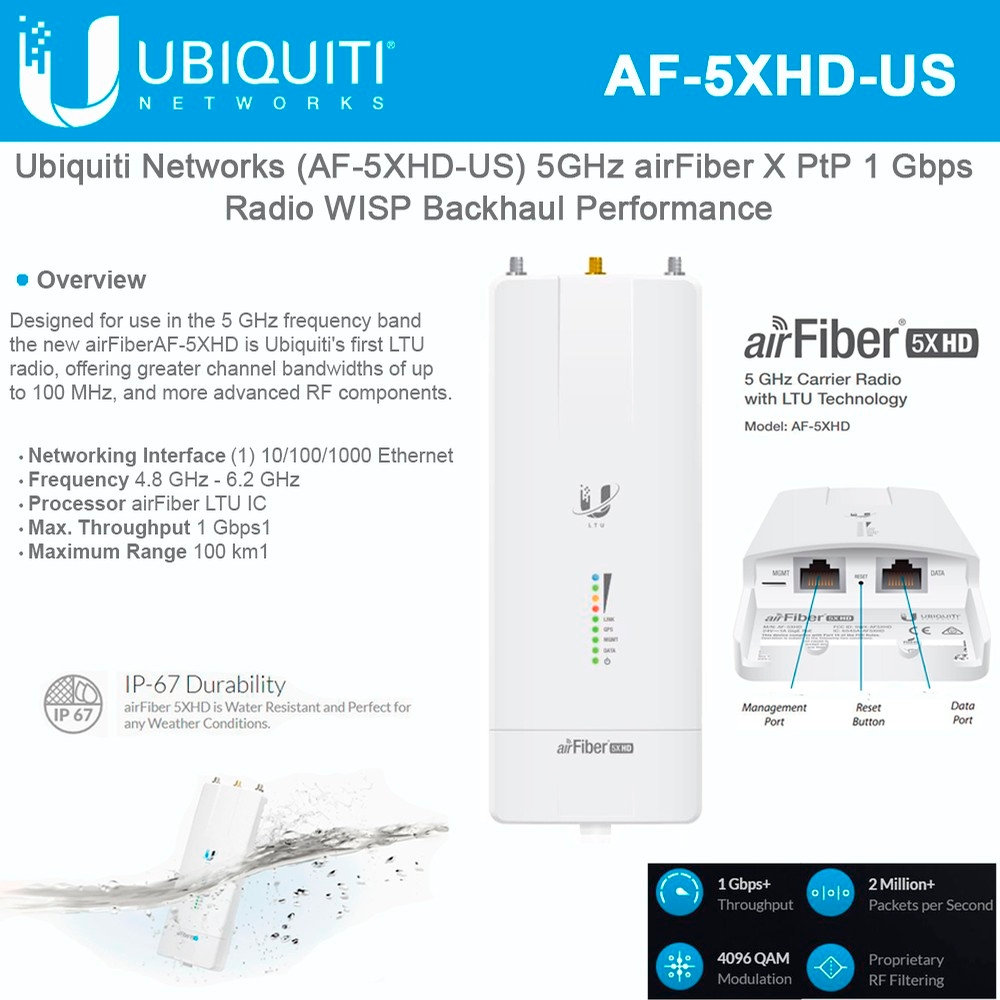

    Airfiber 5XHD PTP 5 GHz Carrier Radio with LTU Technology

    Ubiquiti Networks continues to disrupt the wireless broadband market with revolutionary technology at breakthrough pricing by introducing the airFiber® AF-5XHD. Designed for use in the 5 GHz frequency band, the AF-5XHD features the newest radio technology, offering greater channel bandwidths (up to 100 MHz) and more advanced RF components.

    The AF-5XHD is also compatible with a number of existing Ubiquiti® antennas for the 5 GHz band, including airFiber X antennas and certain RocketDish™ antennas. Pair the AF-5XHD with a compatible Ubiquiti antenna for a complete 5 GHz Point-to-Point (PtP) solution.

    The AF-5XHD also includes a special IP67 upgrade kit for enhanced protection from dust and water.

    Engineered for Performance

    Ubiquiti’s custom silicon and proprietary radio architecture are designed specifically for long-distance, outdoor wireless applications.

    The core communications processing engine surpasses all of the limitations inherent to generic Wi-Fi chips to provide superior performance, long-range capability, DFS flexibility, higher constellations, and power output, along with better receive sensitivity.

    The AF-5XHD features industry-leading 10.6 bps/Hz spectral efficiency, line-rate data packet processing for up to 1 Gbps of real data throughput, and innovative xtreme Range Technology (xRT™) for up to 100 km in range.

    Specifications AF-5XHD

    Dimensions 224 x 82 x 48 mm (8.82 x 3.23 x 1.89")
    Weight 0.35 kg (12.3 oz)
    RF connectors (2) RP-SMA weatherproof (CH0, CH1) (1) SMA weatherproof (GPS)
    GPS antenna External, magnetic base
    Power supply 24 V, 1 A Gigabit PoE adapter (included)
    Power method Passive Power over Ethernet; pins 1, 2, 4, 5 (+) and pins 7, 8, 3, 6 (-)
    Max. power consumption 6 - 12 W
    Supported voltage range 24 - 50 V DC
    Mounting airFiber X mount (Rocket mount compatible) GPS pole mount (included)
    Operating temperature -40°C to 55°C (-40°F to 131°F)
    IP rating IP67
    Certifications CE, FCC, IC
    Networking interface Data port: (1) 10/100/1000 Ethernet port Management port: (1) 10/100/1000 Ethernet port
    Processor airFiber LTU IC
    Maximum throughput 1 Gbps
    Maximum range 100 km
    Packets per second 2+ million
    Encryption WPA2-PSK (AES)
    OS airFiber-airOS 8
    Wireless modes AP/CPE
    Frequency range 4.8 - 6.2 GHz (dependent on regulatory region)
    Max. conducted TX power 29 dBm (dependent on regulatory region)
    Frequency accuracy <2 ppm
    Channel bandwidth 10/20/30/40/50/60/80/100 MHz selectable Programmable uplink and downlink duty cycles
