UAP-AC-M-BD3

Ubiquiti

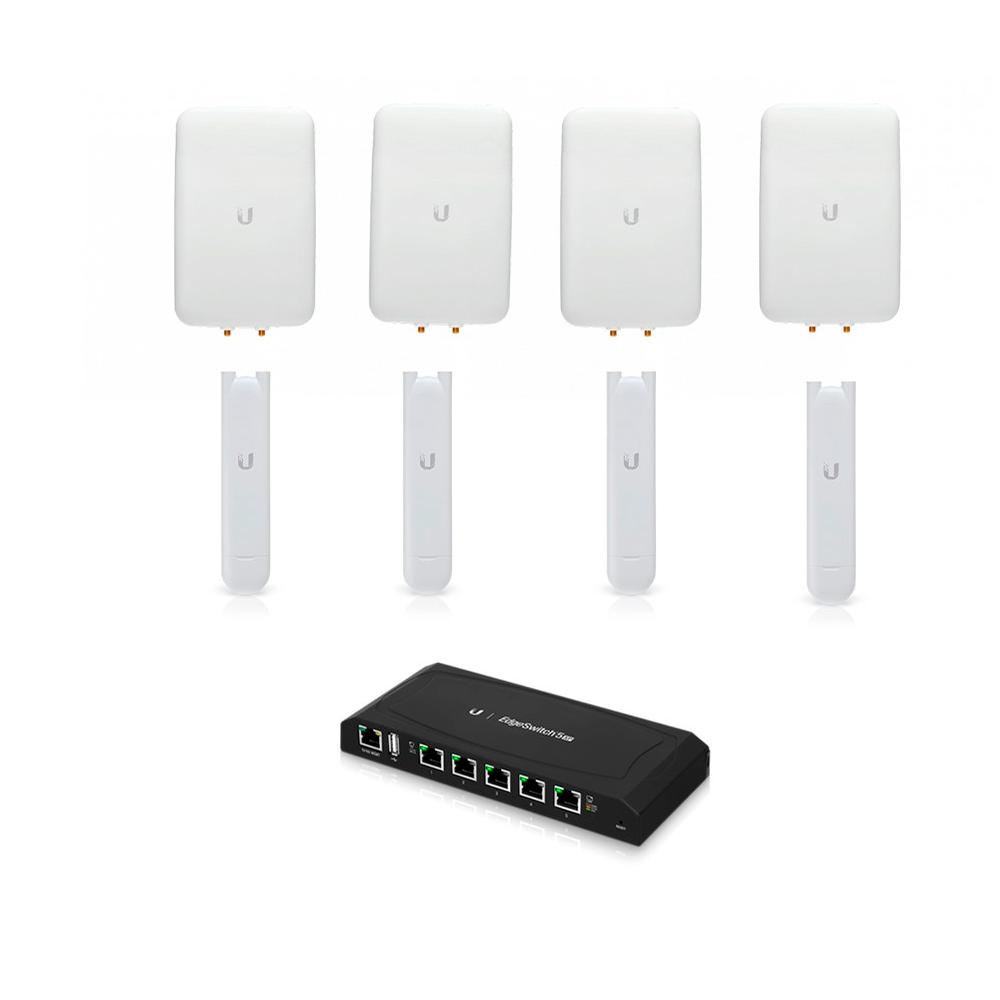

Ubiquiti UniFi AP AC Mesh Dual-Band 4units with UMA-D Directional Antenna 4units with Managed Switch 5ports


Model#: UAP-AC-M-BD3

Sku: IT1909

Out of stock

Model: UAP-AC-M- INTL (4 Units)

The Ubiquiti UAP-AC-M is an 802.11 mesh access point. With mesh multi-hop, you can can cover a large outdoor area with minimal infrastructure, with just a few mesh access points. These APs include adjustable dual-band omnidirectional antennas, but can be used with any 5 GHz omni antenna for spot-beam coverage in high-density locations with numerous APs and clients. These models are great for temporary installations, with quick setup and takedown, ideal for music festivals and concert venues.

Product Features
• Compact Form Factor: The UniFi AC Mesh AP is designed to discreetly integrate into any environment.
• Weather-Resistant Enclosure: AP can be used both indoors and outdoors.
• LED: Unique provisioning

+

Model: UMA-D (4 Units)

The Ubiquiti UniFi Antenna,UMA-D, is an optional mesh antenna designed to work with the Ubiquiti UniF® AC Mesh AP, the UAP-AC-M. With dual-band support, the Ubiquiti UMA-D expands range coverage and provides customized pattern shaping.


Product Features

• Antenna Features: Optimized for 802.11ac, the UMA-D offers a high efficiency directional radiation pattern with dual polarity.
• Weather-Resistant Enclosure: Encased in UV-stabilized plastic, the UMA-D can be used indoors or outdoors.
• Versatile Mounting: The UMA-D has a ball joint mount designed for precise aiming and can be mounted on a pole or wall.
• Compatibility: The UMA-D is a connectorized antenna that is compatible with the UAP-AC-M.

+

Model: TS-5-POE (1 Unit)

The TS-5-POE TOUGHSwitch 5-Port Advanced PoE Controller from Ubiquiti Networks is a cost-effective, 5-port Gigabit switch with 24V PoE support. It delivers reliable passive PoE and fast 10/100/1000 Mb/s connectivity to attached Ubiquiti devices and other devices that support passive PoE. To connect the PoE devices, you need to enable PoE in the TOUGHSwitch configuration interface. Each port can be individually configured to provide PoE, so that both PoE and non-PoE devices can be connected.

Model: UAP-AC-M INTL (4 Units)
• Dimensions: 353 x 46 x 34.4 mm (13.9 x 1.81 x 1.35 ")
• Weight: 152 g (5.36 oz) with Antennas
• Networking Interface: (1) 10/100/1000 Ethernet Port
• Power Method:
    24V Passive PoE (Pairs 4, 5+; 7,8 Return)
    802.3af Alternative A (Pairs 1, 2+; 3,6 Return)
    (Supported Voltage Range: 44 to 57 VDC)
• Power Supply: 24V, 0.5A Gigabit PoE Adapter (Included)
• Power Save: Supported
• Maximum Power Consumption: 8.5 W
• Maximum TX Power:
    2.4 GHz: 20 dBm
    5 GHz: 20 dBm
• Antennas: (2) External Dual-Band Omni Antennas
    2.4 GHz: 3 dBi
    5 GHz: 4 dBi
• Wi-Fi Standards: 802.11 a/b/g/n/ac
• Wireless Security: WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)



+

Model: UMA-D (4 Units)

• Enclosure: Outdoor UV Stabilized Plastic
• RF Connections: (2) RP-SMA
• Supported Frequency Range: 2.4 - 2.5GHz, 5.1 - 5.9GHz
• HPOL Beamwidth: 2.4GHz - 90° / 5Ghz - 45°
• VPOL Beamwidth: 2.4GHz - 90° / 5Ghz - 45°
• Elevation Beamwidth: 2.4GHz - 90° / 5Ghz - 45°
• Maximum VSWR: 2:1
• Polarization: Dual-Linear
• Cross-Pol Isolation: 2.4GHz - 25dB / 5Ghz - 30dB
• Antenna Gain: 2.4GHz - 10dBi / 5Ghz - 15dBi
• Mounting: Wall/Pole (kits included)
• Dimensions: 7.93 x 5.04 x 1.28"

+

Model: TS-5-POE (1 Unit)

  • 5 Gigabit PoE Ports
  • 5 x 10/100/1000 Ethernet Data Ports
  • 1 x 10/100 Ethernet Management Port
  • MIPS 24K, 400 MHz Processor
  • USB 2.0 Type A Port
  • 64MB System Memory
  • 8MB Code Storage
  • 24V Configurable Passive PoE
  • PoE Configuration Interface
  • Wall-Mountable
  • CE, FCC, IC Certified
