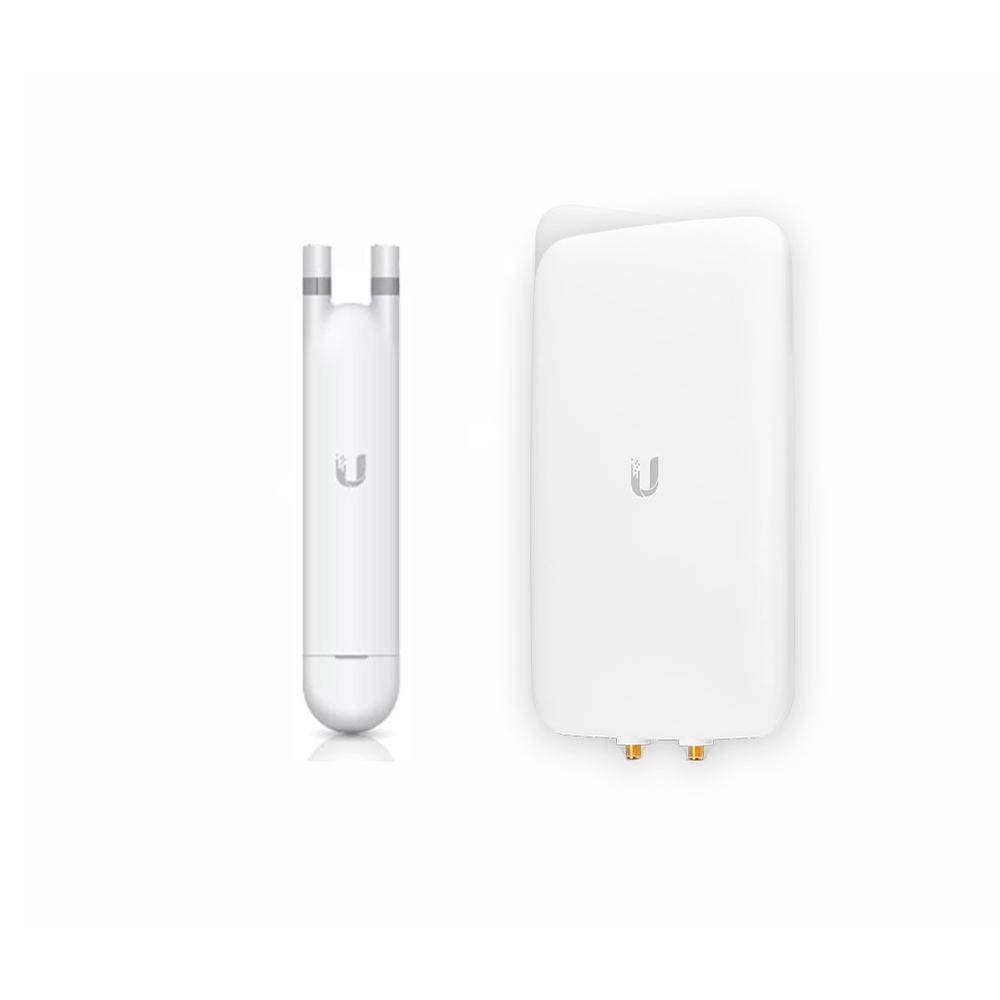

Ubiquiti Networks UniFi AP Mesh UAP-AC-M-US Dual-Band Access Point with Directional Antenna UMA-D Dual-Band - US Version

Product Highlights
  • Expand the limits of Wide-Area WiFi. Welcome to UniFi Mesh Technology
  • Ubiquiti UniFi AP Mesh UAP-AC-M-US Wide-Area Indoor/Outdoor Dual-Band Unifi Mesh Access Point
  • Optimal Performance Dual-Band performance with aggregate speeds of up to 1167 Mbps.
  • Ubiquiti UniFi Mesh Antenna UMA-D Directional Dual-Band Antenna for UAP-AC-M
  • The UMA-D is a dual-band, dual-polarity antenna optimized for 802.11ac. It offers a directional radiation pattern and a three-axis ball joint mount for precise aiming.
  • Model#: UAP-AC-M-US-BD1

    Sku: IT1901

    MSRP: $264.00

    Out of stock

    Model: UAP-AC-M-US

    Unifi Mesh Access Point UAP-AC-M-US

    The Ubiquiti UAP-AC-M is an 802.11 mesh access point. With mesh multi-hop, you can can cover a large outdoor area with minimal infrastructure, with just a few mesh access points. These APs include adjustable dual-band omnidirectional antennas, but can be used with any 5 GHz omni antenna for spot-beam coverage in high-density locations with numerous APs and clients. These models are great for temporary installations, with quick setup and takedown, ideal for music festivals and concert venues.

    Product Features
    • Compact Form Factor: The UniFi AC Mesh AP is designed to discreetly integrate into any environment.
    • Weather-Resistant Enclosure: AP can be used both indoors and outdoors.
    • LED: Unique provisioning


    Model: UMA-D

    Directional Antenna UMA-D

    The Ubiquiti UniFi Antenna UMA-D, is an optional mesh antenna designed to work with the Ubiquiti UniF® AC Mesh AP, the UAP-AC-M. With dual-band support, the Ubiquiti UMA-D expands range coverage and provides customized pattern shaping.

    Product Features

    • Antenna Features: Optimized for 802.11ac, the UMA-D offers a high efficiency directional radiation pattern with dual polarity.
    • Weather-Resistant Enclosure: Encased in UV-stabilized plastic, the UMA-D can be used indoors or outdoors.
    • Versatile Mounting: The UMA-D has a ball joint mount designed for precise aiming and can be mounted on a pole or wall.
    • Compatibility: The UMA-D is a connectorized antenna that is compatible with the UAP-AC-M.

    Model: UAP-AC-M-US

    • Dimensions: 353 x 46 x 34.4 mm (13.9 x 1.81 x 1.35 ")
    • Weight: 152 g (5.36 oz) with Antennas
    • Networking Interface: (1) 10/100/1000 Ethernet Port
    • Power Method:
        24V Passive PoE (Pairs 4, 5+; 7,8 Return)
        802.3af Alternative A (Pairs 1, 2+; 3,6 Return)
        (Supported Voltage Range: 44 to 57 VDC)
    • Power Supply: 24V, 0.5A Gigabit PoE Adapter (Included)
    • Power Save: Supported
    • Maximum Power Consumption: 8.5 W
    • Maximum TX Power:
        2.4 GHz: 20 dBm
        5 GHz: 20 dBm
    • Antennas: (2) External Dual-Band Omni Antennas
        2.4 GHz: 3 dBi
        5 GHz: 4 dBi
    • Wi-Fi Standards: 802.11 a/b/g/n/ac
    • Wireless Security: WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)


    Model: UMA-D

    • Enclosure: Outdoor UV Stabilized Plastic
    • RF Connections: (2) RP-SMA
    • Supported Frequency Range: 2.4 - 2.5GHz, 5.1 - 5.9GHz
    • HPOL Beamwidth: 2.4GHz - 90° / 5Ghz - 45°
    • VPOL Beamwidth: 2.4GHz - 90° / 5Ghz - 45°
    • Elevation Beamwidth: 2.4GHz - 90° / 5Ghz - 45°
    • Maximum VSWR: 2:1
    • Polarization: Dual-Linear
    • Cross-Pol Isolation: 2.4GHz - 25dB / 5Ghz - 30dB
    • Antenna Gain: 2.4GHz - 10dBi / 5Ghz - 15dBi
    • Mounting: Wall/Pole (kits included)
    • Dimensions: 7.93 x 5.04 x 1.28"
