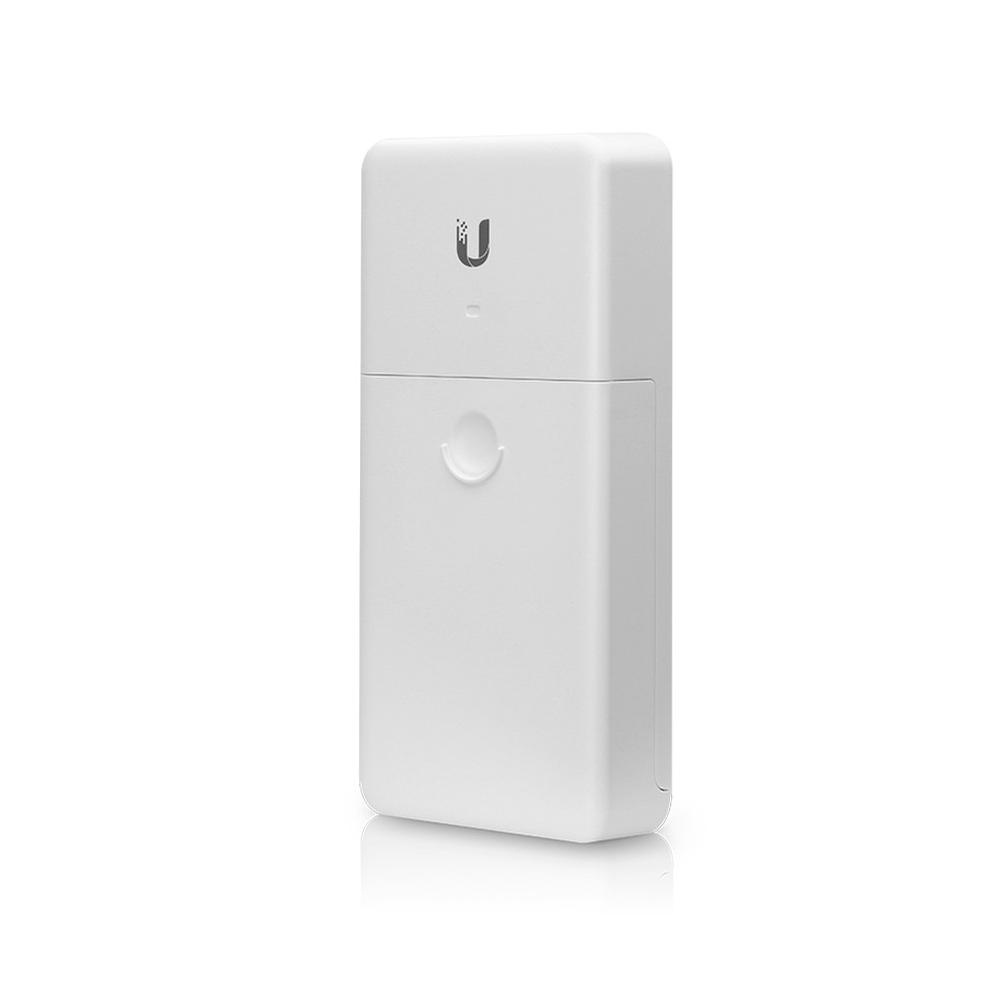

Ubiquiti Networks NanoSwitch N-SW Outdoor 4-Port PoE Passthrough Switch

N-SW

Ubiquiti
Ubiquiti Networks NanoSwitch N-SW Outdoor 4-Port PoE Passthrough Switch


Product Highlights
  • Ubiquiti Networks NanoSwitch N-SW Outdoor 4-Port PoE Passthrough Switch
  • The NanoSwitch is an outdoor 4-port Gigabit switch with PoE passthrough.
  • Simply providing 24V 2-pair input makes NanoSwitch an outdoor 4-port unmanaged switch 24V 2-pair output on three ports.
  • PoE In — RJ45 port supports 10/100/1000 Ethernet connections, and supports passive 24V, 2-pair PoE to power the switch.
  • PoE Out — RJ45 ports support 10/100/1000 Ethernet connections, and the three passive 24V, 2-pair PoE ports provide up to 24W PoE output.
  • Model#: N-SW

    Sku: IT1889.5556.104952



    MSRP: $49.00

    In Stock

    Your Price: $45.00




    Model: N-SW

    NanoSwitch Outdoor 4-Port PoE Passthrough Switch

    The NanoSwitch is an outdoor 4-port Gigabit switch with PoE passthrough.

    The Ubiquiti NanoSwitch is an unmanaged switch with four Gigabit Ethernet ports. For its total non-blocking line rate, the Ubiquiti NanoSwitch supports up to 4Gbps.



    •  Power Strip Simplicity for 24V Devices

    Simply providing 24V 2-pair input makes NanoSwitch an outdoor 4-port unmanaged switch with "always on" 24V 2-pair output on three ports.



    •  PoE Passthrough

    PoE In — RJ45 port supports 10/100/1000 Ethernet connections, and supports passive 24V, 2-pair PoE to power the switch.

    PoE Out — RJ45 ports support 10/100/1000 Ethernet connections, and the three passive 24V, 2-pair PoE ports provide up to 24W PoE output.



    • Designed for Outdoor Durability

    The NanoSwitch features an outdoor weatherproof form factor.
    Operating Temperature: -30 to 70° C (-22 to 158° F)

    • Dimensions: 196.4 x 93.5 x 32.4 mm (7.73 x 3.68 x 1.28")

    • Weight: 271 g (9.6 oz)

    • Enclosure Characteristics: White Polycarbonate

    • Total Non-Blocking Line Rate: 4 Gbps

    • Typical Power Consumption: 1.5W

    • Passive PoE Max. Wattage per Port: 24V, 2-Pair, 1A per Port (24W)

    • Total Passive PoE Max. Wattage: 24V, 2-Pair, 1A for 3 Ports (24W)

    • Power Method: Passive 24V, 2-Pair PoE In

    • Power Supply: POE-24-24W PoE Adapter (Not Included)

    • Passive PoE Voltage Range: 21.6 - 26.4V

    • LEDs: Speed/Link/Activity (All Ports)

    • Networking Interfaces: (4) 10/100/1000 Mbps RJ45 Ports

    • PoE Interfaces: Passive 24V, 2-Pair PoE In

    • ESD/EMP Protection: Air: ± 24 kV, Contact: ± 24 kV

    • Operating Temperature: -30 to 70° C (-22 to 158° F)

    • Operating Humidity: 5 to 95% Noncondensing

    • Shock and Vibration: ETSI300-019-1.4 Standard

    • Certifications CE, FCC, IC

    • 4 x Gigabit Ethernet Ports

    • 4 Gb/s Non-Blocking Line Rate

    • Durable Weatherproof Form Factor

    • Mounts to Pole or Wall
