UMA-D

Ubiquiti


Ubiquiti UniFi Mesh Antenna UMA-D Directional Dual-Band for UAP-AC-M UniFi AC Mesh AP


Model#: UMA-D

Sku: IT1878



MSRP: $99.99


Out of stock

Your Price: $99.99


Model: UMA-D

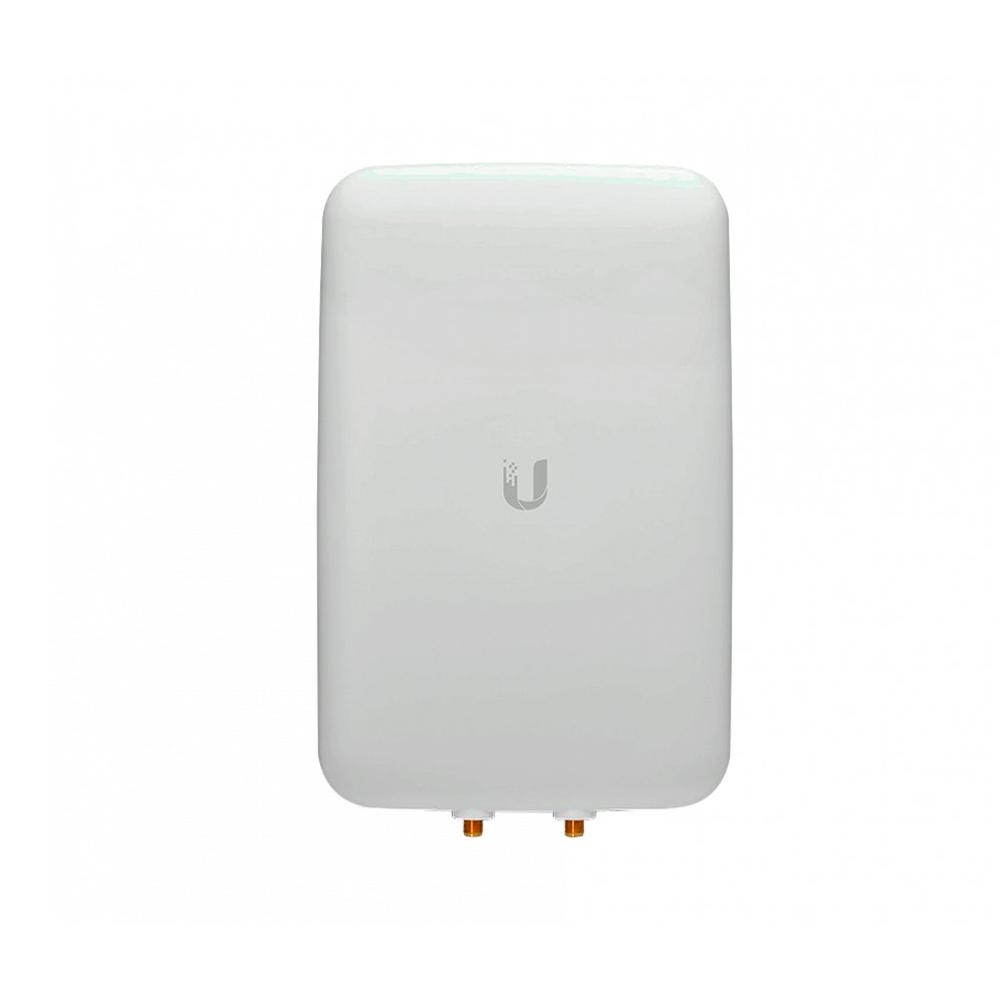

Ubiquiti Networks UMA-D

Directional Dual-Band Antenna for UAP-AC-M

The UniFi Antenna, model UMA-D, is an optional mesh antenna designed to work with the UniFi® AC Mesh AP, model UAP-AC-M. With dual-band support, the UMA-D expands range coverage and provides customized pattern shaping. It is available in single- and five-packs.

Antenna Features Optimized for 802.11ac, the UMA-D offers a high efficiency directional radiation pattern with dual polarity.

Weather-Resistant Enclosure Encased in UV-stabilized plastic, the UMA-D can be used indoors or outdoors.

Versatile Mounting The UMA-D has a ball joint mount designed for precise aiming and can be mounted on a pole or wall.

Compatibility The UMA-D is a connectorized antenna that is compatible with the UAP-AC-M.

Specifications UMA-D

Dimensions 201.3 x 128.0 x 32.5 mm (7.93 x 5.04 x 1.28")
Weight (with Mount) (without Mount) 480 g (16.93 oz) 400 g (14.11 oz)
Enclosure Outdoor UV Stabilized Plastic
RF Connections (2) RP-SMA
Supported Frequency Range 2.4 - 2.5 GHz, 5.1 - 5.9 GHz
HPOL Beamwidth 2.4 GHz 5 GHz 90° 45°
VPOL Beamwidth 2.4 GHz 5 GHz 90° 45°
Elevation Beamwidth 2.4 GHz 5 GHz 90° 45°
Maximum VSWR 2:1
Polarization Dual-Linear
Cross-Pol Isolation 2.4 GHz 5 GHz 25 dB 30 dB
Antenna Gain 2.4 GHz 5 GHz 10 dBi 15 dBi

Datasheet

PDF File Ubiquiti UniFi Mesh Antenna UMA-D Directional Dual-Band for UAP-AC-M UniFi AC Mesh AP
