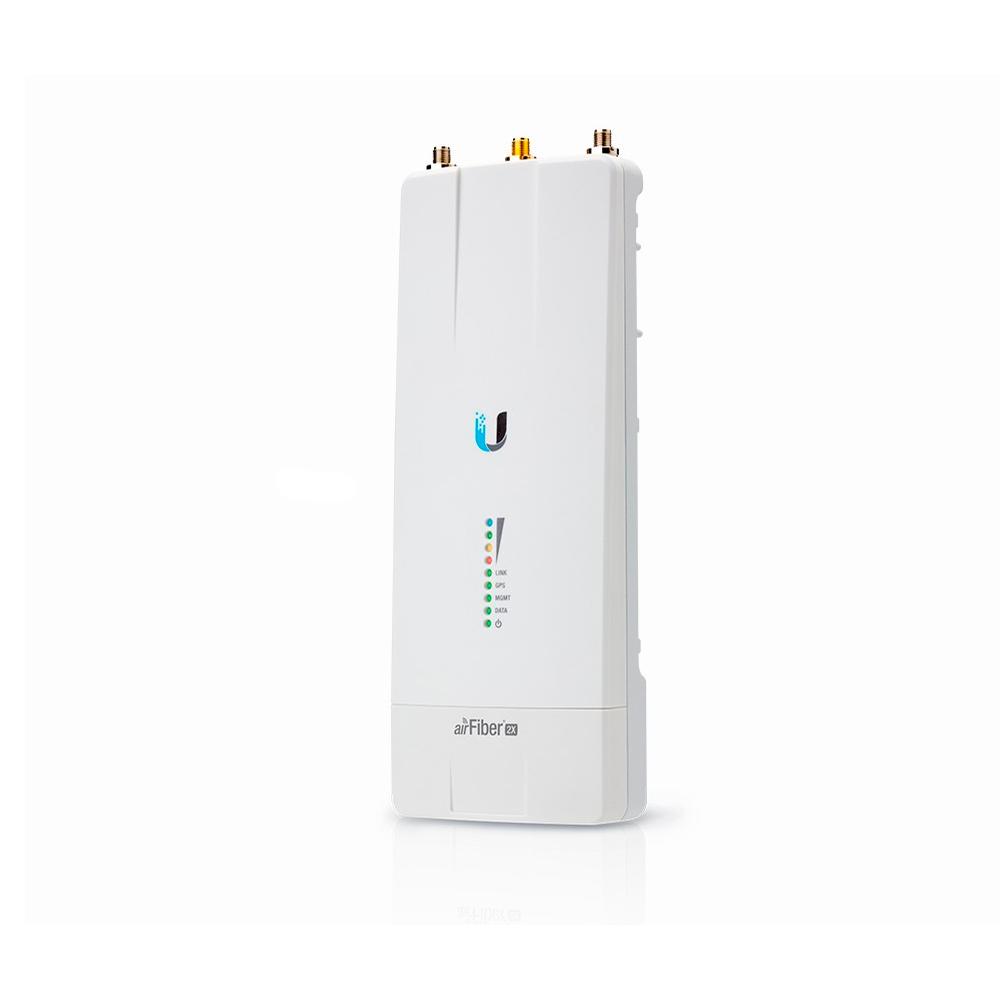

Ubiquiti Networks airFiber X AF-2X-US Carrier Backhaul Radio 2.4GHz PtP Point to Point

AF-2X-US

Ubiquiti
Ubiquiti Networks airFiber X AF-2X-US Carrier Backhaul Radio 2.4GHz PtP Point to Point 500Mbps


Product Highlights
  • Ubiquiti Networks airFiber X Point-to-Point
  • Carrier Backhaul Radio 2.4 GHz
  • Ubiquiti airFiber X AF-2X-US Carrier Backhaul Radio 2.4GHz PtP Point to Point 500Mbps
  • The airFiber® X features up to 17.1 Mbps/MHz of industry-leading spectral efficiency and uses proprietary Hybrid Division Duplexing technology to achieve the highest TDD throughput available for long-range, PtP links.
  • Ubiquiti’s INVICTUS custom silicon and proprietary radio architecture are designed specifically for long-distance, outdoor wireless applications.
  • Model#: AF-2X-US

    Sku: IT1871.5494.102792



    MSRP: $589.99

    Out of stock

    Your Price: $499.00


    Model: AF-2X-US

                                                            airFiber X

                                   Carrier Backhaul Radio

    The airFiber AF-2X 2 GHz Carrier Backhaul Radio from Ubiquiti Networks is designed for long-range, Point-to-Point (PtP) backhaul links. It features a high TDD throughput and Hybrid Division Duplexing (HDD) technology that helps the device achieve low latency. The airFiber 2X also allows users to customize backhaul links or upgrade existing PtP links.

    The airFiber AF-2X operates using the 2 GHz frequency band and features a range of 656,168' / 200,000m. Included with this device is a GPS antenna mount, an external GPS antenna, a metal strap, two cable ties, a 24V/1A airFiber PoE adapter with a mounting bracket, and a power cord.

    • Carrier Backhaul for the World

    Deploy the 2.4, 3, 4, 5 or 11 GHz model that meets your specific spectrum requirements, anywhere around the world. The airFiber X features multiple channel width options to suit your deployment needs – up to 11 different channel sizes available for the AF-2X or AF-3X.

    • Optimal Operation and Channel Configuration

    Channel width flexibility allows you to independently configure TX and RX channel frequencies and place them anywhere within the radio band to avoid local interference. You also have the ability to program different uplink and downlink duty cycles to support asymmetric traffic requirements.

    • Backhaul

    The 2.4 GHz frequency band is free to use, worldwide; and with its proprietary protocol, the AF-2X increases both range and delivered throughput in this popular band.

    • Low Latency with HDD Technology

    The airFiber X is designed to provide the highest TDD throughput and lowest latency available using proprietary Hybrid Division Duplexing (HDD) technology.

    • GPS Synchronization

    Precise GPS frame synchronization enables co-located airFiber X radios to transmit and receive data without interfering with each other, enabling better frequency reuse and increased network stability.

    Model: AF-2X-US

    • Operates using the 2 GHz Band
    • Range: up to 124 mi (200 km)
    • Up to 500+ Mbps Real Throughput
    • 2.4, 3, or 5 GHz (Full-Band Certification)
    • Ultra-Low Latency with HDD Technology
    • GPS Synchronization

    Networking Interfaces

    •  1 x 10/100/1000 Ethernet Port

    Management Port

    • 1 x 10/100 Ethernet Port

    System

    • Processor    INVICTUS IC
    • Maximum Throughput    525 Mbps
    • Maximum Range    656,168' / 200,000 m
    • Encryption    128-bit AES
    • Operating System    airOS F
    • Wireless Modes    Master/Slave
