LBE-5AC-Gen2-2PK-BD1

Ubiquiti

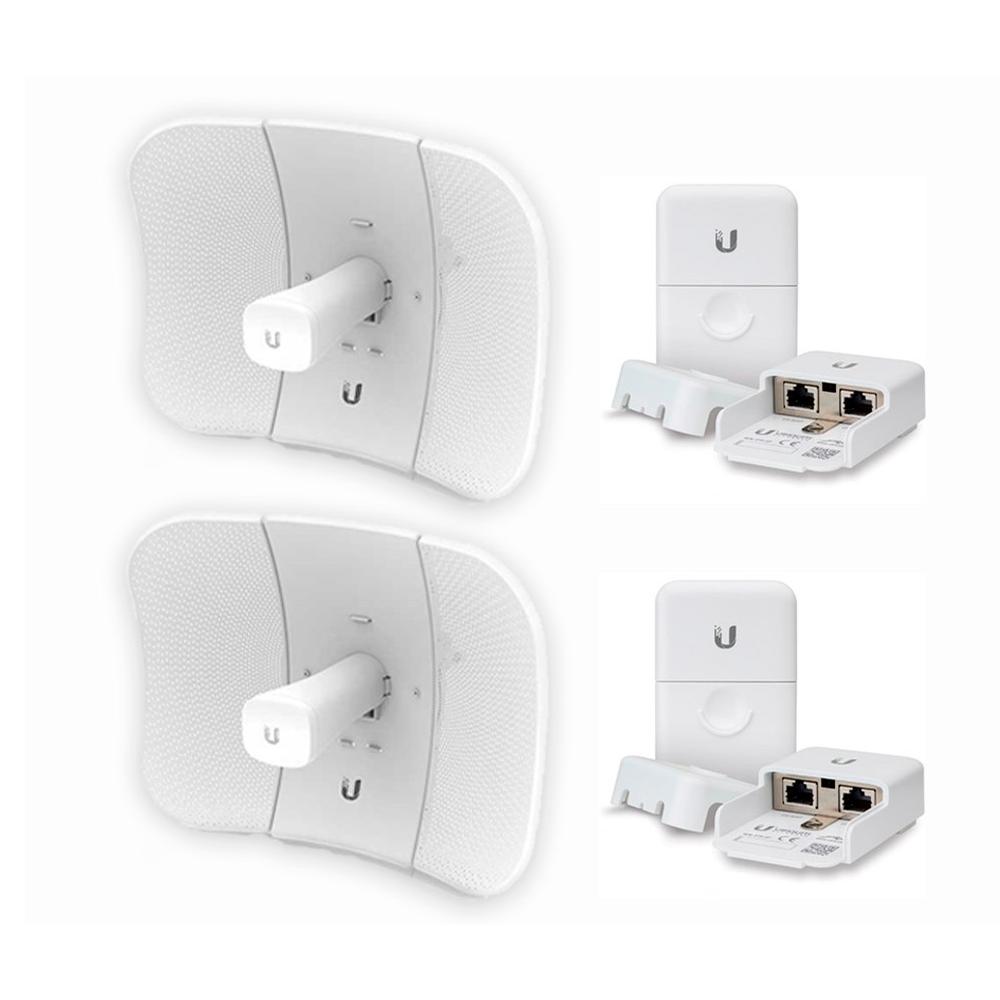

Ubiquiti LiteBeam ac LBE-5AC-Gen2 5GHz 23dBi 450Mbps 2Pack w/ Ethernet Surge Protector ETH-SP 2Pack


Product Highlights
  • Ubiquiti LiteBeam AC Gen2 LBE-5AC-Gen2 2X2 MIMO airMAX 5GHz 23dBi 450+ Mbps CPE (2-PACK)
  • The LiteBeam AC provides 23 dBi of gain for long-distance connectivity and uses a directional antenna pattern for improved noise immunity.
  • The LiteBeam AC us  is an ultra-lightweight 2x2 MIMO airMAX ac CPE device with incredi.ble range and disruptive pricing
  • Ethernet Surge Protector ETH-SP for Outdoor High-Speed Protects outdoor Ethernet devices (2-PACK)
  • Compatible with 10/100/1000 Mb/s networks

    • Model#: LBE-5AC-Gen2-2PK-BD1

    Sku: IT1866

    Out of stock

    Model: LBE-5AC-Gen2-US (2 Pack)

    The LiteBeam AC us  is an ultra-lightweight 2x2 MIMO airMAX ac CPE device with incredible range and disruptive pricing.

    The LiteBeam 5AC US from Ubiquiti Networks features a two-mount system that provides adjustment flexibility along both axes for versatile mounting options. The mounting system, couples with the built-in bubble level, enables quick and easy alignment. Ubiquiti Networks launches the latest generation of airMAX CPE (Customer Premises Equipment), the LiteBeam 5AC Gen 2, with dedicated Wi-Fi management.

    • High-Gain, Directional, 2x2 MIMO Antenna

    The LiteBeam AC provides 23 dBi of gain for long-distance connectivity and uses a directional antenna pattern for improved noise immunity.

    +

    Model: ETH-SP (2 Pack)

    The Ubiquiti Networks ETH-SP Ethernet Surge Protector is used for protecting outdoor Ethernet devices from damaging electrostatic discharge and surges. The installation of the ETH-SP with the airMAX devices provides an additional layer of protection to the network. The ETH-SP Protector is engineered to protect Power-over-Ethernet (PoE) or non-PoE devices with connection speeds of up to 1 Gb/s. It features 2 passive, surge-protected RJ45 connections that provide maximum equipment compatibility.

    • Easy plug & play installation
    • Protects outdoor Ethernet devices
    • Compatible with 10/100/1000 Mb/s networks

    Model: LBE-5AC-Gen2 (2 Pack)

    • Power Supply:

    24V, 0.3A Gigabit PoE Adapter (included)

    • Max. Power Consumption:

    7W

    • Operating Frequency:

    5150 - 5250 MHz

    • Gain:

    23dBi

    • Networking Interface:

    (1) 10/100/1000 Ethernet Port

    • Processor Specs:

    MIPS 74Kc

    • Memory:

    64 MB DDR2

    • Channel Sizes:

    PtP Mode: 10/20/30/40/50/60/80MHz / PtMP Mode: 10/20/30/40MHz

    • Wind Loading:

    275N @ 200km/h (61.8lbf @ 125mph)

    • Wind Survivability:

    200km/h (125mph)

    • Certifications:

    CE, FCC, IC

    +

    Model: ETH-SP (2 Pack)

    • Interface Connector

    2 x RJ45 female connector

    • ESD/EMP Protection

    Absorbing transient current with response to surge voltage from 100 V/s to 1 kV/μs

    • DC Voltage

    90 V @ 100 V/s (Spark-over)

    • Peak Impulse Current

    700 V @ 1 kV/μs

    • Discharge

    5 kA (maximum)
    0.5 kA (normal)

    • Insulation Resistance

    1 GΩ @ 50 V (maximum)

    • Capacitance

    1.0 pF @ 1 MHz (maximum)

    • Data Line Protection

    RJ45 10/100/1000 Ethernet

    • PoE

    IEEE 802.3af support

    • Shock and Vibration

    ETSI300-019-1.4 Standard certified

    • Operating Temperature

    -22 to 149°F (-30 to 65°C)

    • Operating Humidity

    10 to 90% non-condensing

    • Dimensions

    3.6 x 2.4 x 1.3" (9.1 x 6.1 x 3.2 cm)

    • Weight

    2.8 oz (80.0 g)
