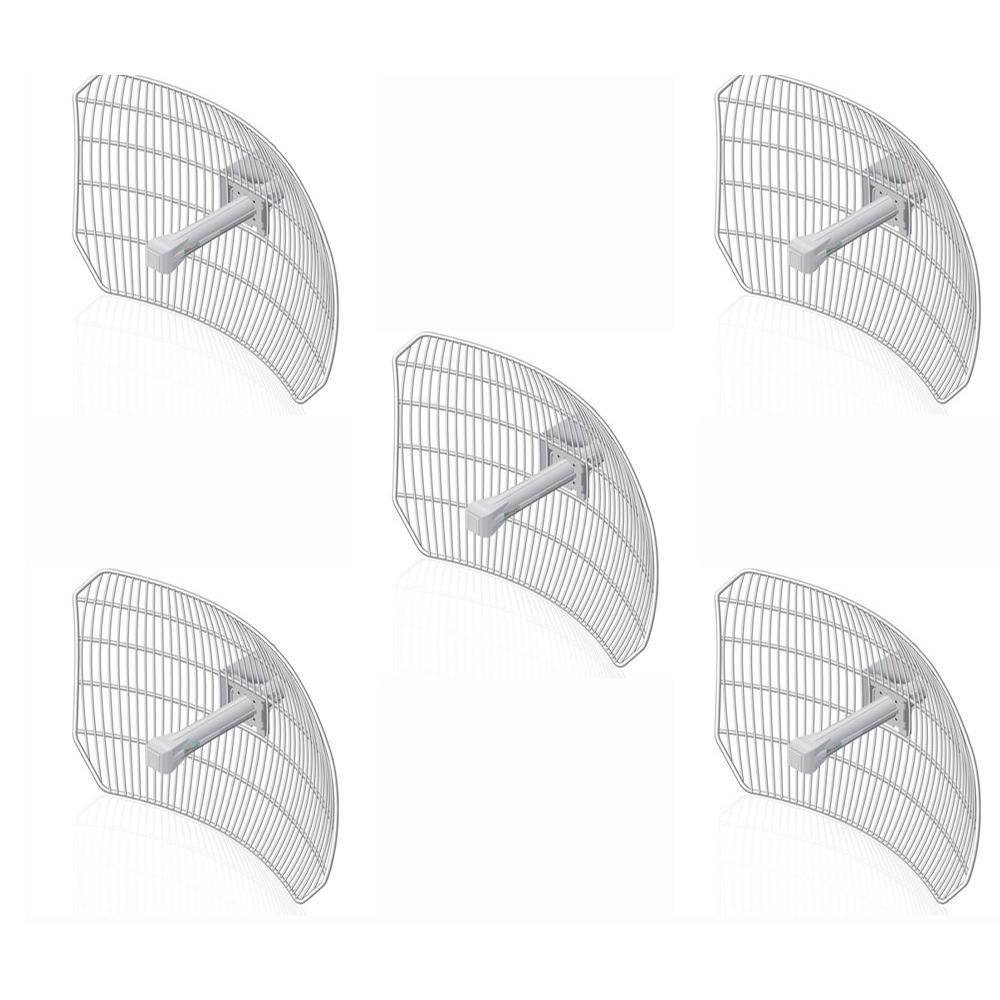

Ubiquiti airGrid M5 Antenna 5 GHz AG-HP-5G23-US 23dBi High-Performance Antenna +100 Mbps (5-PACK)


Ubiquiti airGrid M5 Antenna 5 GHz AG-HP-5G23-US 23dBi High-Performance Antenna +100 Mbps (5-PACK)

Product Highlights
  • Ubiquiti airGrid M5 AG-HP-5G23 US (Qnty: 5 ) HP 5 GHz High-Performance Integrated InnerFeed Antenna airMAX CPE
  • Featuring a grid reflector design and single-polarity, narrow-beamwidth performance, the airGrid M is ideal for applications requiring low-cost and lightweight CPE devices.
  • Designed to be a highly directive CPE device, the airGrid M performs at a range of up to 25+ km
  • Ubiquiti’s InnerFeed technology seamlessly combines the radio and reflector feed for maximum RF performance.
  • Ubiquiti’s versatile airOS firmware technology enables high-performance, outdoor multi-point networking.
  • Model#: AG-HP-5G23-USx5

    Sku: IT1865.5402.100747

    MSRP: $329.99

    Out of stock

    Your Price: $275.00

    Model: AG-HP-5G23-US (5 Units)

    Ubiquiti airGrid M5 Wireless Broadband Antenna

    The airGrid M5 HP is a high powered airMAX airGrid, manufactured by Ubiquiti Networks. Operating on 5GHz with 23dBi gain, it's a great all in one CPE solution.Deploy outdoor wireless broadband service with the AG-HP-5G23 airGrid M Wireless Broadband Antenna from Ubiquiti Networks. This package includes five AG-HP-5G23 antennas. Boasting a range up to 18.6 miles and up to 100 Mb/s of data throughput, the 23 dBi antenna comes equipped with a Fast Ethernet port that supports PoE (Power over Ethernet). The antenna is powered by a 560 MHz Atheros MIPS 74Kc, 64MB of DDR2 RAM and 8MB of flash memory.

    • Inner Feed Technology

    Utilizing inner feed technology, the new airGrid M Series represents the evolution of outdoor broadband wireless devices. Complete antenna and radio system integration provides revolutionary cost/performance solutions to the Worldwide Broadband Industry.

    • Breakthrough Wireless Performance

    100+Mbps of real outdoor throughput and up to 30km+ range. airGrid products utilize Ubiquiti's revolutionary airMAX TDMA protocol enabling scalable, carrier-class PtMP network performance. Additionally, airControl application allows operators to centrally manage 100's of devices.

    Product Specifications:

    • Gain: 23dBI
    • Processor Specs: Atheros MIPS 74Kc, 560MHz
    • Memory Information: 64MB DDR2, 8MB Flash
    • Networking Interface: (1) 10/100 Ethernet Port
    • Wireless Approvals: FCC Part 15.247, IC RS210, CE
    • RoHS Compliance: Yes
    • Enclosure Characteristics: Outdoor UV Stabilized Plastic
    • Mounting Kit: Pole Mounting Kit (included)
    • Max. Power Consumption: 3W
    • Power Supply: 24V, 0.5A PoE Adapter (included)
    • Power Method: Passive Power over Ethernet (Pairs 4,5+; 7,8 Return)
    • Operating Temperature: -40 to 75°C (-22 to 167°F)
    • Operating Humidity: 5 to 95% non-condensing
    • Shock and Vibration: ETSI300-019-1.4
    • ETSI Specifications: EN 302 326 DN2
    • Dimensions: 370 x 270 x 260mm (14.57 x 10.63 x 10.24")
    • Weight (mount included): 1452g (3.201lbs)
    • Wind Survability: 200km/h (125mph)
    • Wind Loading: 58N @ 200km/h (13lbf @ 125mph)
    • Operating Frequency: 5170 - 5875MHz
    • Max. VSWR: 1.5:1
