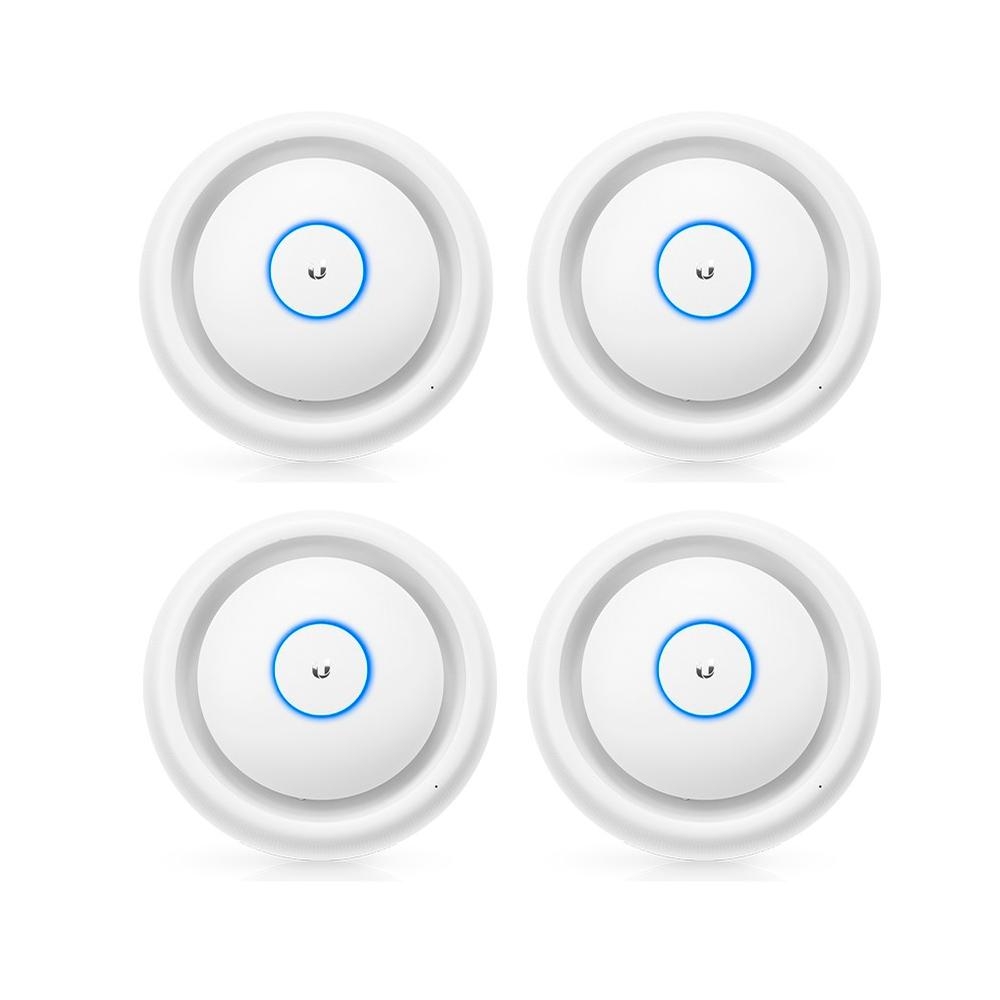

Ubiquiti Networks UniFi AP AC EDUCATION UAP-AC-EDU 802.11ac Dual-Radio AP 3x3 MIMO - 200 Concurrents (4-Pack)

UAP-AC-EDU-4

Ubiquiti
Ubiquiti Networks UniFi AP AC EDUCATION UAP-AC-EDU 802.11ac Dual-Radio AP 3x3 MIMO - 200 Concurrents (4-Pack) -- International Version


Product Highlights
  • Ubiquiti Networks UniFi AP AC EDUCATION UAP-AC-EDU 802.11ac Dual-Radio AP 3x3 MIMO - 200 Concurrents (4-Pack)
  • Featuring the latest Wi-Fi 802.11ac, 3x3 MIMO technology, the UniFi AC EDU AP conveniently integrates Wi-Fi and public address capabilities, making it ideal for campus-wide deployment.
  • The UniFi AC EDU AP supports simultaneous dual-band, 3x3 MIMO technology in the 2.4 and 5 GHz radio bands for up to 1750 Mbps.
  • The UniFi AC EDU AP provides high-quality sound with accurate voice reproduction.
  • (This product is not designed to operate in the United States)
  • Model#: UAP-AC-EDU-4

    Sku: IT1863.5393.100471



    MSRP: $1,435.20

    In Stock

    Your Price: $1,435.20




    Model: UAP-AC-EDU-4

    UniFi Access Point AC EDU 802.11ac Dual-Radio AP with Public Address System

    The UAP-AC-EDU UniFi Access Point Enterprise Wi-Fi System from Ubiquiti Networks is a scalable enterprise access point solution designed to be easily deployed and managed. It supports the 802.11ac Wi-Fi standard with speeds of up to 1300 Mb/s in the 5 GHz radio band, and up to 450 Mb/s in the 2.4 GHz radio band. The Wi-Fi system offers simultaneous dual band operation with 3 x 3 MIMO technology for each band. It has a range of up to 400' and one Gigabit Ethernet port. This UniFi Access Point (AP) has a sleek design and can be easily mounted to a ceiling tile or wall using the included mounting hardware. An integrated loudspeaker provides the ability to conduct public announcements via Wi-Fi throughout large campus environments.

    The Wi-Fi system includes UniFi Controller software that can be installed on a PC, Mac, or Linux machine within the network, and is easily accessible through a standard Web browser. Using the UniFi Controller software, an Enterprise Wi-Fi network can be quickly configured and administered, without any special training. Real-time status, automatic UAP device detection, map loading, and advanced security options are all seamlessly integrated in the system.

    • UniFied Wi-Fi and Public Address System Integration

    Make announcements over Wi-Fi — no separate hardware needed.

    The UniFi EDU mobile app is now available in the App Store for iOS and Google Play Store for Android.



    • Advanced Acoustic Performance

    The UniFi AC EDU AP provides high-quality sound with accurate voice reproduction.



    • Dual-Radio 3x3 MIMO

    The UniFi AC EDU AP supports simultaneous dual-band, 3x3 MIMO technology in the 2.4 and 5 GHz radio bands for up to 1750 Mbps.

    • Mobile Announcement App

    Broadcast announcements with clarity from your iOS or Android-based device using our mobile app.

    Technical Specifications

    • Networking Interface: (1) 10/100/1000 Ethernet Ports
    • Antennas: (3) Dual-Band Antennas, 3 dBi Each
    • Max TX Power: 2.4GHz: 22 dBm - 5GHz: 22 dBm
    • Buttons: Reset
    • Wifi Standards: 802.11 a/b/g/n/ac
    • Power Method: Passive Power over Ethernet (48V), 803.2at Supported (Supported Voltage Range: 44 to 57VDC) ** PoE Not Included**
    • Maximum Power Consumption: 20W
    • BSSID: Up to Four Per Radio
    • Power Save: Supported
    • Wireless Security: WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
    • Certifications: CE, FCC, IC
    • Mounting: Wall and Ceiling
    • Operating Temperature: -10 to 70°C (14 to 158°F)
    • Operating Humidity: 5 to 95% non-condensing


    Advanced Traffic Management

    • VLAN: 802.1Q
    • Advanced QoS: Per-User Rate Limiting
    • Guest Traffic Isolation: Supported
    • WMM: Voice, Video, Best Effort and Background
    • Concurrent Clients: 200+


    Loudspeaker Acoustics

    • Sensitivity: 94 dB (1W/1 m)
    • Maximum SPL: 103 dB @ 1 m
    • Frequency Response: 100 - 20,000 Hz
    • Type: Two-Way Speaker with Second-Order HP Filter


    Microphone Acoustics

    • Sensitivity: -40 dB
    • Polar Pattern: Omni
    • Frequency Response: 50 - 20,000 Hz
