Ubiquiti Networks PS-5AC-US 5GHz PrismStation AC US VERSION

Product Highlights
  • (1) 10/100/1000 Ethernet Port
  • Polarization: Dual-Linear
  • 24V 1A Gigabit PoE Adapter (Included)
  • Pole-Mount (Kit Included)
  • Model#: PS-5AC-US

    Sku: IT1855

    MSRP: $309.99

    In Stock

    Your Price: $309.99

    Model: PS-5AC-US

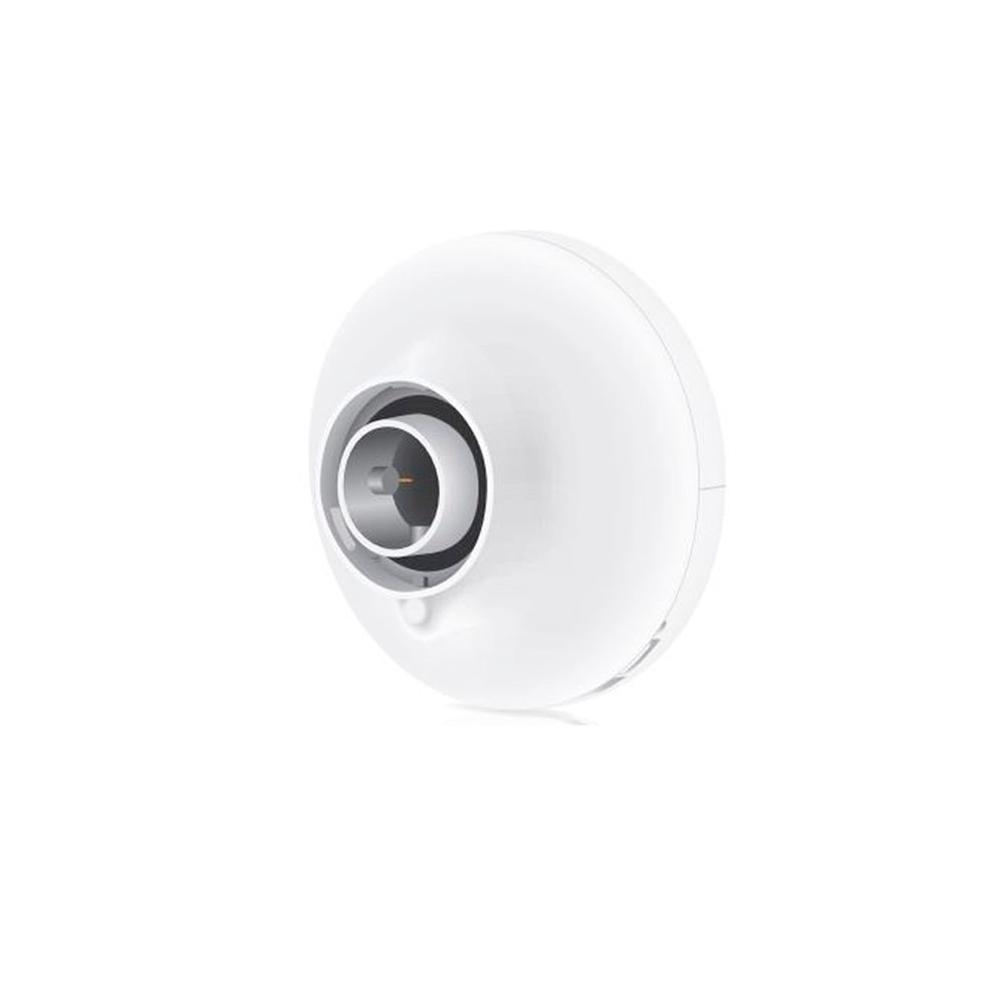

    Shielded airMAX 14dBi 5GHz PrismStation ac Radio Base with airPrism® Technology

    With a die-cast aluminum base and interchangeable antenna, the PrismStationTMAC, brings increased performance to your network using technology that isolates beam communications between your devices. Utilizing Ubiquiti’s advanced airMAX® ac processor, the PrismStationTM delivers throughput speeds up to 500+ Mbps and signal ranges up to 5+ km (3+ miles).

    Built to Fight Noise With Prism Active RF Filter

    The Ubiquiti R&D team designed airPrism filtering as a robust solution for tower co-location interference. Requiring no communication between radios – and functioning despite noise from other vendors’ radios (unlike GPS synchronization) – airPrism enables greater system capacity and overall throughput by further reducing out-of-band energy.

    Modular Design

    The antenna horn is interchangeable and helps with beam-shaping for specific deployment and environment needs. The PrismStationTM AC also gets maximum gain out of the smallest footprint.

    Beam Performance Perfected

    The PrismStationTM can use a variety of horn antenna sectors designed for increased co-location performance without sacrificing gain. Its unique beam performance and superb co-location characteristics allow for a higher density of sectors than traditional sector technology.

    GPS Synchronization

    PrismStationTM AC supports GPS Sync for faster, more scalable, carrier-class networks, with 90% higher throughout than competing solutions.

    Enhanced Co-Location

    Asymmetrical horn antenna options (60° and 90°) have naturally attenuated side lobes and extremely low back radiation, and they offer industry-leading front-to-back ratio and low side lobe radiation. Symmetrical horn antennas (30° and 45°, the default) are ideal for cluster sector installations with high co-location requirements.

    Improved Noise Immunity

    PrismStationTM AC blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency.

    High MAC Efficiency

    High MAC Efficiency provides ±80% PHY RATE throughput.

    Management Wi-Fi Radio

    The PrismStationTM AC integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.

    Advanced Software

    Sporting an all-new design for improved usability, airOS® 8 is the revolutionary operating system for Ubiquiti® airMAX®ac products.

    Specifications PS-5AC

    Dimensions Mounting Hardware Only 155 x 155 x 104 mm (5.16 x 5.16 x 4.09") 83 x 117 x 69 mm (3.27 x 4.61 x 2.72")
    Weight Mounting Hardware Only 770 g (1.70 lb) 790 g (1.74 lb)
    Networking Interface (1) 10/100/1000 Ethernet Port
    RF Connector (1) GPS*
    LED Power
    Max. Power Consumption 10W
    Power Supply 24V, 1A Gigabit PoE Adapter (Included)
    Power Method Passive PoE (Pairs 4, 5+; 7, 8 Return)
    Supported Voltage Range 20 to 26VDC
    Processor Specs MIPS 74 Kc
    Memory 128 MB DDR2 SDRAM, 16 M NOR FLASH
    Max. VSWR 2:1
    Polarization Dual-Linear
    Wind Loading 31 N @ 200 km/h (7 lbf @ 125 mph)
    Wind Survivability 200 km/h (125 mph)
    Operating Temperature -40 to 70° C (-40 to 158° F)
    Operating Humidity 5 to 95% Noncondensingv
    Mounting Pole-Mount (Kit Included)
    ESD/EMP Protection ± 24 kV Contact/Air
    Certifications FCC, IC, CE
