Ubiquiti Networks RP-5AC-GEN2-US 5GHz Rocket ac Gen2 Prism US

Product Highlights
  • Custom Ubiquiti® airMAX AC Processor
  • Proprietary airPrism® Active RF Filtering Technology
  • 5 GHz Wide Band Operating Frequency
  • GPS for Superior Co-Location Performance
  • Point-to-MultiPoint Links to airMAX ac Clients
  • Model#: RP-5AC-Gen2-US

    Sku: IT1853

    MSRP: $247.99

    In Stock

    Your Price: $247.99

    Model: RP-5AC-Gen2-US

    US Version

    Ubiquiti Networks 5GHz Rocket ac Gen2 airPrism metal

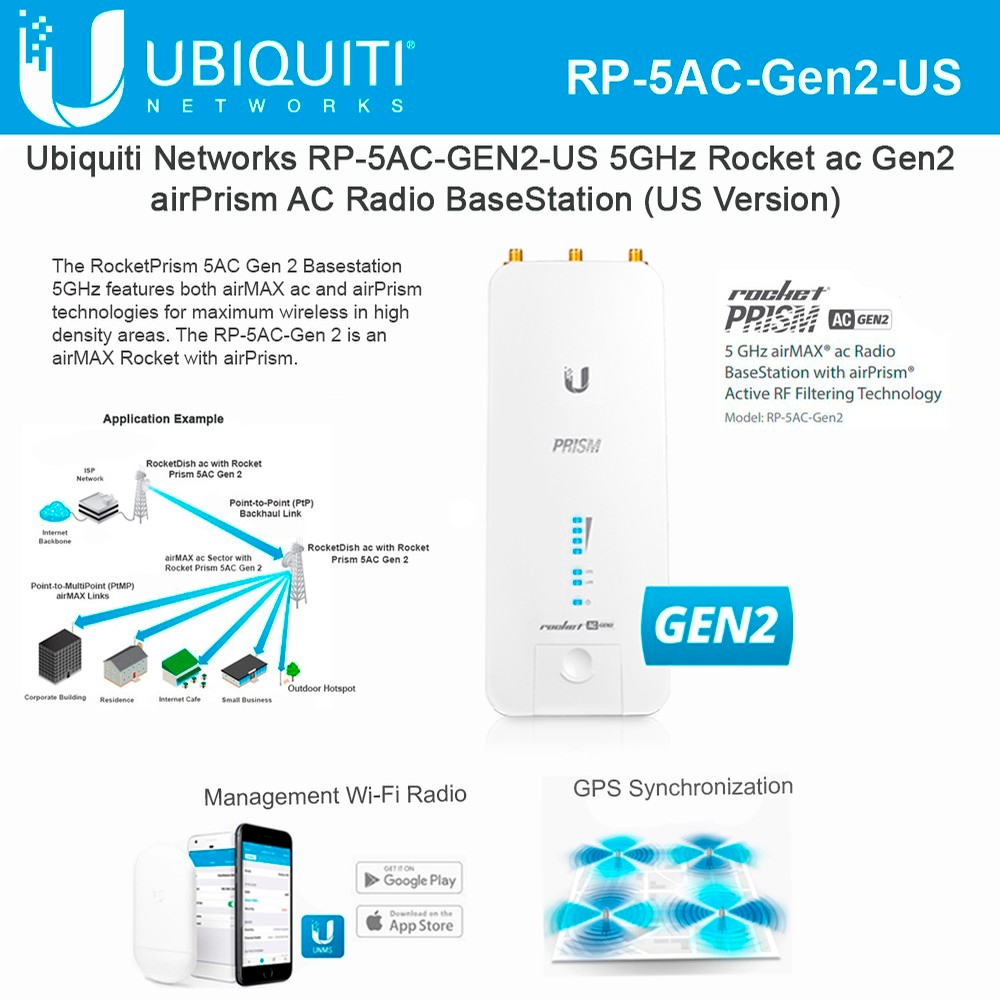

    The Rocket® Prism 5AC covers the full 5 GHz radio band and incorporates both airMAX ac and airPrism technologies for maximum performance of wireless links in high-density areas.

    Management Wi-Fi Radio

    The Rocket® Prism 5AC integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.

    Improved Surge Protection

    The Rocket® Prism 5AC features enhanced protection against ESD events.

    Revolutionary Filtering Technology

    Ubiquiti’s patented airPrism technology provides breakthrough radio selectivity in unlicensed wireless band performance. airPrism technology isolates signals within the operating channel to increase capacity and throughput in co-location deployments.

    Designed for High Performance

    The Rocket® Prism 5AC features EMI-shielded metal housing, GPS, airPrism circuitry, and the airView® real-time spectrum analyzer to deliver maximum spectral efficiency/throughput.

    Full-Band 5 GHz Coverage

    The Rocket® Prism 5AC delivers complete coverage of the 5 GHz spectrum with a single radio.

    Now with airOS®8

    airOS®8 provides powerful features, including airMAX® ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.

    Specifications RP-5AC-GEN2

    Dimensions 88 x 40 x 230 mm (3.47 x 1.58 x 9.06")
    Weight 400 g (14.11 oz)
    Networking Interface (1) 10/100/1000 Ethernet Port
    RF Connectors (2) RP-SMA (Waterproof ), (1) GPS* (Waterproof)
    LEDs (4) Signal Strength, GPS*, Power, LAN
    Enclosure Die-Cast Aluminum with White Powder Coating
    Max. Power Consumption 9.5W
    Power Supply 24V, 1A Gigabit PoE Adapter (Included)
    Power Method Passive PoE (Pairs 4, 5+; 7, 8 Return)
    Processor Specs Atheros MIPS 74Kc
    Memory 128 MB DDR2 SDRAM
    Supported Voltage Range 18-26VDC
    Signal Strength LEDs Software-Adjustable to Correspond to Custom RSSI Levels
    Channel Sizes PtP Mode 10/20/30/40/50/60/80 MHz PtMP Mode 10/20/30/40 MHz
    ESD/EMP Protection ± 24 kV Contact / Air for Ethernet
    Operating Temperature -40 to 80° C (-40 to 176° F)
    Operating Humidity 5 to 95% Noncondensing
    RoHS Compliance Yes
    Shock and Vibration ETSI300-019-1.4
    Modes Access Point, Station
    Services Web Server, SNMP, SSH Server, Telnet , Ping Watchdog, DHCP, NAT, Bridging, Routing
    Utilities Antenna Alignment Tool, Discovery Utility, Site Survey, Ping, Traceroute, Speed Test
    Distance Adjustment Dynamic Ack and Ackless Mode
    Power Adjustment Software Adjustable UI or CLI
    Security WPA2 AES Only
    QoS Supports Packet Level Classification WMM and User Customer Level: High/Medium/Low
    Statistical Reporting Up Time, Packet Errors, Data Rates, Wireless Distance, Ethernet Link Rate
    Other Remote Reset Support, Software Enabled/Disabled, VLAN Support, 256QAM, GPS*, TX Filter
    Ubiquiti Specific Features 30/50/60 MHz Channels, airMAX ac Mode, Traffic Shaping with Burst Support, Discovery Protocol, Frequency Band Offset, Ackless Mode
    Certifications CE, FCC, IC


    PDF File Ubiquiti Networks RP-5AC-GEN2-US 5GHz Rocket ac Gen2 Prism US
