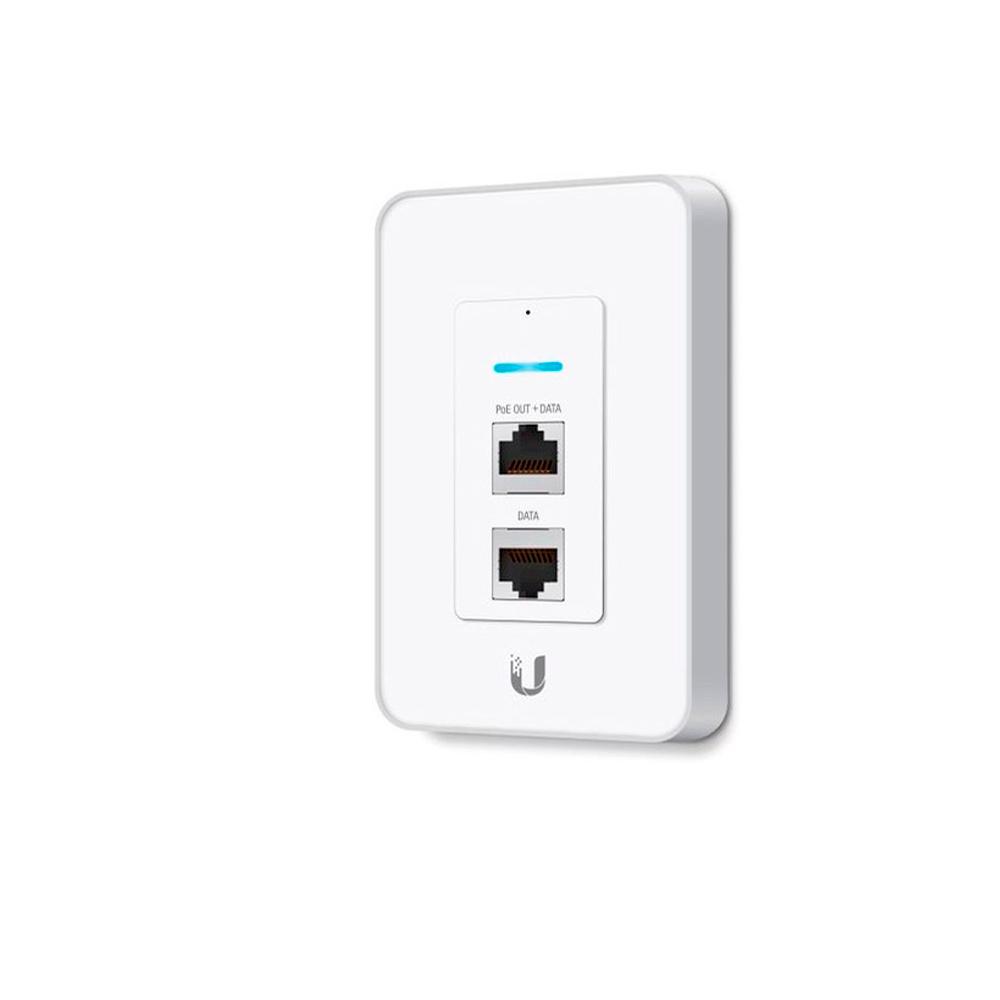

Ubiquiti Networks UniFi In-Wall Wi-Fi Access Point 2.4GHz UAP-IW-US 802.11n 150Mbps

UAP-IW-US

Ubiquiti
Ubiquiti Networks UniFi In-Wall Wi-Fi Access Point 2.4GHz UAP-IW-US 802.11n 150Mbps


Product Highlights
  • Ubiquiti Networks UniFi In-Wall Wireless Access Point 2.4GHz UAP-IW-5-US 802.11n
  • The UAP-IW-US is ideal for retrofitting an existing in-wall wired Ethernet jack to a wireless access point. It
  • It also provides one RJ45 data port and one PoE port to connect devices like a VoIP phone. The UAP-IW is capable of speeds of up to 150Mbps with a range of up to 25m (82ft).
  • Instant Deployment: Transform any existing Ethernet outlet into a versatile UniFi AP
  • Power over Ethernet: The UniFi In-Wall Wi-Fi AP works with a UniFi Switch or any third-party, 802.3af PoE switch
  • Model#: UAP-IW-US

    Sku: IT1849.5326.984777



    MSRP: $59.00

    Out of stock

    Your Price: $59.00


    Model: UAP-IW-US

    The UAP-IW-US is ideal for retrofitting an existing in-wall wired Ethernet jack to a wireless access point. It also provides one RJ45 data port and one PoE port to connect devices like a VoIP phone. The UAP-IW is capable of speeds of up to 150Mbps with a range of up to 25m (82ft).

    • Instant Deployment: Transform any existing Ethernet outlet into a versatile UniFi AP
    • Easy Installation: Upgrade any single-gang Ethernet outlet to UniFi In-Wall Wi-Fi AP
    • Power over Ethernet: The UniFi In-Wall Wi-Fi AP works with a UniFi Switch or any third-party, 802.3af PoE switch
    • Versatile data and PoE output: An integrated PoE pass-through port conveniently connects and powers a security camera, VoIP phone, or high-end AP

    • Networking Interface: (3) 10/100 Ethernet Ports
    • Antenna Gain: 1dBi
    • Max TX Power: 17dBm
    • Max Data Speed: 150Mbps
    • Max Range: 82'(25m)
    • Buttons: Reset
    • Wifi Standards: 802.11 b/g/n
    • Power Method: PoE 802.3af
    • Maximum Power Consumption: 6W
    • VLAN: 802.1Q
    • Concurrent Clients: 100+
    • BSSID: Up to Four Per Radio
    • Power Save: Supported
    • Wireless Security: WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
    • Certifications: CE, FCC, IC
    • Mounting: 1-Gang Electrical Wall Box (Not included)
    • Operating Temperature: -10 to 70°C (14 to 158°F)
    • Operating Humidity: 5 to 95% non-condensing

    Advanced Traffic Management
    • VLAN: 802.1Q
    • Advanced QoS: Per-User Rate Limiting
    • Guest Traffic Isolation: Supported
    • WMM: Voice, Video, Best Effort, and Background
    • Concurrent Clients: 100+
