Ubiquiti Networks PrismStation AC PS-5AC Shielded airMAX ac BaseStation with airPrism Technology

PS-5AC

Ubiquiti
Ubiquiti Networks PrismStation AC PS-5AC Shielded airMAX ac BaseStation with airPrism Technology

Model#: PS-5AC

Sku: IT1845.5311.979879



MSRP: $319.00

In Stock

Your Price: $319.00




PS-5AC

The PrismStation directs RF energy in a tighter beamwidth and filters noise.

Ubiquiti PrismStation 5AC directs RF energy in a tighter beamwidth using an interchangeable isolation antenna horn, available in both symmetrical and asymmetrical designs. With the focus in one direction, the PrismStation 5AC blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency.

With flexible sectorization for optional antenna beamwidths, the horn antenna is interchangeable and improves beam-shaping for specific deployment and environment needs. The PrismStation 5AC uses horn antenna sectors designed for increased co-location performance without sacrificing gain.



Product Specifications
• Dimensions: 174 x 174 x 184mm (6.85 x 6.85 x 7.24")
    Without Horn Antenna: 155 x 155 x 104mm (5.16 x 5.16 x 4.09")
    Mounting Hardware Only: 83 x 117 x 69mm (3.27 x 4.61 x 2.72")
• Weight: 1.07kg (2.36lbs)
    Without Horn Antenna: 0.77kg (1.70lbs)
    Mounting Hardware Only: 0.79kg (1.74lbs)
• Networking Interface: (1) 10/100/1000 Ethernet Port
• RF Connector: (1) GPS
• LED: (1) Power
• Max. Power Consumption: 10W
• Power Supply: 24V, 1A Gigabit PoE Adapter (Included)
• Power Method: Passive PoE (Pairs 4,5+;7,8 Return)
• Supported Voltage Range: 20 to 26VDC
• Processor Specs: MIPS 74 Kc
• Memory: DDR2 128MB
• Max. VSWR: 2:1
• Polarization: Dual-Linear
• Wind Loading: 31N @ 200km/h (7lbf @ 125mph)
• Wind Survivability: 200km/h (125mph)
• Operating Temperature: -40 to 70°C (-40 to 158°F)
• Operating Humidity: 5 to 95% non-condensing
• Mounting: Pole-Mount (Kit Included)
• ESD/EMP Protection: ±24kV Contact/Air
• Certifications: FCC, IC, CE
• Operating Frequencies:
    2412 - 2462MHz
    USA U-NII-1: 5150 - 5250MHz
    USA U-NII-3: 5725 - 5850MHz

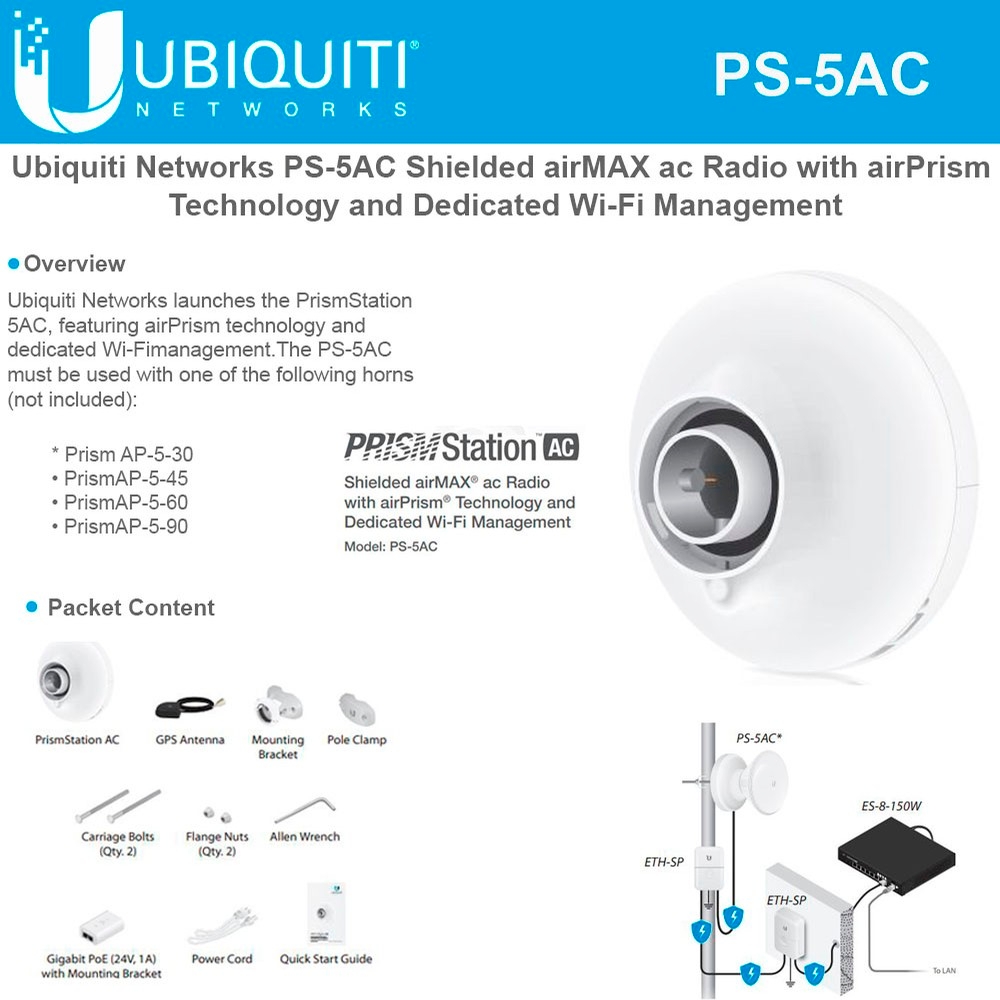

Product Includes:
• (1) PrismStation AC
• (1) GPS Antenna
• (1) Metal Strap
• (1) Mounting Bracket
• (1) Pole Clamp
• (2) Carriage Bolts
• (2) Flange Nuts
• (1) Allen wrench
• (1) Gigabit PoE (24V, 1A) with Mounting Bracket
• (1) Power Cord
• (1) Quick Start Guide
