R2AC-US+AM-2G16-90

Ubiquiti

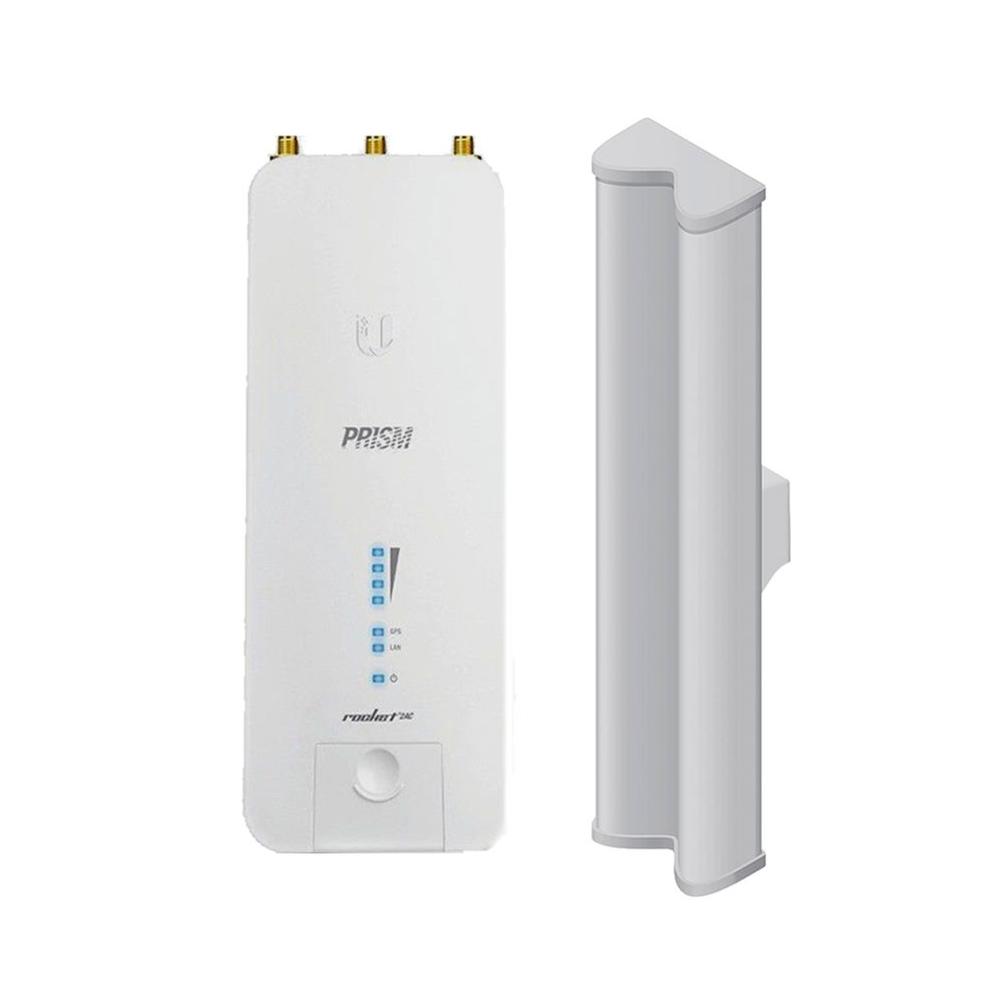

Ubiquiti airMAX Rocket 2AC Prism 2.4GHz R2AC-PRISM radio w/ 2.4GHz 16dBi Sector Antenna AM-2G16-90


Model#: R2AC-US+AM-2G16-90

Sku: IT1820



MSRP: $499.95


Out of stock

R2AC (US VERSION)

Ubiquiti Networks has designed R2AC airMAX ac radios with high performance and ease of installation in mind. The Rocket 2AC Prism features both airMAX ac and airPrism technologies for maximum wireless performance in high-density areas.

2.4 GHz Coverage Deploy the Rocket 2AC Prism anywhere in the world. It delivers complete coverage of the 2.4 GHz spectrum with a single radio. The Rocket 2AC Prism allows for flexibility in configuring channel bandwidths.

The Rocket 2AC Prism with airMAX ac antennas designed for optimal performance:

  • PtP backhaul RocketDish ac Antenna
  • PtMP links airMAX ac Sector

+

AM-2G16-90

The AM-2G16-90 AirMAX 2.4 GHz 2x2 MIMO Sector Antenna from Ubiquiti Networks provides networking flexibility and convenience by letting you create a customized base station with an optional RocketM radio. This antenna operates under the 2.4 GHz frequency and offers a gain of 16 dBi. It delivers 2x2 MIMO performance and supports airMAX technology, which uses a Time Division Multiple Access protocol to send and receive data at pre-designated time slots. Included along with the antenna are a pole mount, RocketM bracket, and weatherproof RF jumpers to make your base station building experience easier.

  • Seamlessly integrates with RocketM radios
  • Remarkable cross-polarization isolation
  • Intelligent QoS: Priority is given to voice/video for seamless streaming
  • Scalability: High capacity and scalability
  • Long Distance: Capable of high-speed, carrier-class links
  • Up to 100 airMAX clients can be connected to an airMAX sector antenna

R2AC US

  • Networking Interface (1) 10/100/1000 Ethernet Port
  • Atheros MIPS 74Kc, 720 MHz
  • Memory: 128 MB DDR2 SDRAM, 16 MB NOR Flash
  • Frequency: 2.4 GHz

+

AM-2G16-90

  • 2.4 GHz Operating Frequency
  • 16 dBi Gain
  • 90deg
  • For Outdoor Use
  • Compatible with Rocket M BaseStations
  • Frequency Range 2.3-2.7GHz
  • Gain 16.0-17.0dBi
  • Polarization Dual Linear
  • Cross-pol Isolation 28dB min.
  • Max VSWR 1.5:1
  • Hpol Beamwidth (6dB) 91 deg.
  • Vpol Beamwidth (6dB) 90 deg.
  • Elevation Beamwidth 9 deg.
  • Electrical Downtilt 4 deg.
  • ETSI Specification EN 302 326 DN2
  • Dimensions 700x145x79mm
  • Weight 3.9 kg
  • Windloading 160 mph
